Panel
|
23.8" / IPS
|
Pixel Pitch (mm)
|
0.2745 (H) × 0.2745 (V)
|
Effective Viewing Area (mm)
|
527.04 (H) × 296.46 (V)
|
Brightness (typical)
|
250 cd/m²
|
Contrast Ratio
|
1000 : 1 (typical) 20 Million : 1 (DCR)
|
Response Time
|
1 ms (MPRT)
|
Viewing Angle
|
178° (H) / 178° (V) (CR > 10)
|
Color Gamut
|
NTSC 90% (CIE1976) / sRGB 100% (CIE1931)
|
Optimum Resolution
|
1920 × 1080 @ 100Hz – HDMI; 1920 × 1080 @ 75Hz – VGA
|
Display Colors
|
16.7 Million
|

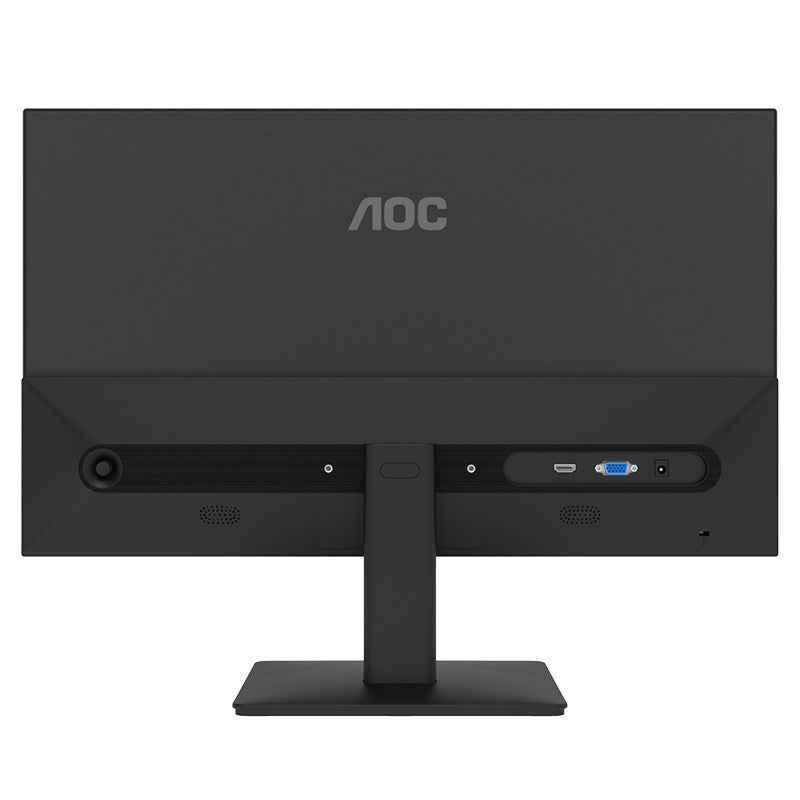

Signal Input
|
VGA × 1, HDMI 1.4 × 1
|
HDCP Version
|
HDMI : 1.4
|
Power Supply
|
External 12VDC, 2.5A
|
Power Consumption (typical)
|
24W
|

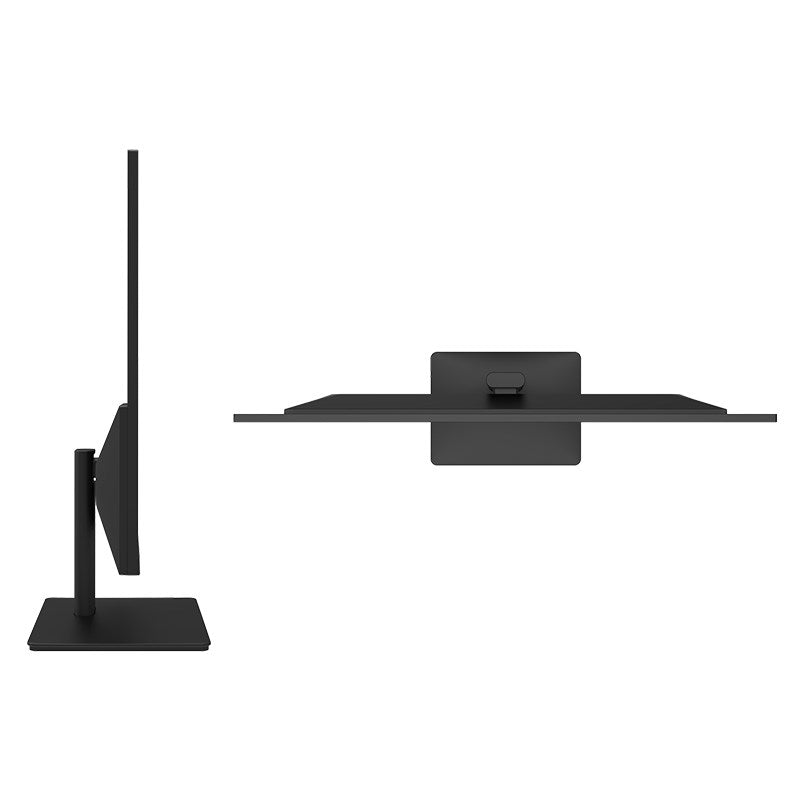

Adjustable Stand
|
Tilt : —5° ~ 15°
|
Product without Stand (mm)
|
321.3 (H) × 540.9 (W) × 35.1 (D)
|
Product with Stand (mm)
|
418.2 (H) × 540.9 (W) × 168 (D)
|
Packaging (mm)
|
387 (H) × 598 (W) × 100 (D)
|
Product without Stand (kg)
|
2.49
|
Product with Stand (kg)
|
2.82
|
Product with Packaging (kg)
|
3.92
|
Cabinet Color
|
Black
|
Regulatory Approvals
|
CE / RCM / MEPS / BSMI / RoHS
|
