Network Standard
|
WiFi 6 (802.11ax)
|
|
WiFi 7 (802.11be)
|
|
IEEE 802.11a
|
|
IEEE 802.11b
|
|
IEEE 802.11g
|
|
IEEE 802.11n
|
|
IEEE 802.11ac
|
|
IPv4
|
|
IPv6
|
Product Segment
|
BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
|
WiFi Data Rate
|
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
|
|
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
|
|
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
|
|
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
|
Antenna
|
External antenna x 8
|
Transmit / Receive
|
2.4GHz 4x4
|
|
5GHz-1 4x4
|
|
5GHz-2 4x4
|
|
6GHz 4x4
|

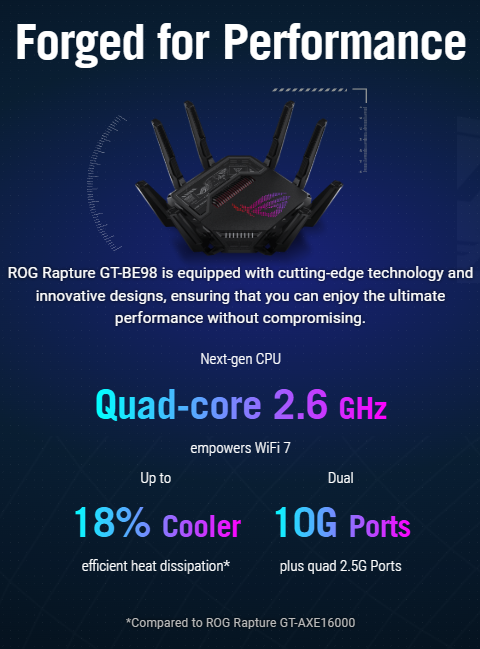

Processor
|
2.6GHz quad-core processor
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
|
|
Beamforming: standard-based and universal
|
|
4096-QAM high data rate
|
|
20/40/80/160/320 MHz bandwidth
|
Operating Frequency
|
2.4 GHz / 5 GHz / 6 GHz
|
Operating Mode
|
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
|

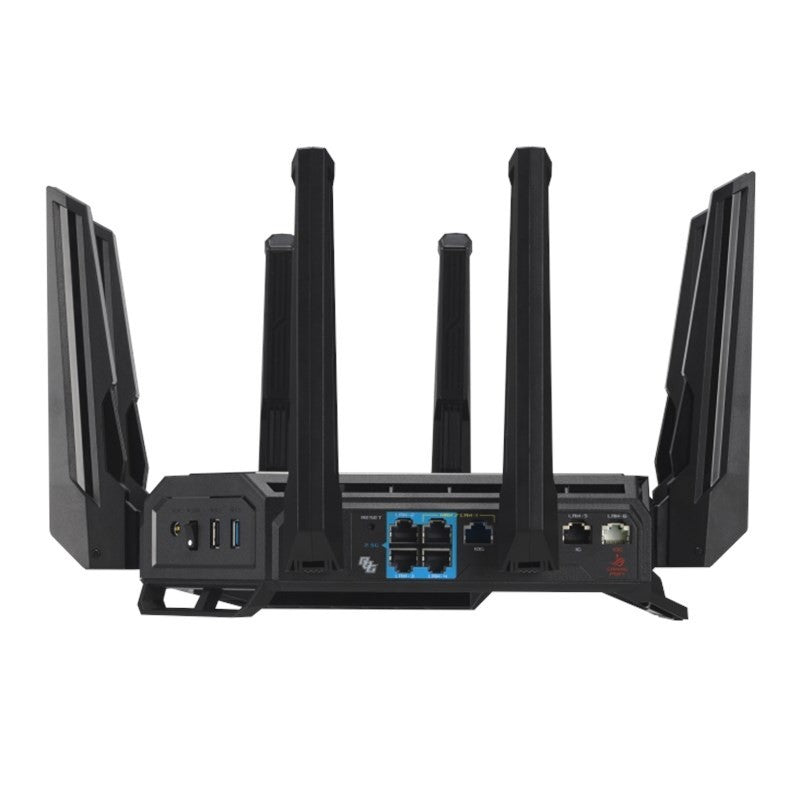

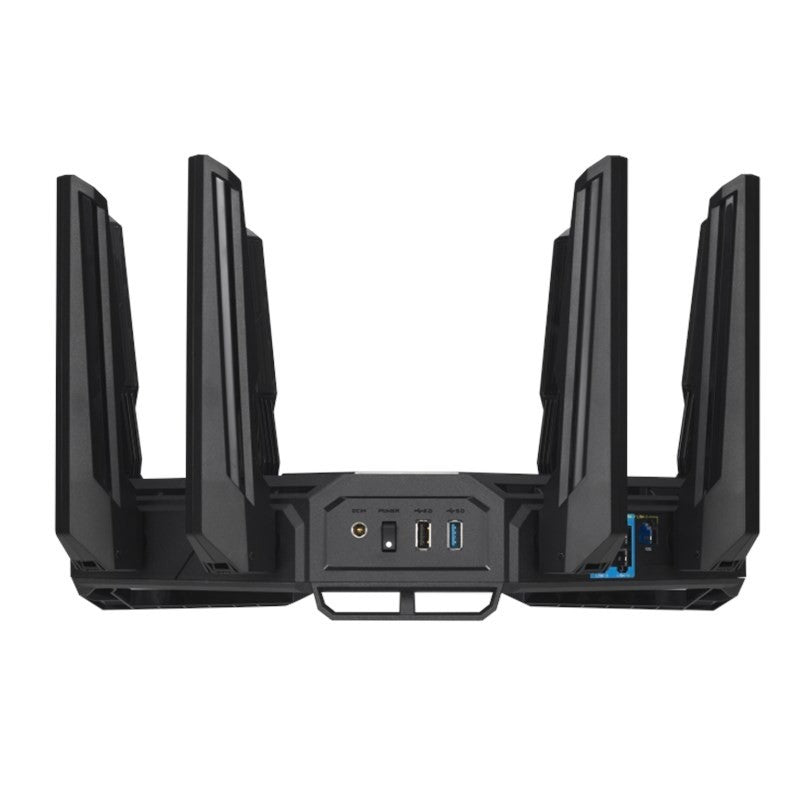

I/O Ports
|
1 x 10Gbps for WAN/LAN
|
|
1 x 2.5Gbps for WAN/LAN
|
|
1 x 10Gbps for LAN
|
|
3 x 2.5Gbps for LAN
|
|
1 x RJ45 10/100/1000Mbps for LAN
|
|
1 x USB 3.2 Gen1
|
|
1 x USB 2.0
|
Buttons
|
WPS Button, Reset Button, Power Switch, LED control Button
|
LED Indicator
|
WAN(Internet) x1
|
|
10G LAN x1
|
|
1G/2.5G LAN x1
|
|
6GHz x1
|
|
5GHz-1 x 1
|
|
5GHz-2 x 1
|
|
2.4GHz x1
|
|
Power x1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
|
|
DC Output : 19.5 V with max. 3.33 A current
|
Product Weight (g)
|
2000 g
|
Product Dimensions
|
350.41 x 350.41 x 220.6mm
|
AiMesh
|
AiMesh
|
|
Primary AiMesh Router
|
|
AiMesh Node
|
Game
|
Game Boost / Acceleration
|
|
WTFast
|
|
ROG_First
|
|
OpenNAT (Game Profile)
|
|
Gaming Port
|
Parental Control
|
Allow you to block access to unwanted websites and apps.
|
|
Parental Control Customized Internet Schedule
|
|
Maximum Parental Control profile : 64
|
|
Maximum Parental Control content filter rule : 64
|
Guest Network
|
The Guest Network provides Internet connection for guests but restricts access to your local network.
|
|
Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
|
|
Guest Network Connection time limit
|
|
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
|
VPN
|
Instant Guard
|
|
VPN Client L2TP
|
|
VPN Client Open VPN
|
|
VPN Client PPTP
|
|
VPN Client WireGuard
|
|
VPN Server IPSec
|
|
VPN Server Open VPN
|
|
VPN Server PPTP
|
|
VPN Server WireGuard
|
|
VPN Fusion
|
WAN
|
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
|
|
Dual WAN
|
|
3G / 4G LTE Dongle
|
|
4G / 5G Auto Mobile Tethering
|
|
Port Forwarding
|
|
Maximum Port Forwarding Rule : 64
|
|
Port Triggering
|
|
Maximum Port Triggering Rule : 32
|
|
DMZ
|
|
DDNS
|
|
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
LAN
|
DHCP Server
|
|
IPTV
|
|
LAN Link Aggregation
|
|
Manually Assign IP Address
|
|
Maximum Manually Assign IP Address Rule : 128
|
|
Wake on LAN (WOL)
|
Administration
|
Configuration Backup and Restore
|
|
Diagnosis Tools
|
|
Feedback System
|
|
System Log
|
|
New Device Connect Notification
|
|
Login Captcha
|
|
Connection Diagnosis
|
|
Auto Firmware Update
|
