Brand
|
Asus
|
Color
|
Black
|
Network Standard
|
Wi-Fi 6E (802.11ax)
|
|
Wi-Fi 6 (802.11ax)
|
|
Backwards compatible with 802.11a/b/g/n/ac Wi-Fi
|
Product Segment
|
AXE16000 ultimate AX/AXE performance
|
AX Technology
|
Yes
|
Data Rate
|
2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
|
|
5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
|
5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
|
6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
Antenna
|
External antenna x 8 (non-detachable) Internal antenna x 4
|
Transmit/Receive
|
2.4 GHz 4 x 4
|
|
5 GHz-1 4 x 4
|
|
5 GHz-2 4 x 4
|
|
6 GHz 4 x 4
|
Processor
|
2.0GHz quad-core processor
|
Memory
|
256MB NAND flash and 2GB DDR4 RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth
|
Operating Frequency
|
Quad-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2 / 6 GHz
|

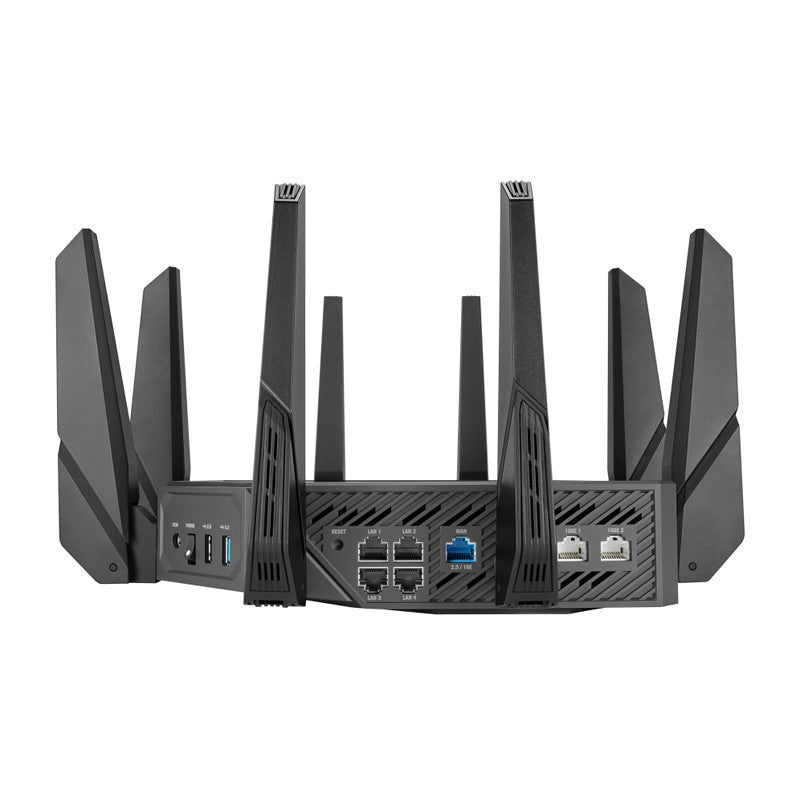

Ports
|
1 x 2.5 Gigabit WAN Port 2 x 10 Gigabit WAN/LAN Ports 4 x Gigabit LAN Ports 1 x USB 3.2 Gen 1 Port 1 x USB 2.0 Port
|
Button
|
WPS Button, LED Button, Reset Button, Power Switch
|
LED Indicator
|
Power x 1 2.4G x 1 5GHz-1 x 1 5GHz-2 x 1 6G x 1 10GE Port x 1 LAN x 1 WAN x 1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A current ； 19.5 V with max. 3.33 A current
|
Package Content
|

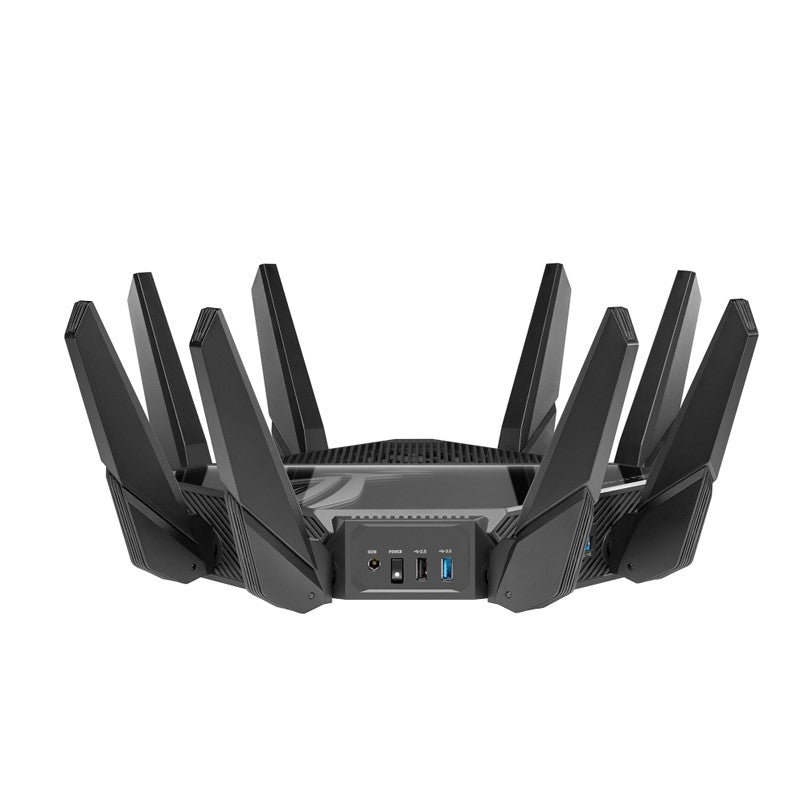

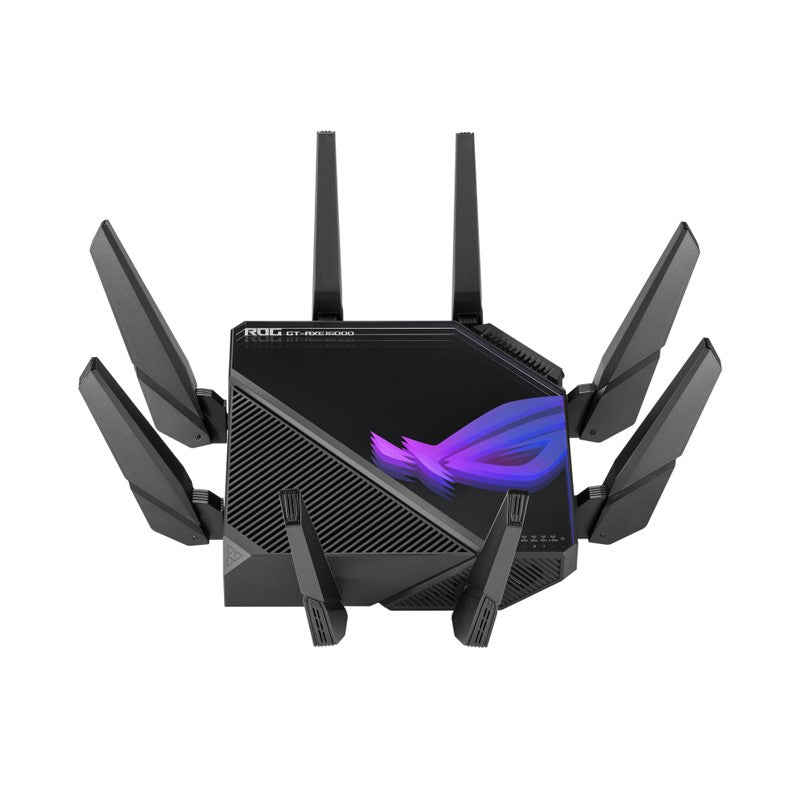

GT-AXE16000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card
|
Product Weight
|
2425 g
|
AiMesh
|
AiMesh
|
|
Primary AiMesh router
|
|
AiMesh node
|
Router APP
|
ASUS Router APP
|
Game
|
Game Boost/acceleration
|
|
Game Radar
|
|
WTFast
|
|
ROG_First
|
|
OpenNAT (Game Profile)
|
|
|
Alexa
|
Support Alexa skill
|
AiProtection
|
AiProtection Pro
|
|
Router Security Assessment
|
|
Malicious site blocking
|
|
Two-Way IPS
|
|
Infected Device Prevention and Blocking
|
Parental Control
|
Parental Control
|
|
Parental Control Customized Internet schedule
|
|
Maximum Parental Control profile : 64
|
|
Maximum Parental Control content filter rule : 64
|
Traffic Control
|
Adaptive QoS
|
|
Bandwidth Monitor
|
|
Bandwidth limiter
|
|
Maximum Bandwidth limiter rule : 32
|
|
Traditional QoS
|
|
Traffic Monitor
|
|
Real-time traffic monitor
|
|
Wired Traffic Monitor
|
|
Wireless Traffic Monitor
|
|
Traffic Analyzer
|
|
Traffic analysis period : Daily, Weekly, Monthly
|
|
Website history
|
Wireless
|
IPv6
|
|
MU-MIMO
|
|
WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System & OWE
|
|
UTF-8 SSID
|
|
Guest Network
|
|
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3, 6 GHz x 3
|
|
Guest Network Connection time limit
|
|
Guest Network Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
|
|
WPS
|
|
Wi-Fi MAC address filter
|
|
Maximum MAC filters : 64
|
|
Wireless scheduler
|
|
Airtime fairness
|
|
RADIUS Server
|
|
Universal beamforming
|
WAN
|
Explicit beamforming
|
|
Internet connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
|
|
Dual WAN
|
|
WAN Aggregation
|
|
3G/4G LTE dongle
|
|
Android tethering
|
|
Port forwarding
|
|
Maximum port forwarding rule : 64
|
|
Port triggering
|
|
Maximum port triggering rule : 32
|
|
DMZ
|
|
DDNS
|
|
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
|
|
Let's Encrypt
|
LAN
|
DHCP Server
|
|
IGMP snooping
|
|
IPTV
|
|
LAN Link Aggregation
|
|
Manually assign IP address
|
|
Maximum manually assign IP address rule : 128
|
VPN
|
VPN Client L2TP
|
|
VPN Client OVPN
|
|
VPN Client PPTP
|
|
VPN Server IPSec
|
|
VPN Server OVPN
|
|
VPN Server PPTP
|
|
VPN Fusion
|
USB Application
|
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
|
|
HDD hibernation
|
|
Safely Remove disk
|
|
AiCloud
|
|
Download master
|
|
AiDisk
|
|
Media Server
|
|
Time Machine
|
|
Samba Server
|
|
FTP Server
|
|
Shared Folder privileges
|
Administration
|
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
|
|
Operating system : ASUSWRT
|
|
Free OS upgrade
|
|
Firewall
|
|
Maximum Firewall keyword filter : 64
|
|
Maximum Firewall network service filter : 32
|
|
Maximum Firewall URL filter : 64
|
|
Wake on LAN (WOL)
|
|
SSH
|
|
Configuration backup and restore
|
|
Diagnosis tools
|
|
Feedback system
|
|
System log
|
