Model Name
|
GS-AX5400
|
Network Standard
|
IEEE 802.11a
|
|
IEEE 802.11b
|
|
IEEE 802.11g
|
|
IEEE 802.11n
|
|
IEEE 802.11ac
|
|
IEEE 802.11ax
|
|
IPv4
|
|
IPv6
|
Product Segment
|
AX5400 ultimate AX performance : 4804 Mbps+ 574 Mbps
|
WiFi Data Rate
|
2.4GHz N: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 500Mbps
|
|
2.4GHz AX: 2x2 (Tx/Rx) 1024 QAM 20/40MHz, up to 574Mbps
|
|
5GHz AC: 4x4 (Tx/Rx) 1024 QAM 20/40/80MHz, up to 2167Mbps
|
|
5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
|
Antenna
|

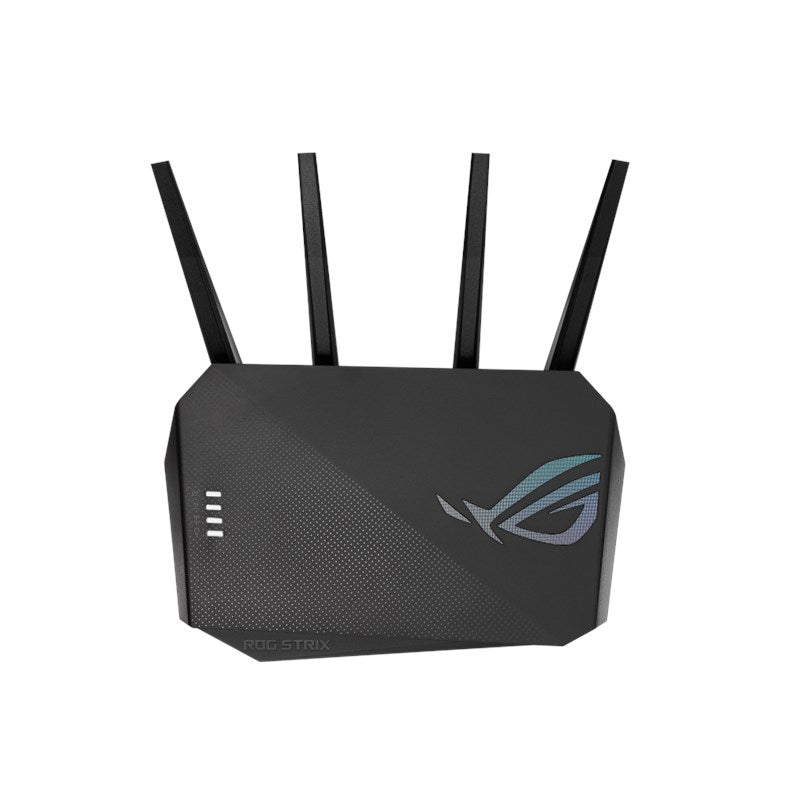

External antenna x 4
|
Transmit / Receive
|
2.4GHz 2x2
|
|
5GHz 4x4
|
Processor
|
1.5 GHz tri-core processor
|
Memory
|
256 MB Flash
|
|
512 MB RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
|
|
Beamforming: standard-based and universal
|
|
1024-QAM high data rate
|
|
20/40/80/160 MHz bandwidth
|
Operating Frequency
|
2.4G Hz / 5 GHz
|
Operating Mode
|
Wireless router mode
|
|
Access point mode
|
|
Media bridge mode
|
|
Repeater mode
|
|
AiMesh node mode
|

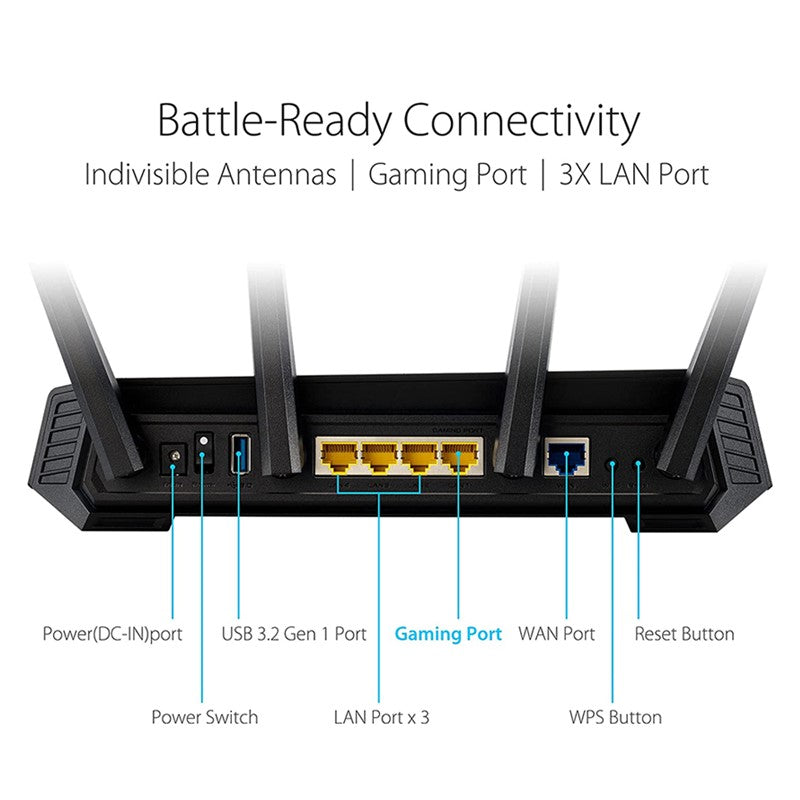

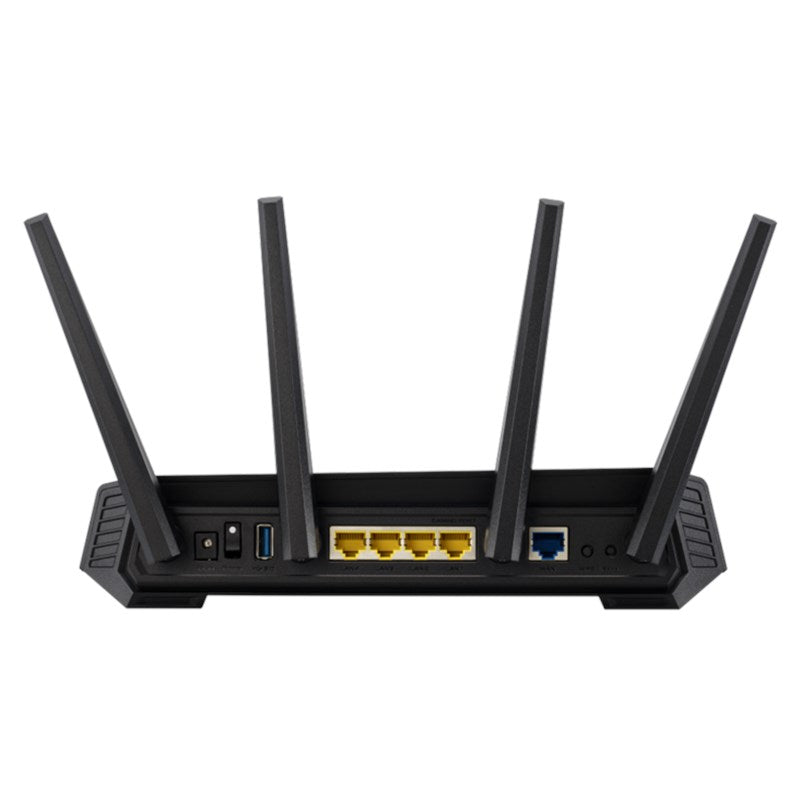

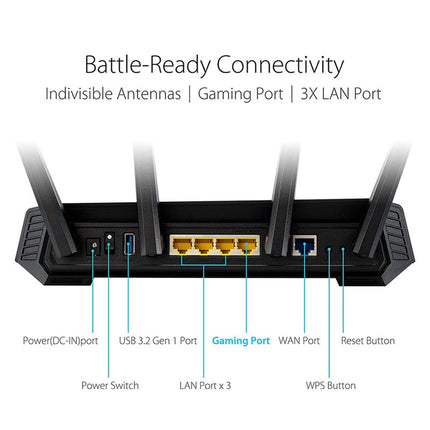

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x 1
|
|
RJ45 for Gigabits BaseT for LAN x 4
|
|
USB 3.2 Gen 1 x 1
|
Buttons
|
WPS Button
|
|
Reset Button
|
|
Power Switch
|
LED Indicator
|
Power x 1
|
|
2.4G x 1
|
|
5G x 1
|
|
WAN x 1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
|
|
DC Output : 19 V with max. 1.75 A current
|
Product Weight
|
701.3 g
|
Product Dimensions
|
268 x 180 x 166mm
|
