Network Standard
|
IEEE 802.11a
|
|
IEEE 802.11b
|
|
IEEE 802.11g
|
|
Wi-Fi 4 (802.11n)
|
|
Wi-Fi 5 (802.11ac)
|
|
Wi-Fi 6 (802.11ax)
|
|
IPv4
|
|
IPv6
|
Product Segment
|
AX1800 ultimate AX performance : 1201 Mbps+ 574 Mbps
|
Wi-Fi Data Rate
|
802.11a : up to 54 Mbps
|
|
802.11b : up to 11 Mbps
|
|
802.11g : up to 54 Mbps
|
|
Wi-Fi 4 (802.11n) : up to 300 Mbps
|
|
Wi-Fi 5 (802.11ac) : up to 867 Mbps
|
|
Wi-Fi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
|
|
Wi-Fi 6 (802.11ax) (5GHz) : up to 1201 Mbps
|
Antenna
|
External antenna x 4
|
Transmit / Receive
|
2.4GHz 2x2
|
|
5GHz 2x2
|
Processor
|
1.3GHz dual-core processor
|
Memory
|
128 MB Flash 256 MB RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80 MHz bandwidth
|
Operating Frequency
|
2.4GHz / 5GHz
|
Operating Mode
|
Access Point, AiMesh Node, Repeater, Router
|

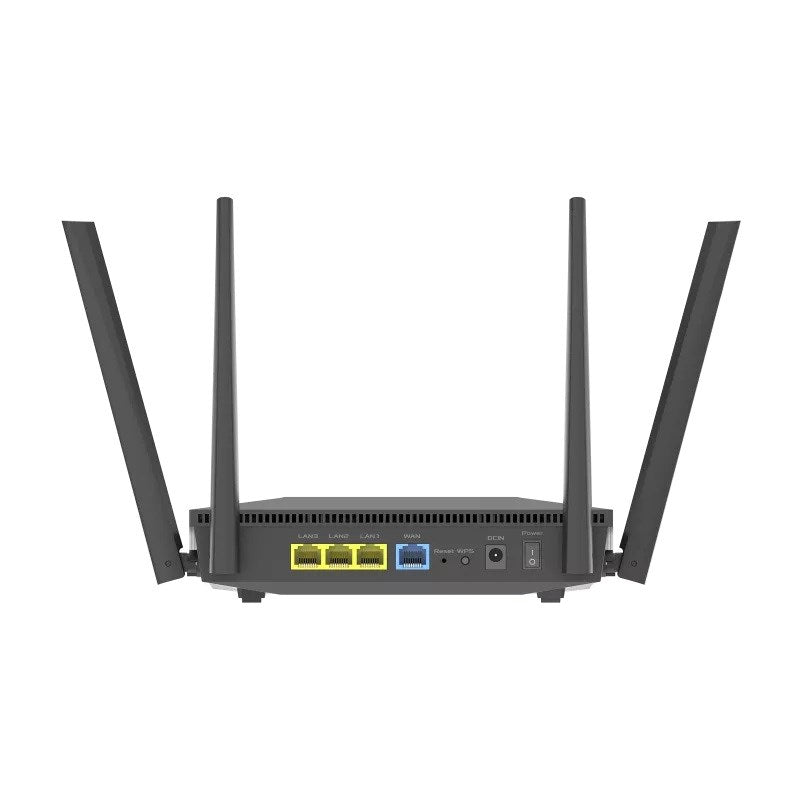

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
|
Buttons
|
WPS Button, Reset Button, Power Switch
|
LED Indicator
|
Power x 1 WAN x 1 LAN x 3 2.4G x 1 5G x 1 WPS x 1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz) DC Output : 12 V with max. 1 A current
|
Product Weight
|
298 g
|
Product Dimensions
|
192 x 126.3 x 47.5mm (WxDxH)
|
AiMesh
|
AiMesh
|
|
Primary AiMesh Router
|
|
AiMesh Node
|
Parental Control
|
Allow you to block access to unwanted websites and apps
|
|
Customized Internet Schedule
|
Guest Network
|
The Guest Network provides Internet connection for guests but restricts access to your local network
|
Security
|
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
|
|
WPS
|
|
SSH
|
|
Firewall
|
VPN
|
Instant Guard
|
|
VPN Client L2TP
|
|
VPN Client Open VPN
|
|
VPN Client PPTP
|
|
VPN Server IPSec
|
|
VPN Server Open VPN
|
|
VPN Server PPTP
|
WAN
|
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
|
|
Dual WAN
|
|
Port triggering
|
|
DMZ
|
|
DDNS
|
LAN
|
DHCP Server
|
|
IGMP Snooping
|
|
IPTV
|
|
Manually Assign IP Address
|
|
Wake on LAN (WOL)
|
Wireless
|
UTF-8 SSID
|
|
Wi-Fi MAC Address Filter
|
|
Wireless Scheduler
|
|
Airtime Fairness
|
|
RADIUS Client
|
|
Universal Beamforming
|
|
Explicit Beamforming
|
Administration
|
Configuration Backup and Restore
|
|
Diagnosis tools
|
|
Feedback System
|
|
System Log
|
