Network Standard
|
IPv6
|
|
IPv4
|
|
WiFi 6 (802.11ax)
|
|
WiFi 5 (802.11ac)
|
|
WiFi 4 (802.11n)
|
|
IEEE 802.11g
|
|
IEEE 802.11b
|
|
IEEE 802.11a
|
Product Segment
|
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
|
WiFi Data Rate
|
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
|
|
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
|
|
WiFi 5 (802.11ac) : up to 867 Mbps
|
|
WiFi 4 (802.11n) : up to 300 Mbps
|
|
802.11g : up to 54 Mbps
|
|
802.11b : up to 11 Mbps
|
|
802.11a : up to 54 Mbps
|
Antenna
|
External antenna x 4
|
Transmit / Receive
|
5GHz 2x2
|
|
2.4GHz 2x2
|
Processor
|
1.3GHz dual-core processor
|
Memory
|
128 MB Flash
|
|
256 MB RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
|
|
Beamforming: standard-based and universal
|
|
1024-QAM high data rate
|
|
20/40/80/160 MHz bandwidth
|
Operating Frequency
|
2.4GHz / 5GHz
|
Operating Mode
|
Access Point, AiMesh Node, Repeater, Router
|

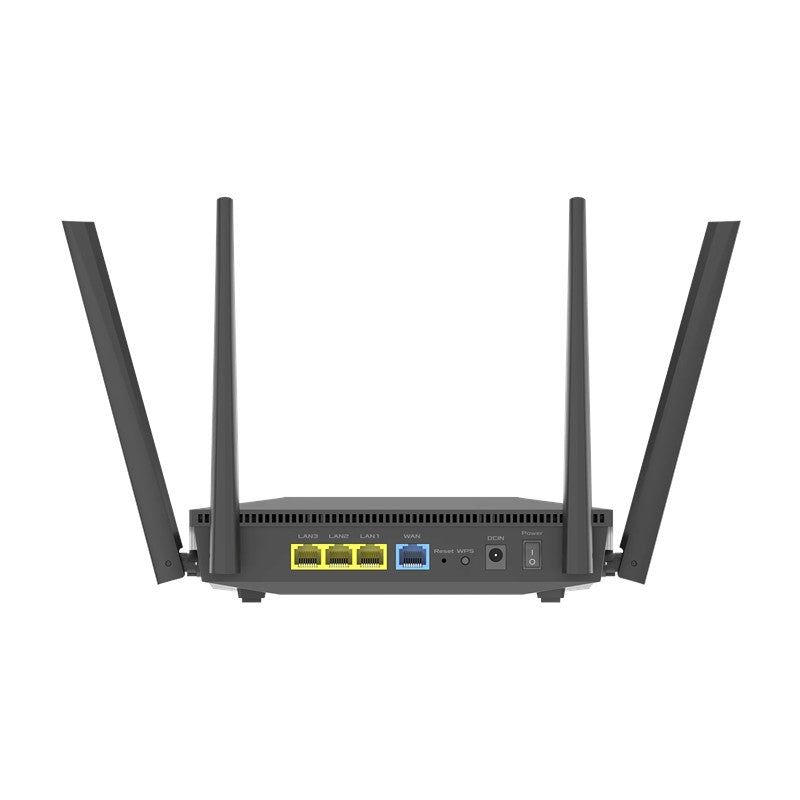

I/O Ports
|
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
|
Buttons
|
WPS Button, Reset Button, Power Switch
|
LED Indicator
|
Power x 1
|
|
WAN x 1
|
|
LAN x 3
|
|
2.4G x 1
|
|
5G x 1
|
|
WPS x 1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
|
|
DC Output : 12 V with max. 1 A current
|
AiMesh
|
AiMesh, Primary AiMesh Router, AiMesh Node
|
Parental Control
|
Customized Internet Schedule
|
Guest Network
|
The Guest Network provides Internet connection for guests but restricts access to your local network.
|
Security
|
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall
|
VPN
|
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP
|
Traffic Control
|
Bandwidth Limiter, Traditional QoS, Traffic Monitor, Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor
|
