Network Standard
|
IEEE 802.11a
|
|
IEEE 802.11b
|
|
IEEE 802.11g
|
|
Wi-Fi 4 (802.11n)
|
|
Wi-Fi 5 (802.11ac)
|
|
Wi-Fi 6 (802.11ax)
|
|
Wi-Fi 7 (802.11be)
|
|
IPv4
|
|
IPv6
|
Product Segment
|
BE7200 ultimate BE performance : 1376+5764 Mbps
|
Wi-Fi Data Rate
|
Wi-Fi 7 (802.11be) (2.4GHz): up to 1376 Mbps
|
|
Wi-Fi 7 (802.11be) (5GHz): up to 5764 Mbps
|

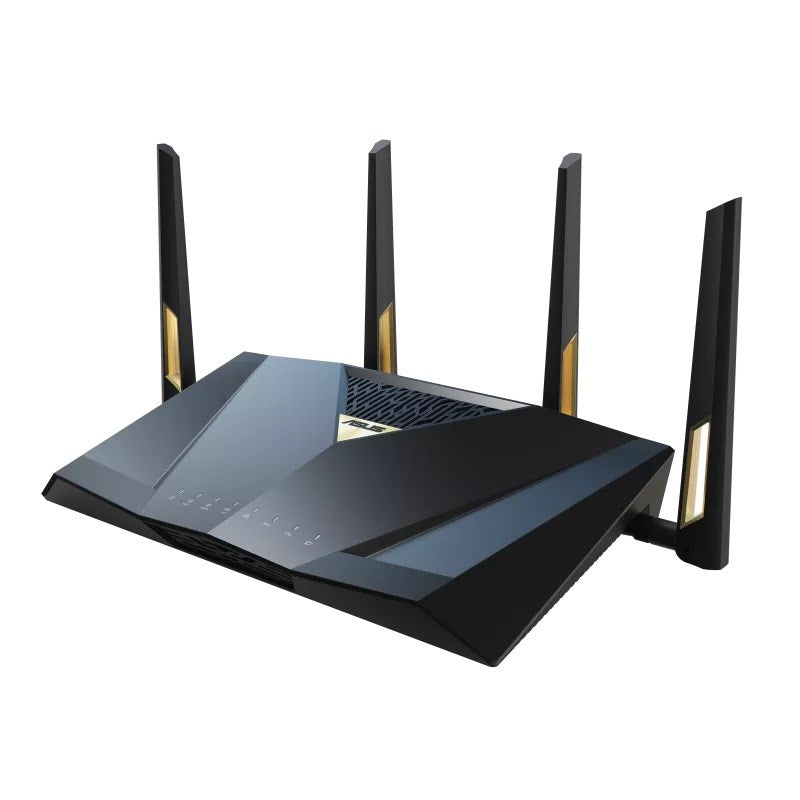

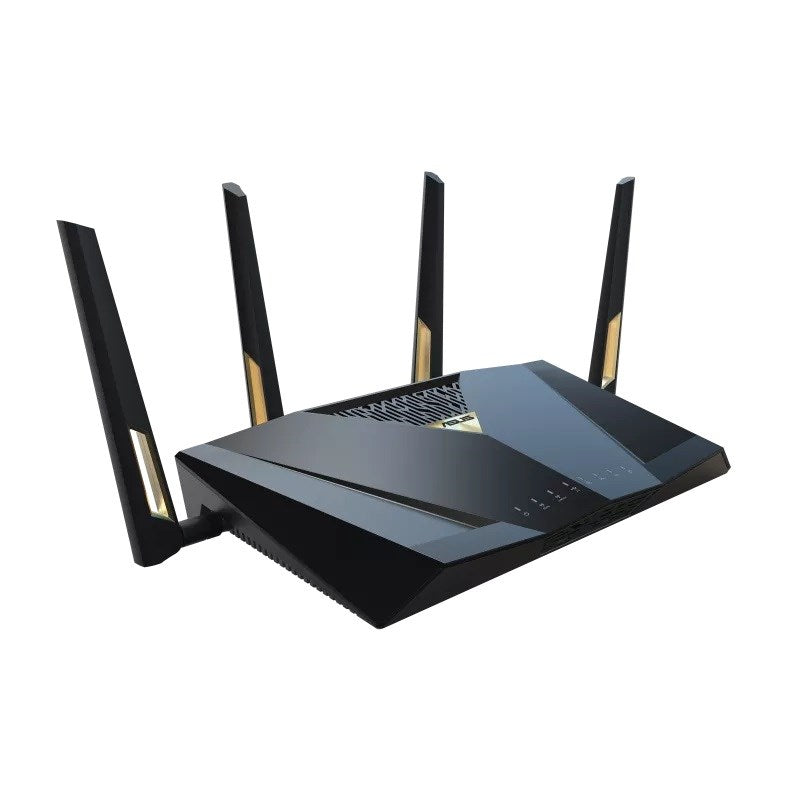

Antenna
|
External antenna x 4
|
Transmit / Receive
|
2.4GHz 4x4
|
|
5GHz 4x4
|
Processor
|
2.6GHz quad-core processor
|
Memory
|
256 MB Flash and 2 GB RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
|
|
Beamforming: standard-based and universal
|
|
4096-QAM high data rate
|
|
20/40/80/160 MHz bandwidth
|
Operating Frequency
|
2.4 GHz
|
|
5 GHz
|
Operating Mode
|
Wireless Router Mode
|
|
AiMesh Node Mode
|
|
Access Point Mode
|
|
Media Bridge Mode
|
|
Repeater Mode
|

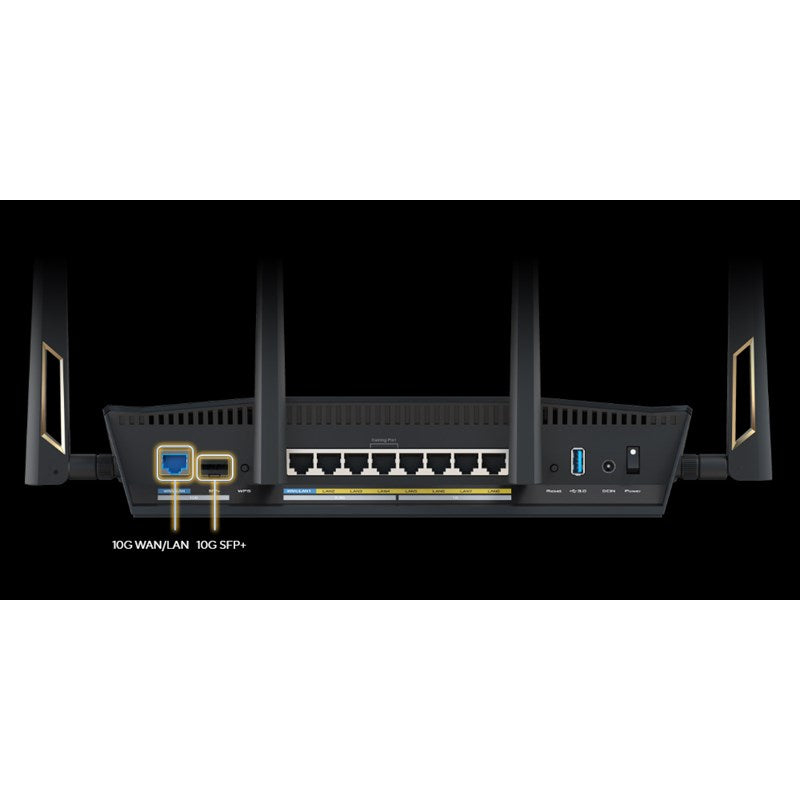

I/O Ports
|

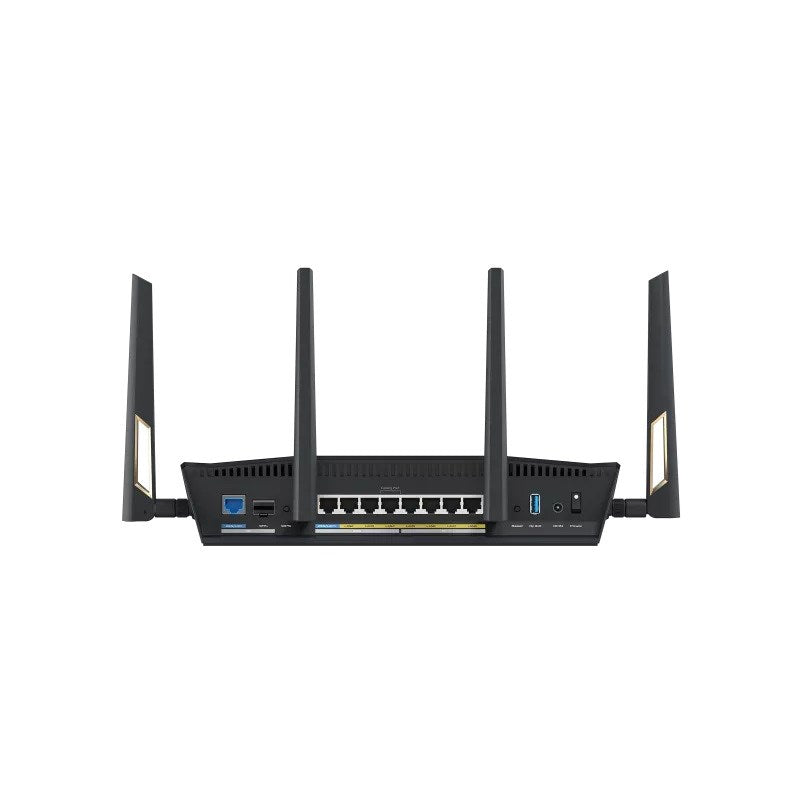

1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ for WAN, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1
|
Buttons
|
WPS Button, Reset Button, Power Switch
|
LED Indicator
|
WAN x1
|
|
10G WAN x1
|
|
10G SFP+ x1
|
|
LAN x1
|
|

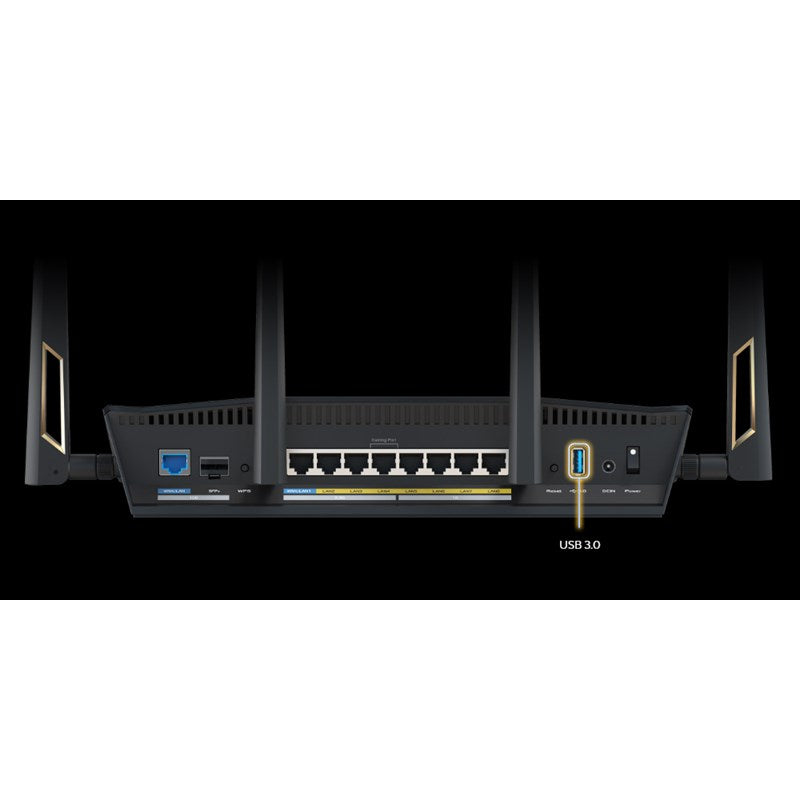

USB 3.2 Gen 1 x1
|
|
2.4GHz x1
|
|
5GHz x1
|
|
Power x1
|
Power Supply
|
AC Input : 110V~240V(50~60Hz)
|
|
DC Output : 12V with max. 5 A current；19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current
|
Product Weight
|
1060 g
|
AiMesh
|
AiMesh
|
|
Primary AiMesh Router
|
|
AiMesh Node
|
Game
|
Mobile Game Mode
|
|
Gear Accelerator
|
|
OpenNAT (Game Profile)
|
|
Gaming Port
|
Parental Control
|
Allow you to block access to unwanted websites and apps
|
|
Web & Apps Filters
|
|
Time Scheduling
|
|
Safe Browsing
|
|
Customized Internet Schedule
|
|
Maximum Parental Control Profile : 64
|
|
Maximum Parental Control Content Cilter Rule : 64
|
Guest Network
|
You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings
|
|
Support Guest Network Pro
|
|
Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
|
|
Guest Network Connection Time Limit
|
|
Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal
|
Security
|
AiProtection
|
|
VPN
|
|
WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE
|
|
WPS
|
|
Let's Encrypt
|
|
DNS-over-TLS
|
|
SSH
|
|
Security Scan
|
|
Firewall
|
|
Maximum Firewall Keyword Filter : 64
|
|
Maximum Firewall Network Service Filter : 32
|
|
Maximum Firewall URL Filter : 64
|
AiProtection
|
AiProtection Pro
|
|
Router Security Assessment
|
|
Malicious Site Blocking
|
|
Two-Way IPS
|
|
Infected Device Prevention and Blocking
|
VPN
|
Instant Guard
|
|
VPN Client L2TP
|
|
VPN Client Open VPN
|
|
VPN Client PPTP
|
|
VPN Client WireGuard
|
|
VPN Server IPSec
|
|
VPN Server Open VPN
|
|
VPN Server PPTP
|
|
VPN Server WireGuard
|
|
VPN Fusion
|
|
Support Surfshark
|
Traffic Control
|
Adaptive QoS
|
|
Bandwidth Monitor
|
|
Bandwidth Limiter
|
|
Maximum Bandwidth Limiter Rule : 32
|
|
Traditional QoS
|
|
Traffic Monitor
|
|
Real-time Traffic Monitor
|
|
Wired Traffic Monitor
|
|
Wireless Traffic Monitor
|
|
Traffic Analyzer
|
|
Traffic Analysis Period : Daily, Weekly, Monthly
|
|
Website History
|
WAN
|
Internet Connection Type :
|
|
PPPoE
|
|
PPTP
|
|
L2TP
|
|
Automatic IP
|
|
Static IP
|
|
IPSec
|
|
Dual WAN
|
|
WAN Aggregation
|
|
3G / 4G LTE dongle
|
|
Port forwarding
|
|
Maximum Port Forwarding Rule : 64
|
|
Port triggering
|
|
Maximum Port Triggering Rule : 32
|
|
DMZ
|
|
DDNS
|
|
NAT Passthrough :
|
|
PPTP Pass-Through
|
|
L2TP Pass-Through
|
|
IPSec Pass-Through
|
|
RTSP Pass-Through
|
|
H.323 Pass-Through
|
|
SIP Pass-Through
|
|
PPPoE Relay
|
LAN
|
IGMP Snooping
|
|
IPTV
|
DHCP Server
|
LAN Link Aggregation
|
|
Manually Assign IP Address
|
|
Maximum Manually Assign IP Address Rule : 128
|
|
Wake on LAN (WOL)
|
Wireless
|
MU-MIMO
|
|
UTF-8 SSID
|
|
Wi-Fi MAC Address Filter
|
|
Maximum MAC Filters : 64
|
|
Wireless Scheduler
|
|
Airtime Fairness
|
|
RADIUS Client
|
|
Universal Beamforming
|
|
Explicit Beamforming
|
USB application
|
File System :
|
|
HFS+
|
|
NTFS
|
|
vFAT
|
|
ext2
|
|
ext3
|
|
ext4
|
|
Safely Remove Disk
|
|
AiCloud
|
|
Download Master
|
|
AiDisk
|
|
Media Server
|
|
Time Machine
|
|
Samba Server
|
|
FTP Server
|
|
Shared Folder Privileges
|
User Interface
|
WEB: ASUSWRT
|
|
APP: ASUS Router APP
|
Administration
|
Configuration Backup and Restore
|
|
Diagnosis tools
|
|
Feedback System
|
|
System Log
|
|
New Device Connect Notification
|
|
Login Captcha
|
|
Connection Diagnosis
|
|
Auto Firmware Update
|
