Network Standard
|
IEEE 802.11a
|
|
IEEE 802.11b
|
|
IEEE 802.11g
|
|
Wi-Fi 4 (802.11n)
|
|
Wi-Fi 5 (802.11ac)
|
|
Wi-Fi 6 (802.11ax)
|
|
Wi-Fi 7 (802.11be)
|
|
IPv4
|
|
IPv6
|
Product Segment
|
BE3600 ultimate BE performance : 688+2882 Mbps
|
Wi-Fi Data Rate
|
Wi-Fi 6 (802.11ax) (5GHz) : up to 2402 Mbps
|
|
Wi-Fi 7 (802.11be) (2.4GHz): up to 688 Mbps
|
|
Wi-Fi 7 (802.11be) (5GHz): up to 2882 Mbps
|

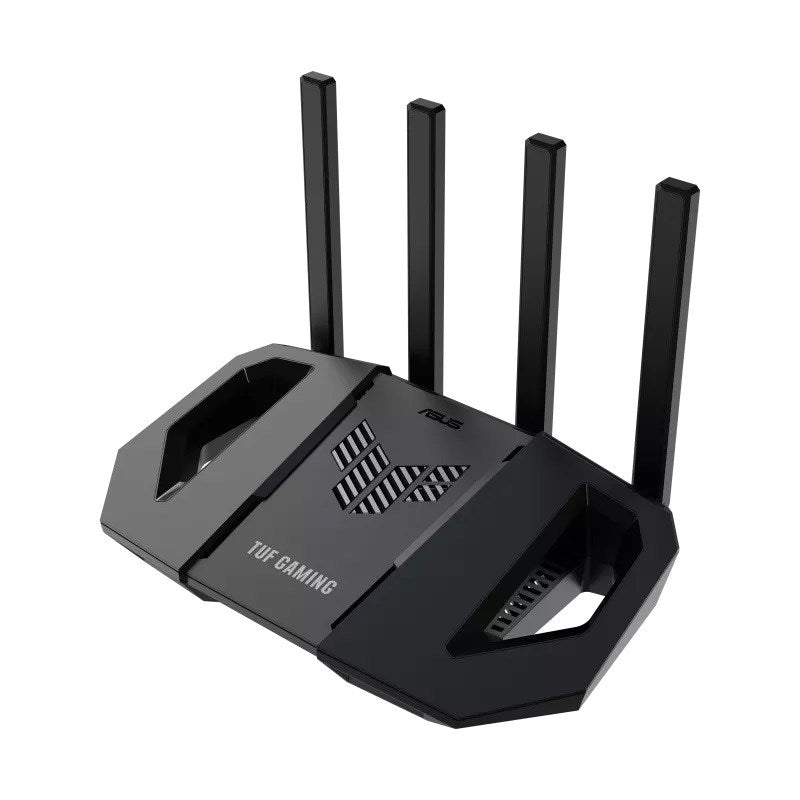

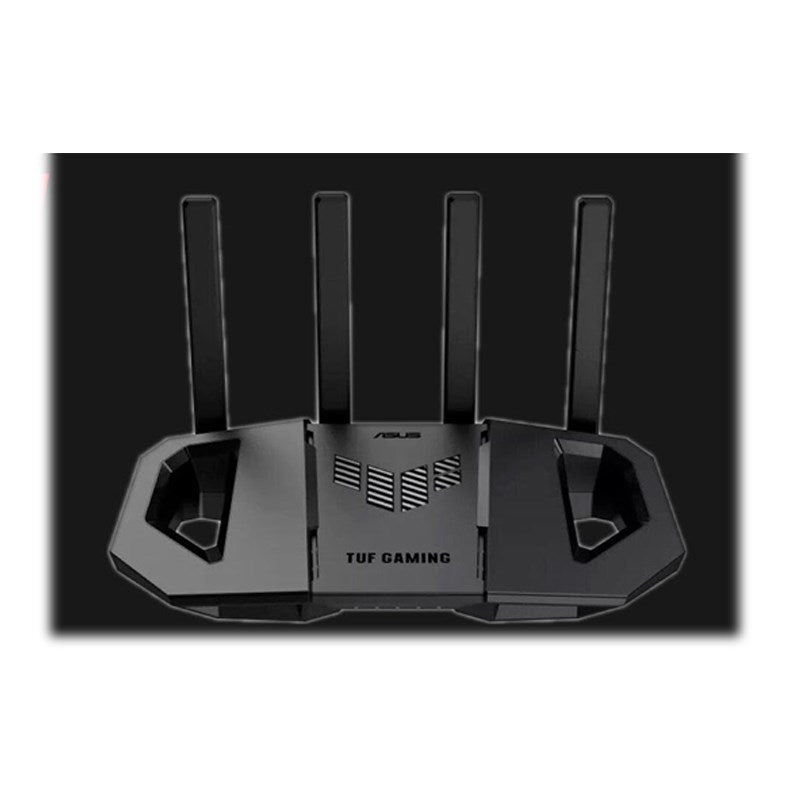

Antenna
|
External antenna x 4
|
Transmit / Receive
|
2.4GHz 2x2
|
|
5GHz 2x2
|
Processor
|
2.0 GHz quad-core processor
|
Memory
|
256 MB Flash
|
|
1 GB RAM
|
Boosts Speed
|
OFDMA (Orthogonal Frequency Division Multiple Access)
|
|
Beamforming: standard-based and universal
|
|
4096-QAM high data rate
|
|
20/40/80/160 MHz bandwidth
|
Operating Frequency
|
2.4GHz / 5GHz
|
|
2.4 GHz
|
|
5 GHz
|
Operating Mode
|
Wireless router mode
|
|
Access point mode
|
|
Media bridge mode
|

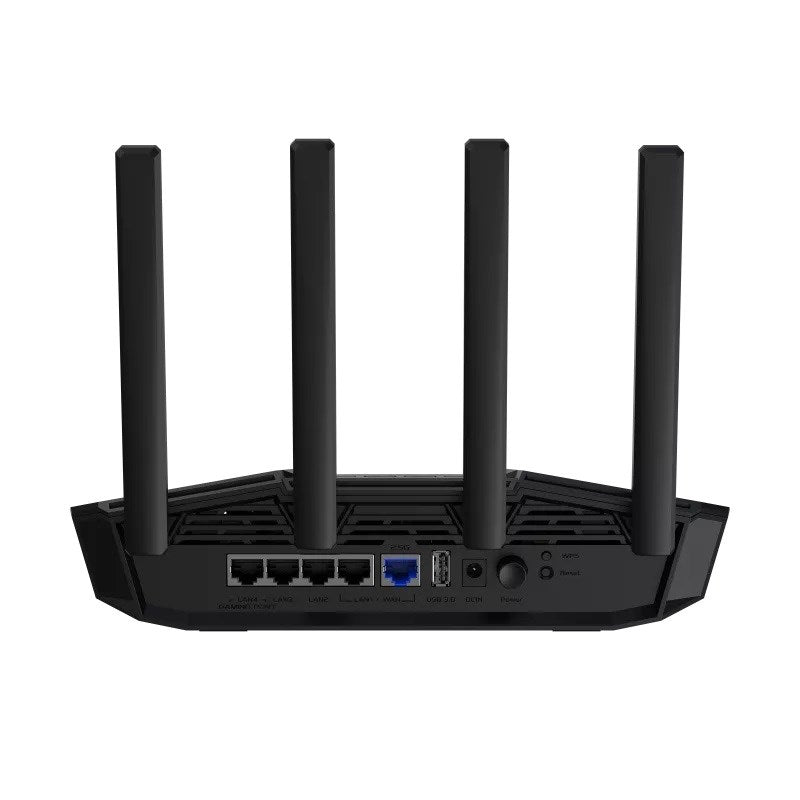

I/O Ports
|
RJ45 for 2.5 Gigabits BaseT for WAN x 1
|
|
RJ45 for Gigabits BaseT for LAN x 4
|
|
USB 3.2 Gen 1 x 1
|
Buttons
|
WPS Button, Reset Button, Power Button
|
LED Indicator
|
Power x 1
|
|
WAN x 1
|
|
LAN x 1
|
|
2.4GHz Wi-Fi x 1
|
|
5GHz Wi-Fi x 1
|
Power Supply
|
AC Input : 100V~240V (50~60Hz)
|
|
DC Output : 12 V with max. 2 A current
|
Product Weight (g)
|
561 g
|
Product Dimensions
|
274 x 168 x 205 mm
|
AiMesh
|
AiMesh
|
|
Primary AiMesh Router
|
|
AiMesh Node
|
Game
|
Game Boost / Acceleration
|
|
Mobile Game Mode
|
Parental Control
|
Allow you to block access to unwanted websites and apps
|
|
Safe Browsing
|
|
Customized Internet Schedule
|
Guest Network
|
The Guest Network provides Internet connection for guests but restricts access to your local network
|
|
Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
|
|
Guest Network Connection Time Limit
|
Security
|
AiProtection
|
|
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
|
|
WPS
|
|
Let's Encrypt
|
|
DNS-over-TLS
|
|
SSH
|
|
Security Scan
|
|
Firewall
|
|
Maximum Firewall Keyword Filter : 64
|
|
Maximum Firewall Network Service Filter : 32
|
|
Maximum Firewall URL Filter : 64
|
AiProtection
|
Router Security Assessment
|
|
Malicious Site Blocking
|
|
Two-Way IPS
|
|
Infected Device Prevention and Blocking
|
VPN
|
VPN Client L2TP
|
|
VPN Client Open VPN
|
|
VPN Client PPTP
|
|
VPN Client WireGuard
|
|
VPN Server IPSec
|
|
VPN Server Open VPN
|
|
VPN Server PPTP
|
|
VPN Server WireGuard
|
|
VPN Fusion
|
Traffic Control
|
Adaptive QoS
|
|
Bandwidth Monitor
|
|
Bandwidth Limiter
|
|
Maximum Bandwidth Limiter Rule : 32
|
|
Traditional QoS
|
|
Maximum Traditional QoS Rule : 32
|
|
Traffic Monitor
|
|
Real-time Traffic Monitor
|
|
Wired Traffic Monitor
|
|
Wireless Traffic Monitor
|
|
Traffic Analyzer
|
|
Traffic Analysis Period : Daily, Weekly, Monthly
|
|
Website History
|
WAN
|
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
|
|
WAN Aggregation
|
|
3G / 4G LTE dongle
|
|
Port forwarding
|
|
Maximum Port Forwarding Rule : 64
|
|
Port triggering
|
|
Maximum Port Triggering Rule : 32
|
|
DMZ
|
|
DDNS
|
|
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
|
LAN
|
DHCP Server
|
|
IGMP Snooping
|
|
IPTV
|
|
LAN Link Aggregation
|
|
Manually Assign IP Address
|
|
Maximum Manually Assign IP Address Rule : 64
|
|
Wake on LAN (WOL)
|
Wireless
|
UTF-8 SSID
|
|
Wi-Fi MAC Address Filter
|
|
Maximum MAC Filters : 64
|
|
Wireless Scheduler
|
|
Airtime Fairness
|
|
RADIUS Client
|
|
Universal Beamforming
|
|
Explicit Beamforming
|
USB application
|
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
|
|
Safely Remove Disk
|
|
AiCloud
|
|
Download Master
|
|
AiDisk
|
|
Media Server
|
|
Time Machine
|
|
Samba Server
|
|
FTP Server
|
|
Shared Folder Privileges
|
Administration
|
Configuration Backup and Restore
|
|
Diagnosis tools
|
|
Feedback System
|
|
System Log
|
|
New Device Connect Notification
|
|
Login Captcha
|
|
Connection Diagnosis
|
|
Auto Firmware Update
|
