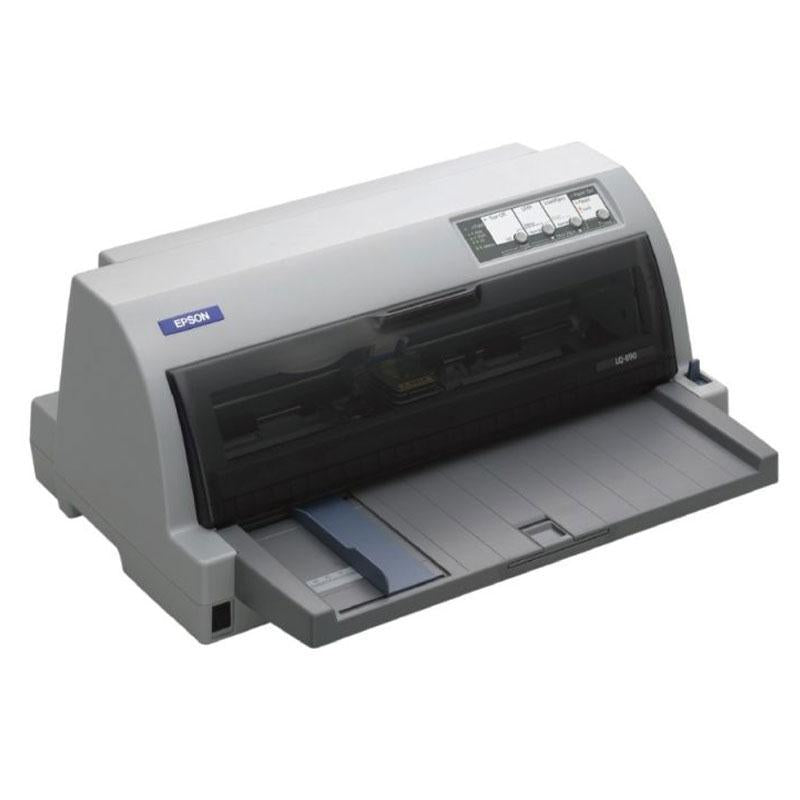

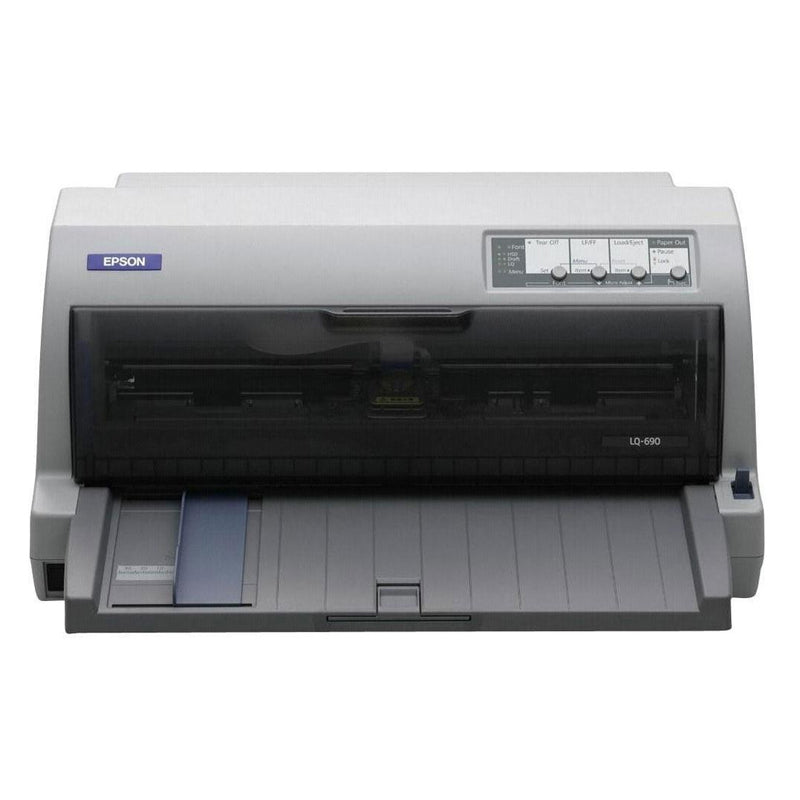

Epson LQ690 Dot Matrix Printer

Description

Epson LQ690 Dot Matrix Printer

24-pin dot matrix printer

For the very best in dot matrix performance, look no further than the versatile and user-friendly Epson LQ-690, offering a winning combination of speed, reliability and ribbon yield.

Designed with the dot matrix user in mind, our latest model has an impressive print speed of up to 529 cps. This flexible and compact printer can easily handle cut sheets, continuous paper, labels, envelopes and cards. It has a built-in Print Speed Enhancer to increase the speed of bit image printing, making it an ideal printer for those in the most demanding of work environments.

Very fast

Print faster and more productively. Perfect for those printing directly from any Windows applications.

Smart design

This compact hard-working printer is designed to fit on your desk. The platen gap adjustment lever is thoughtfully hidden under the front cover, to avoid accidental setting changes and paper setting is made easy thanks to the ruler in the front paper guide.

Quality

The 106 column capacity with 24 pins means greater quality.

Speedy

Impressive print speed of 529 cps.

Productive

Big memory buffer of 128 KB.

Energy efficient

Low power consumption so better for environment.

Specification

Technology



Printing Method

Impact dot matrix

Number of Pins

24 pins

Number of columns

106 columns

Pins

24 Needles

Print



Printing Speed

HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s





Barcodes

Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E

Carbon Copies

6 plus one original

Character Tables

PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic

Printing Resolution

360 x 180 DPI

Connectivity



Interfaces

USB 2.0, Bidirectional parallel

General



Power consumption

38 Watts, 3 Watts (standby)

Product dimensions

480‎ x 370 x 210mm (Width x Depth x Height)

Product weight

6.8 kg

Supported Temperature

Operation 5° C - 35° C

Supported Humidity

Operation 10% - 80%

Compatible Operating Systems

Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP

Mean Time Between Failures

20,000 hours

Print Head Life

400 Million Strokes/Wire

Noise

Operation:57 dB (A)-



Standby:54 dB (A)

Fonts

Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H

Memory

128 kB Included

Ribbon Yield

10000000 characters Black Draft

Epson LQ690 Dot Matrix Printer

Product form

129.000 KD

    • Guaranteed secure & safe checkout.

    Description

    Epson LQ690 Dot Matrix Printer

    24-pin dot matrix printer

    For the very best in dot matrix performance, look no further than the versatile and user-friendly Epson LQ-690, offering a winning combination of speed, reliability and ribbon yield.

    Designed with the dot matrix user in mind, our latest model has an impressive print speed of up to 529 cps. This flexible and compact printer can easily handle cut sheets, continuous paper, labels, envelopes and cards. It has a built-in Print Speed Enhancer to increase the speed of bit image printing, making it an ideal printer for those in the most demanding of work environments.

    Very fast

    Print faster and more productively. Perfect for those printing directly from any Windows applications.

    Smart design

    This compact hard-working printer is designed to fit on your desk. The platen gap adjustment lever is thoughtfully hidden under the front cover, to avoid accidental setting changes and paper setting is made easy thanks to the ruler in the front paper guide.

    Quality

    The 106 column capacity with 24 pins means greater quality.

    Speedy

    Impressive print speed of 529 cps.

    Productive

    Big memory buffer of 128 KB.

    Energy efficient

    Low power consumption so better for environment.

    Specification

    Technology



    Printing Method

    Impact dot matrix

    Number of Pins

    24 pins

    Number of columns

    106 columns

    Pins

    24 Needles

    Print



    Printing Speed

    HighSpeed-Draft: 10 cpi: 440 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 330 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 110 chars/s, 12 cpi: 132 chars/s





    Barcodes

    Coda bar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E

    Carbon Copies

    6 plus one original

    Character Tables

    PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic

    Printing Resolution

    360 x 180 DPI

    Connectivity



    Interfaces

    USB 2.0, Bidirectional parallel

    General



    Power consumption

    38 Watts, 3 Watts (standby)

    Product dimensions

    480‎ x 370 x 210mm (Width x Depth x Height)

    Product weight

    6.8 kg

    Supported Temperature

    Operation 5° C - 35° C

    Supported Humidity

    Operation 10% - 80%

    Compatible Operating Systems

    Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP

    Mean Time Between Failures

    20,000 hours

    Print Head Life

    400 Million Strokes/Wire

    Noise

    Operation:57 dB (A)-



    Standby:54 dB (A)

    Fonts

    Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H

    Memory

    128 kB Included

    Ribbon Yield

    10000000 characters Black Draft
