| Specifications |
| Model |
CS-CB1-R100-1K2WF |
| Camera |
| Image Sensor |
1/3 ” 2-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed |
Self-Adaptive Shutter |
| Lens |
2.8mm@ F2.2 Viewing angle: 113° (Diagonal), 90° (Horizontal), 50° (Vertical) |
| Minimum Illumination |
0.1 Lux |
| Lens Mount |
M12 |
| Day & Night |
IR-cut Filter with Auto Switch |
| DNR |
3D DNR |
| Night Vision |
Up to 5 m / 16 ft |
| Function |
| Smart Alarm |
Supports smart human motion detection |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| Storage |

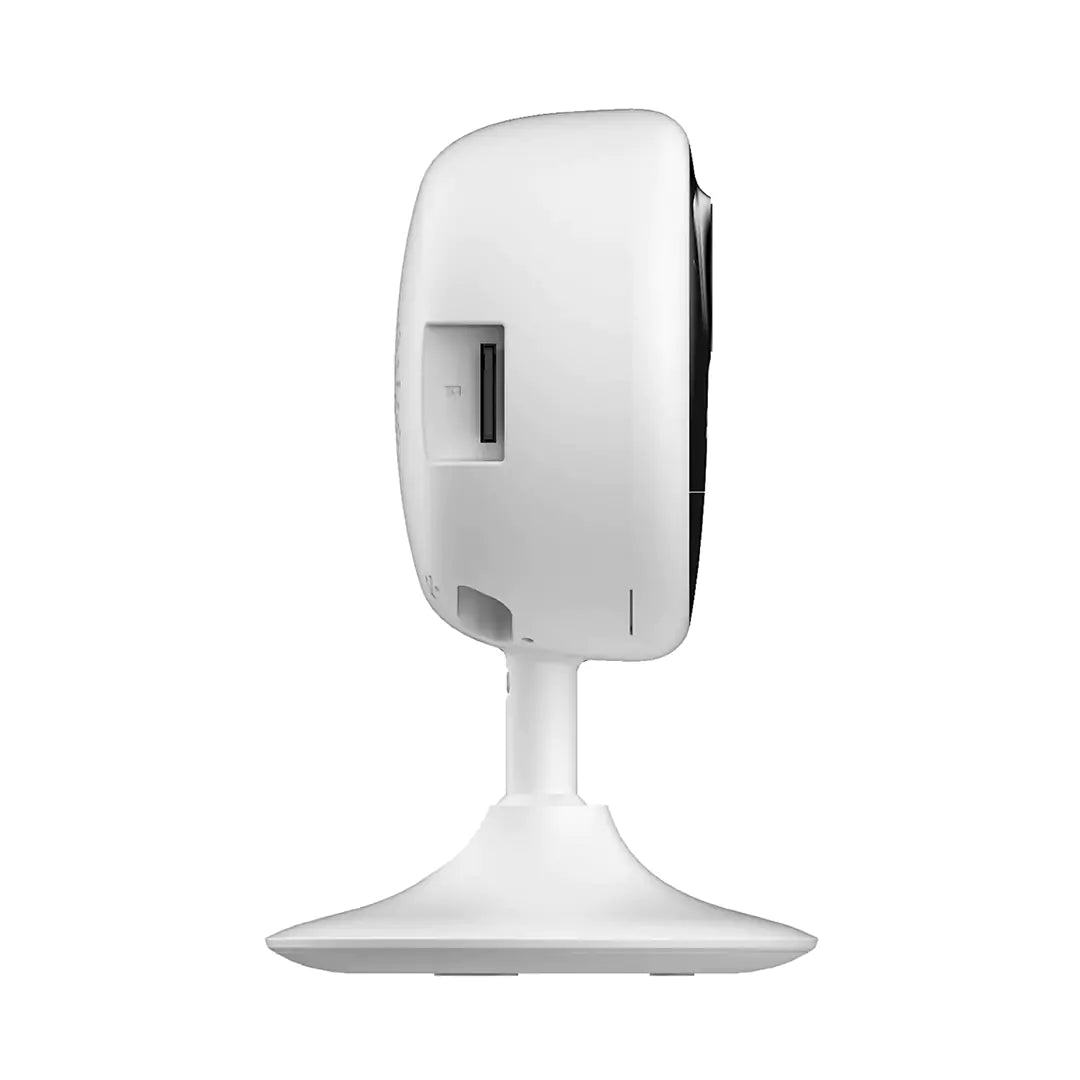

| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (subscription required) |
| Video & Audio |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
15fps. Self-Adaptive during Network Transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Full HD; Hi-Def; Standard |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
Does not support |
| Minimum Network Requirement |
2 Mbps |
| General |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing) |
| Power Supply |
DC 5V/1A (Purchased Separately) |
| Battery Capacity |
1600 mA |
| Dimensions |
67 × 63 × 105 mm (2.64 × 2.48 × 4.13 inch) |
| Packaging Dimensions |
91.5 × 87.5 × 149 mm (3.60 × 3.44 × 5.87 inch) |
| Bare Weight |
135 g (4.76 oz) |
| In the box |
| In the box |
- CB1 Camera |
| - Power Cable |
| - Foam Sticker |
| - Mounting Metal Plate |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / WEEE / RoHS / REACH / UL |
