| Specifications |
| Model |
CS-CB2-R100-2D2WF |
| Camera |
| Image Sensor |
1/2.8” 2-Megapixel Progressive Scan CMOS Sensor |
| Shutter Speed |
Self-Adaptive Shutter |
| Lens |
4 mm @ F1.6, view angle: 100°, 85° (Diagonal), 46° (Horizontal) |
| Night Vision |
Max. 5 m / 16 ft |
| Minimum Illumination |
0.1 Lux |
| Lens Mount |
M12 |
| Day & Night |
IR-cut Filter with Auto Switch |
| DNR |
3D DNR |
| Network |
| Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20 MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ Cloud Proprietary Protocol |
| Interface Protocol |
EZVIZ Cloud Proprietary Protocol |
| Wired Network |
Does not support |
| Minimum Network Requirement |
1 Mbps |
| Video & Audio |
| Max. Resolution |
1920 × 1080 |
| Frame Rate |
15fps. Self-Adaptive during Network Transmission |
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Full HD; Hi-Def; Standard |
| Audio Bit Rate |
Self-Adaptive |
| Max. Bitrate |
1 Mbps |
| Function |
| Smart Alarm |
Supports smart human motion detection |
| Customized Alert Area |
Supports |
| Two-way Talk |
Supports |
| Storage |
| Local Storage |
Supports microSD card (Up to 512 GB) |
| Cloud Storage |
Supports EZVIZ CloudPlay storage (subscription required) |
| General |
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or Less (Non-condensing) |
| Power Supply |
DC 5V/1A (Purchased Separately) |
| Battery Capacity |
2000 mAh |
| Dimensions |
50.5 × 39.1 × 39.1 mm (1.99 ×1.54 × 1.54 inch) |
| Packaging Dimensions |
126 × 91× 50 mm (4.96 × 3.58 × 1.97 inch) |
| Net Weight |
86.8 g (3.06 oz) |
| With Package |
273g (9.63 oz) |
| In the box |
| In the box |

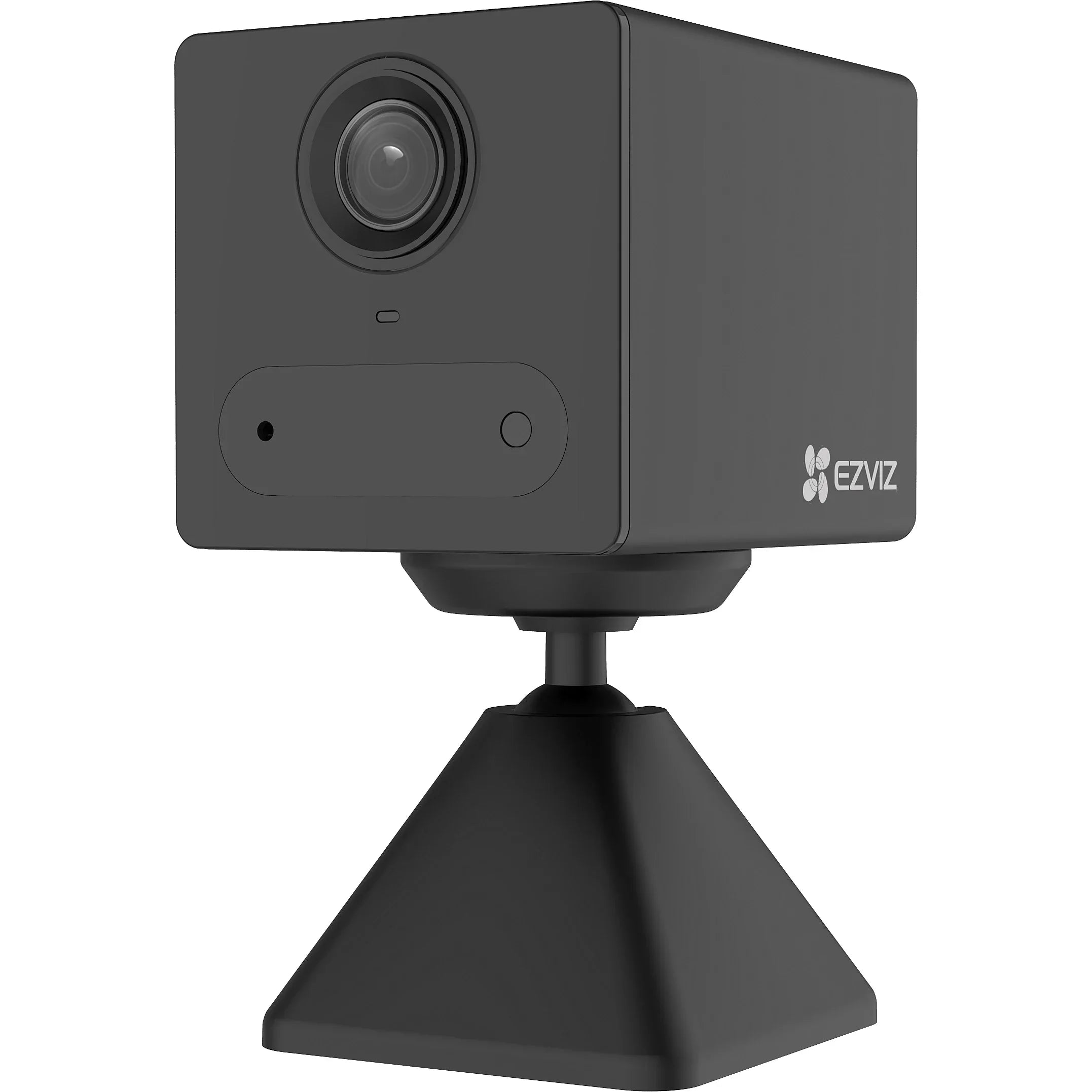

- CB2 Camera |
| - Magnetic Base |
| - Power Cable |
| - Foam Sticker |
| - Mounting Metal Plate |
| - Regulatory Information |
| - Quick Start Guide |
| Certifications |
| Certifications |
CE / WEEE / RoHS / REACH / UL |
