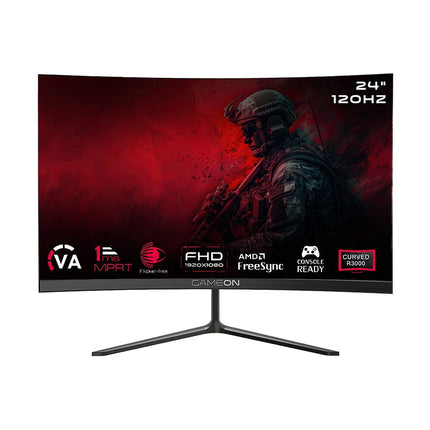

Panel & Optical
|
|
Size
|
23.8"
|
Active Area Display (H x V)
|
527.04 x 296.46mm
|
Physical Unit Size (H×V×D)
|
534.64 × 308.06 × 1.2mm
|
Display Mode
|
VA, Normally Black, Transmissive
|

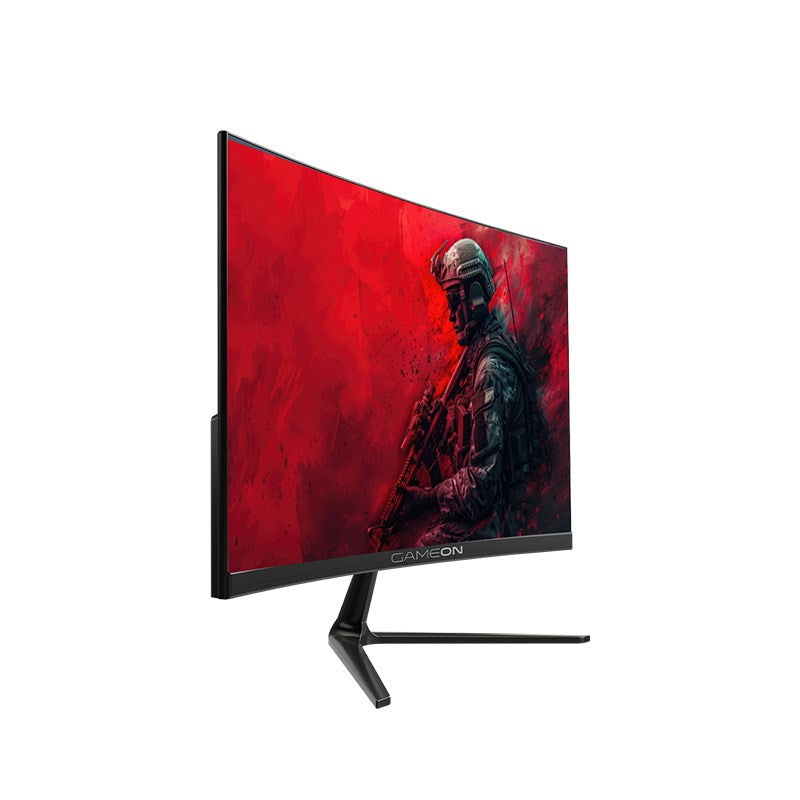

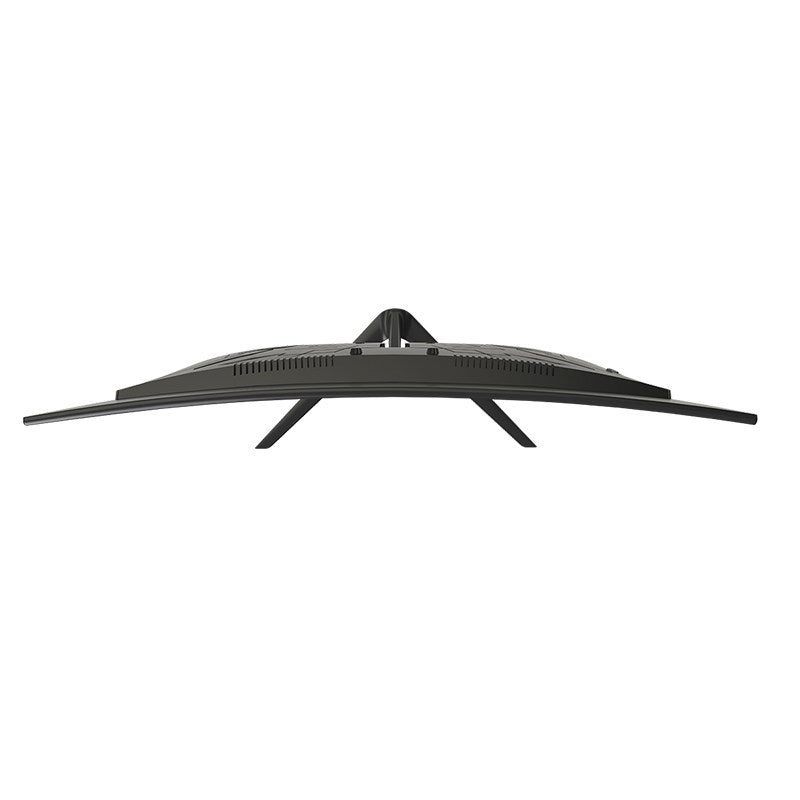

Curvature
|
R3000
|
Refresh Rate
|
120 Hz
|
Surface
|
Antiglare (Haze 25%), Hard coating (3H)
|
Brightness (Typical)
|
MAX: 250 cd/m²
|
Contrast Ratio (Typical)
|
3000:1 up to 4000:1 (Typ.) (TM)
|
Pixel Pitch
|
0.0915 (H) x 0.2745 (V) mm (92 PPI)
|
Resolution (H x V)
|
1920(RGB)×1080, FHD
|
Aspect Ratio
|
16:9 (H:V)
|
Response Time (Typical)
|
8 ms (Typ.) (G to G), 3 ms MPRT, 1 ms
|
View Angles LR, UD (CR>10)
|
H/V 178°/178° (Typ.) (CR≥10)
|
Display Colors
|
16.7M (8-bit)
|
Features
|
|
AMD FREESYNC
|
Support
|
GAME PLUS
|
Support
|
DC Dimming
|
Support
|
VRR
|
Support
|
Color Gamut (Coverage)
|
SRGB: 100%, NTSC: 72%
|
Interface
|
|
Input 1
|
HDMI 2.1*1
|
Input 2
|
VGA*1
|
Output Terminal Input 1
|
Audio out
|
Output Terminal Input 2
|
Speakers 8Ω 2W*2
|
Power
|
|
Consumption (Typical)
|
On: <30W, Standby: <=0.5W, Off: <=0.5W
|
Power Range
|
AC: 110-240V, DC: 12V2.5A
|
Power Mode Indicator Light
|
Power on: Blue (LED), Power saving: Blue Flicker (LED)
|
Operating Condition
|
|
Temperature
|
0°C - 40°C
|
Humidity
|
20% ~ 85%, non-condensing
|
Storage Condition
|
|
Temperature
|
-20°C - +60°C
|
Humidity
|
5% - 90%, non-condensing
|
Physical
|
|
Dimension (WDH)
|
541 * 161 * 406mm
|
W/O Base Dimension
|
541 * 41 * 323mm
|
Packing Dimension (WDH)
|
595 * 120 * 390mm
|
Net Weight
|
2.5 kg
|
Gross Weight
|
3.55 kg
|
W/O Base Weight
|
2.38 kg
|

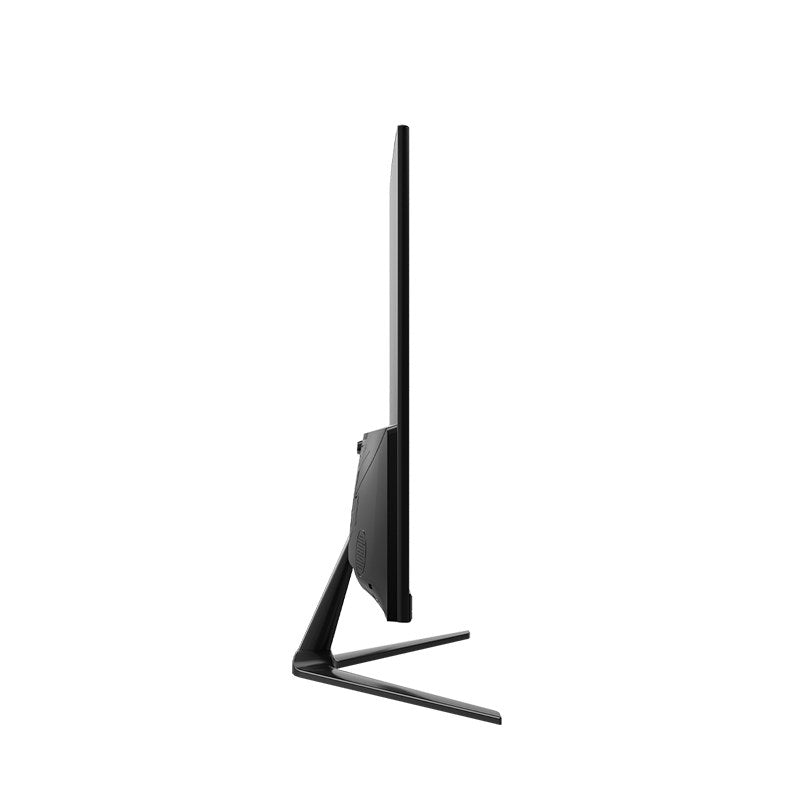

Tilt Angle
|
-5° ~ 15° ±2°
|
Stand Tilt
|
≤4mm
|
Base
|
V Shape
|

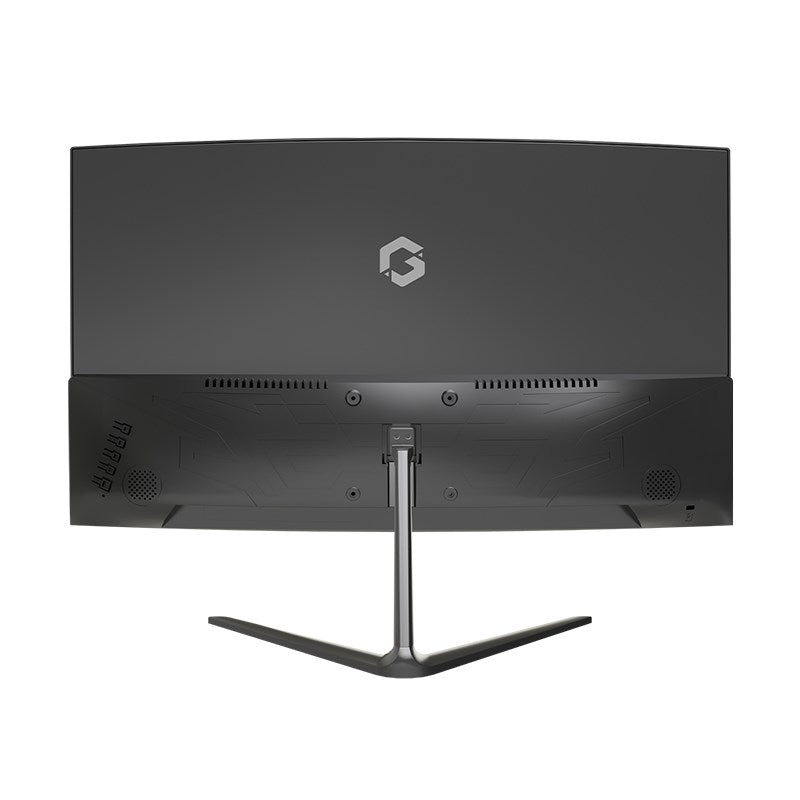

Kensington Lock
|
Yes
|
VESA Mounting
|
VESA 75*75mm
|
Tilt Push and Pull Force
|
1.0 kg ±10%
|
GAP-OC
|
0.8mm, |Left-right|≤0.4mm
|
GAP
|
≤0.5mm
|
Controls & OSD
|
|
Front Control
|
Five-button: Menu > < EXIT Power (Menu minus plus exit power on/off)
|
On Screen Display
|
OSD English default with 8 languages
|
Recall Brightness
|
180 cd/m²
|
Preset Mode
|
Refer to the Common Preset Modes table
|
