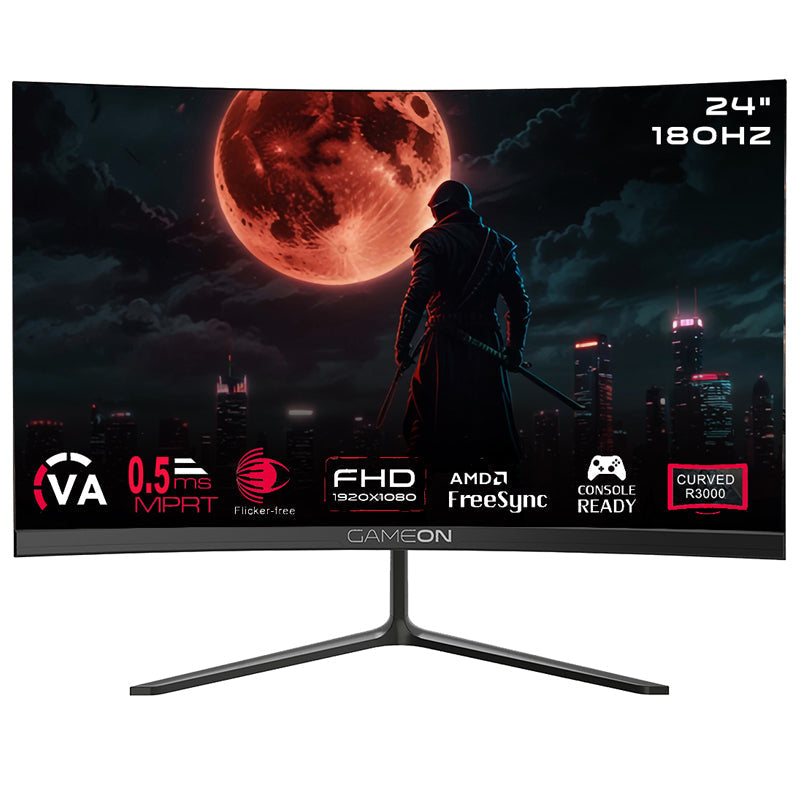

Diagonal Size
|
23.8"
|
Active area display (mm)
|
527.04(W)×296.46(H)
|
Physical unit size (mm)
|
534.04(W)×307.76(H)×1.305(D)
|
Display Mode
|
VA, FSA, Normally Black, Transmissive
|

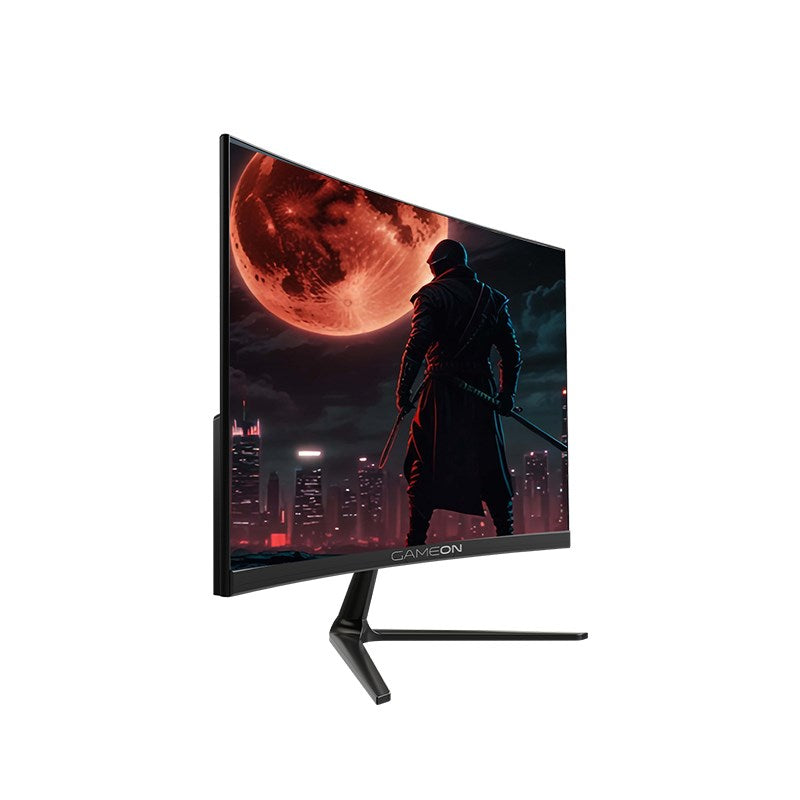

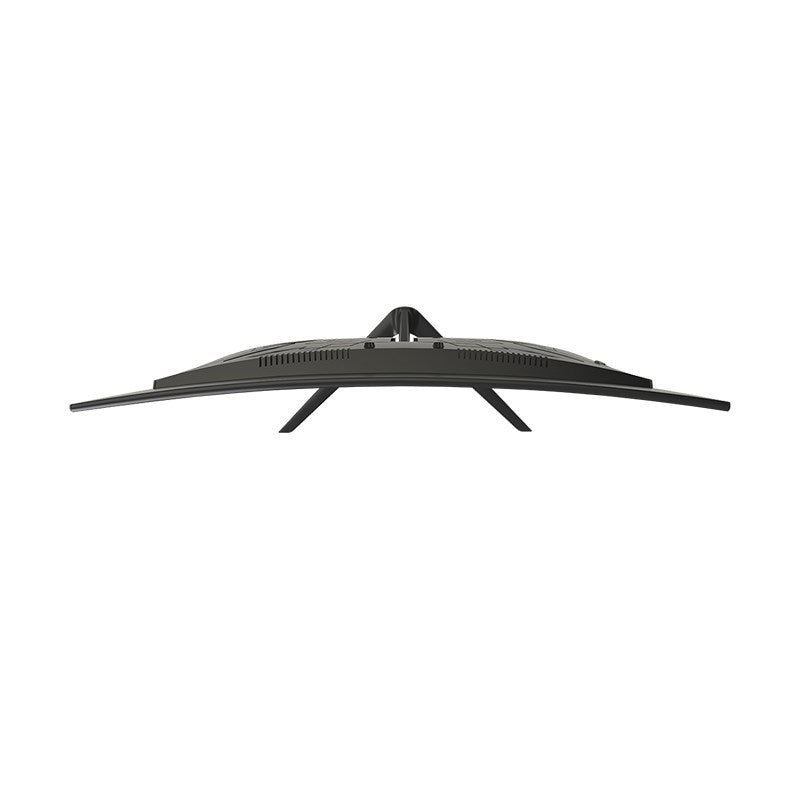

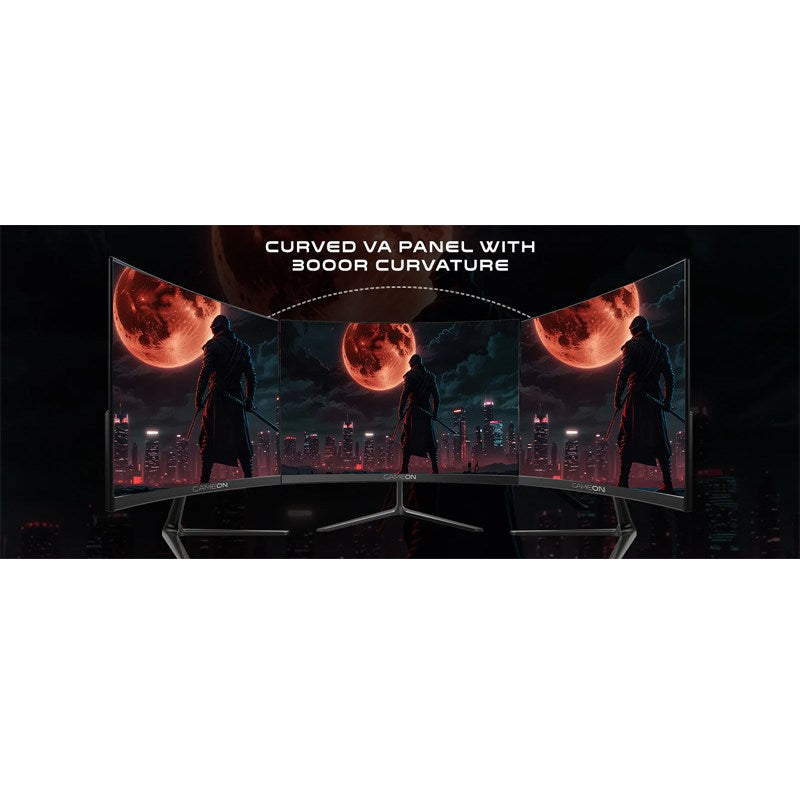

Curvature
|
R3000
|
Refresh Rate
|
DP: 180 Hz (HDMI: 144Hz)
|
Surface
|
Antiglare (Haze 25%), Hard coating (3H)
|
Brightness (Typical)
|
300 cd/m²
|
Contrast Ratio (Typical)
|
3000:1 (Typ.) (TM)
|
Pixel Pitch
|
0.2745×0.2745mm [92PPI]
|
Resolution (H x V)
|
1920×1080, FHD
|
Aspect Ratio
|
16:9 (H:V)
|
Response Time (Typical)
|
MPRT 0.5 ms
|
View Angles LR, UD (CR>10)
|
H/V 178°/178°
|
Display Colors
|
16.7M (8-bit)
|
AMD FreeSync
|
Support
|
G-Sync
|
Supported parts Open FreeSync
|
HDR
|
HDR300
|
Xbox
|
Support
|
PS5
|
Support
|
Game Plus
|
Support
|
DC Dimming
|
Support
|
Color Gamut (Coverage)
|
SRGB: 100% NTSC: 72%
|
Input 1
|
HDMI2.1*1
|
Input 2
|
DP1.4*1
|
Output 1
|
Audio out*1
|
Output 2
|
USB(5V/500MA)*1
|
Output 3
|
Speakers 8Ω2W*2
|
Power Consumption (Typical)
|
On: <36W, Standby <=0.5W, Off <=0.5W
|
Power Range
|
AC: 110-240V, DC: 12V3A
|
Power Mode Indicator Light
|
Power on: Blue (LED), Power saving: Blue Flicker (LED)
|
Operating Condition Temperature
|
0°C - 40°C
|
Operating Condition Humidity
|
20% ~ 85%, non-condensing
|
Storage Condition Temperature
|
-20°C - +60°C
|
Storage Condition Humidity
|
5% - 90%, non-condensing
|
Physical Dimension (W*D*H)
|
541*161*406mm
|
Nothing Base Dimension
|
541*41*323mm
|
Packing Dimension (W*D*H)
|
595*120*390mm
|
Net Weight
|
2.5 kg
|
Gross Weight
|
3.55 kg
|
Nothing Base Weight
|
2.38 kg
|
Tilt Angle
|
-5°~ 15°±2°
|
Stand Tilt
|
≤4mm
|
Base
|
V Shape
|
Kensington Lock
|
Yes
|

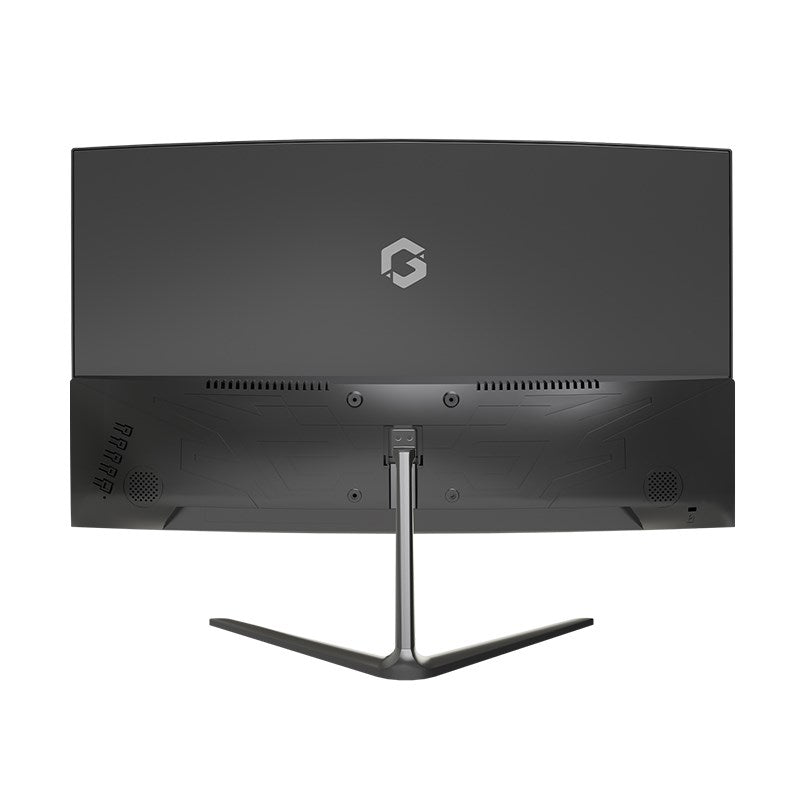

VESA Mounting
|
VESA 75*75mm
|
Tilt Push and Pull Force
|
1.0 kg ± 10%
|
GAP-OC
|
0.8mm, |left-right| ≤0.4mm
|
GAP
|
≤0.5mm
|
GAP OC
|
≤0.8mm
|
Front Control
|
Five-button: Menu > < EXIT Power (Menu minus plus exit power on/off)
|
On Screen Display
|
OSD English default with 8 languages
|
Default Set
|
Color: Warm X:0.313, Y:0.329, T:6500, Cool X:0.283, Y:0.297, T:9300, Normal X:0.299, Y:0.315, T:7500
|
Recall Brightness
|
180 cd/m²
|
