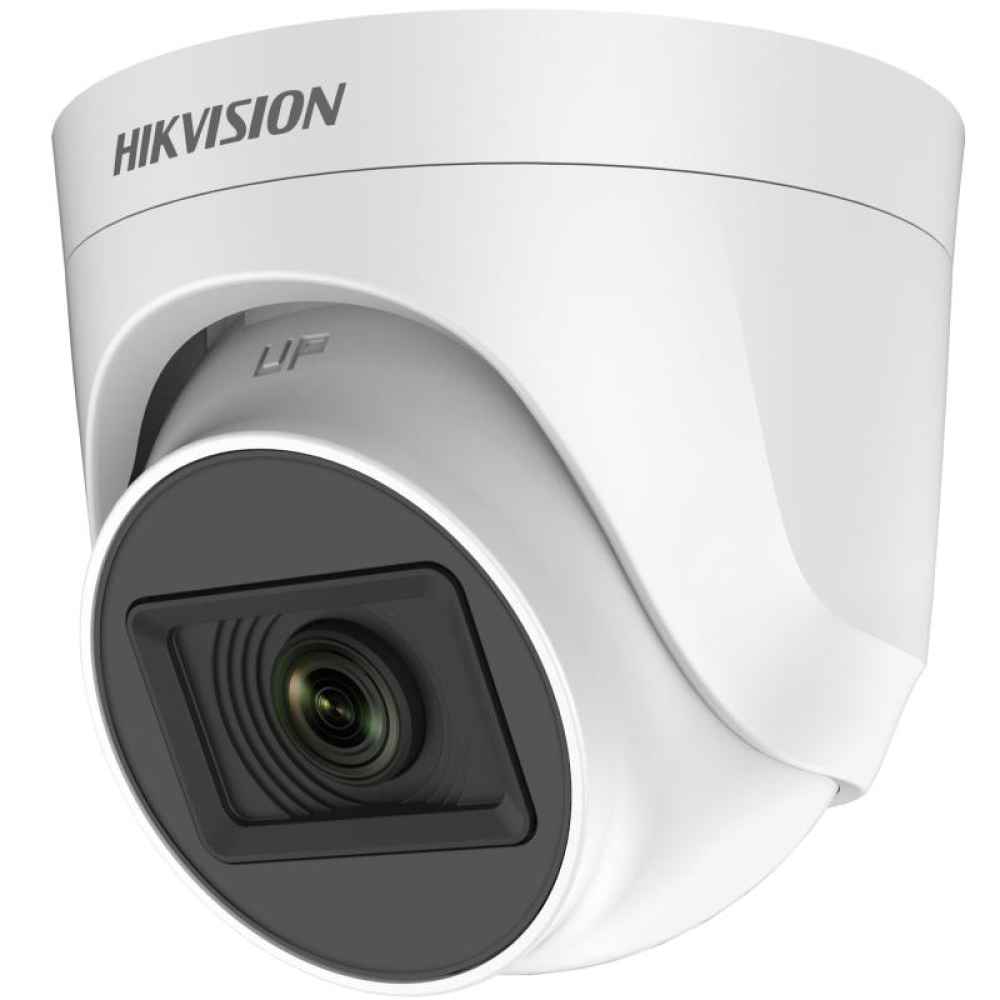

HIKVision DS-2CE76U1T-ITPF(2.8MM)//8MP TURRET CAM 000000000300611823

Description

Product Specifications

Brand: HikVision

Model Number: DS-2CE76U1T-ITPF

Availability: In stock

  • Camera
  • Image Sensor8.29 megapixel progressive scan CMOS
  • Max. Resolution3840 (H) × 2160 (V)
  • Min. IlluminationColor: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOVHorizontal FOV: 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
  • Lens MountM16
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 30 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;AGC
  • Frame Rate

    TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps

    CVI: 8MP@12.5fps, 8MP@15fps

    AHD: 8M@12.5fps, 8M@15fps

    CVBS: 960H P/N

  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC
  • Noise Reduction2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video Output1 HD analog output;Switchable TVI/AHD/CVI/CVBS
  • General
  • Power

    12 VDC ±25%, max. 5.3 W

    *You are recommended to use one power adapter to supply the power for one camera.

  • MaterialPlastic
  • DimensionØ 70 mm × 159.8 mm (Ø 2.76" × 6.29" )
  • WeightApprox. 180 g (0.40 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
