Panel Size
|
23.8" / 60.5 cm
|
Aspect Ratio
|
16:9
|
LCD Panel Type
|
IPS technology
|
Backlight Type
|
W-LED system
|
Pixel Pitch
|
0.275 x 0.275mm
|
Brightness
|
250 cd/m²
|
Display Colors
|
16.7 M
|
Contrast Ratio (typical)
|
1000:1
|
SmartContrast
|
Mega Infinity DCR
|
Response Time (typical)
|
4 ms (GtG)
|
Viewing Angle
|
178º (H) / 178º (V) @ C/R > 10
|
Maximum Resolution
|
1920 x 1080 @ 75Hz
|
Effective Viewing Area
|
527 (H) x 296.5 (V)mm
|
Scanning Frequency
|
30-83 kHz (H) / 56-76 Hz (V)
|
sRGB / Flicker-free
|
Yes / Yes
|
Pixel Density
|
93 PPI
|
LowBlue Mode
|
Yes
|
Display Screen Coating
|
Anti-Glare, 3H, Haze 25%
|
EasyRead
|
Yes
|
Adaptive Sync
|
Yes
|
Signal Input
|
VGA (Analog), HDMI (Digital, HDCP)
|
Sync Input
|
Separate Sync, Sync on Green
|
Audio (In/Out)
|
HDMI audio out
|
Plug & Play Compatibility
|
DDC/CI, Mac OS X, sRGB, Windows 10/8.1/8/7
|
User Convenience
|
Power On/Off, Menu/OK, Brightness/Up, Input/Down, SmartImage/Back
|
OSD Languages
|
Brazil Portuguese, Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Simplified Chinese, Swedish, Turkish, Traditional Chinese, Ukrainian
|
Other Convenience
|

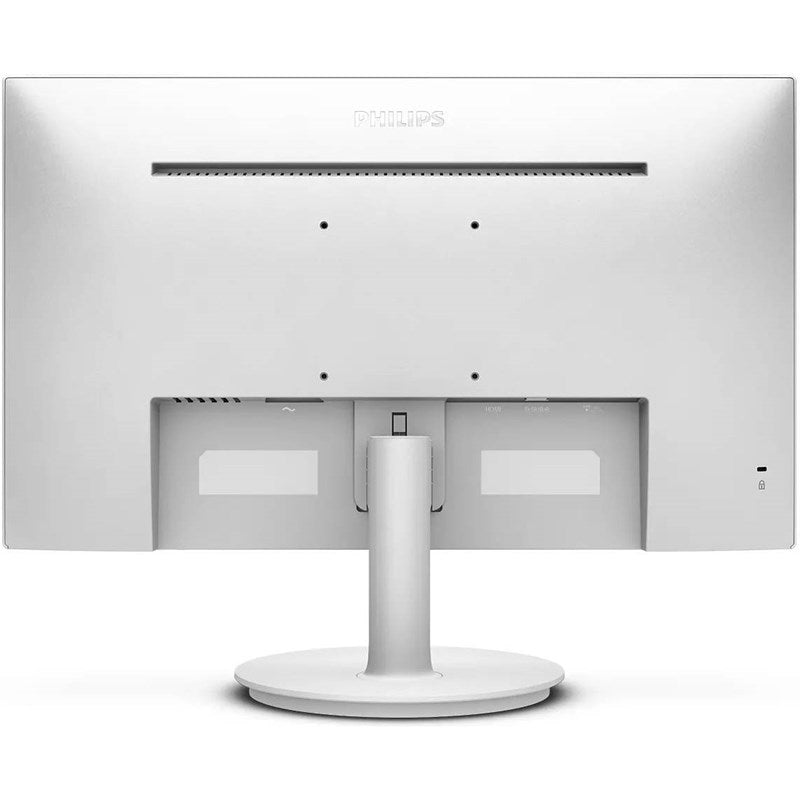

Kensington lock, VESA mount (100x100mm)
|

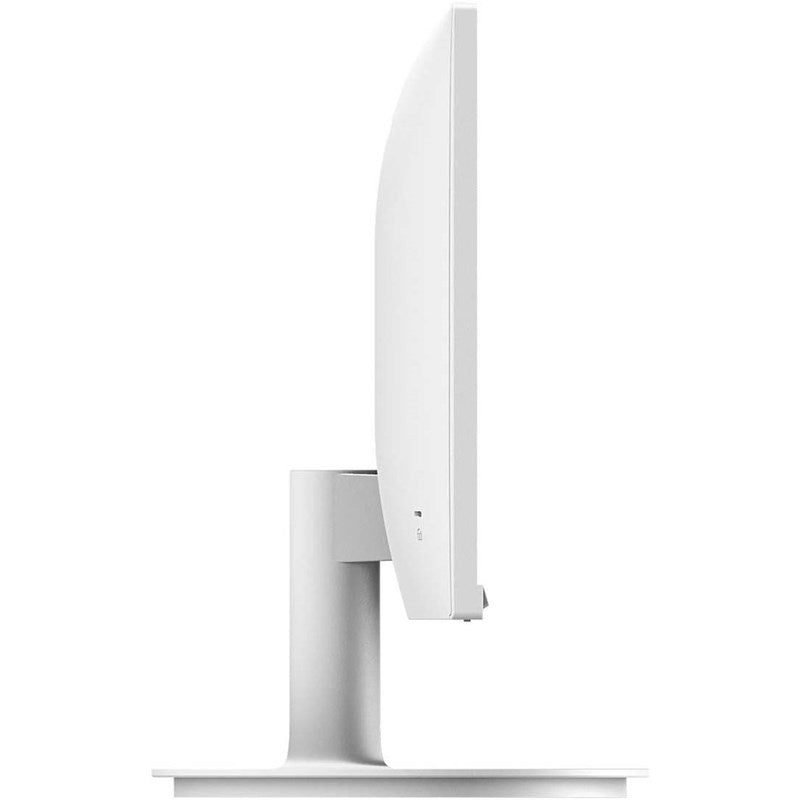

Stand
|
Tilt: -5/20 degrees
|
Power
|
Built-in, 100-240VAC, 50-60Hz Off mode: 0.3 W (typ.) On mode: 19.9 W (typ.) Standby mode: 0.5 W (typ.)
|
Power LED Indicator
|
Operation: White Standby Mode: White (blinking)
|
Dimensions
|
Product with stand: 540 x 416 x 220mm Product without stand: 540 x 322 x 51mm Packaging: 608 x 415 x 121mm
|
Weight
|
Product with packaging: 4.27 kg Product with stand: 3.06 kg Product without stand: 2.66 kg
|
Operating Conditions
|
Altitude: Operation: +12,000 ft (3,658 M), Non-operation: +40,000 ft (12,192 M) Temperature (Operation): 0°C to 40°C Relative Humidity: 20%-80% Temperature (Storage): -20°C to 60°C MTBF: 50,000 hours (Excluded backlight)
|
Sustainability
|
RoHS, Mercury Free, 100% Recyclable packaging material
|
Compliance and Standards
|
CB, CE Mark, FCC Class B, ICES-003
|
Cabinet
|
Color: White Finish: Textured
|
