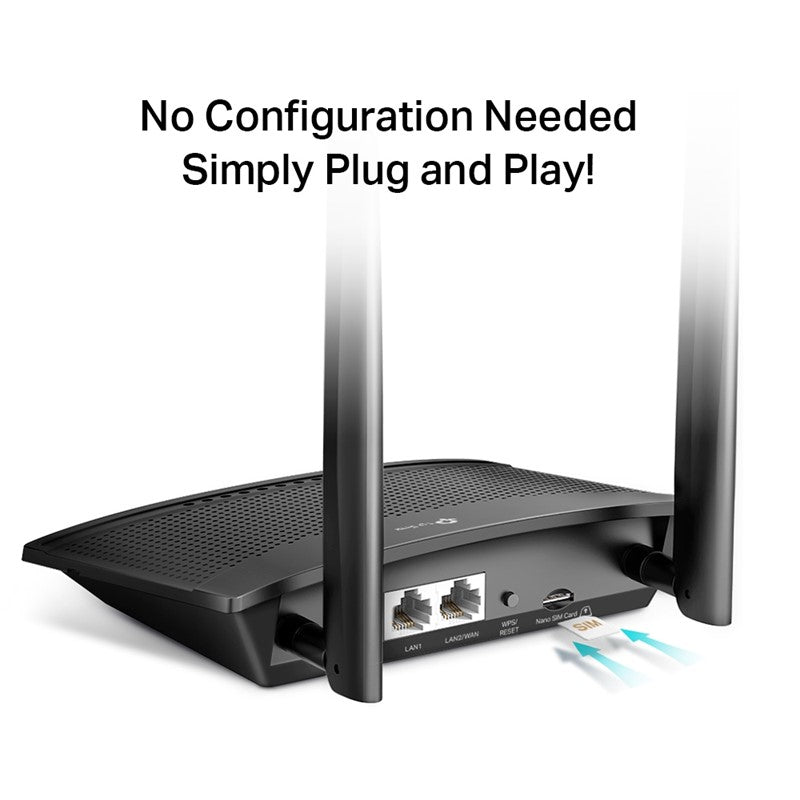

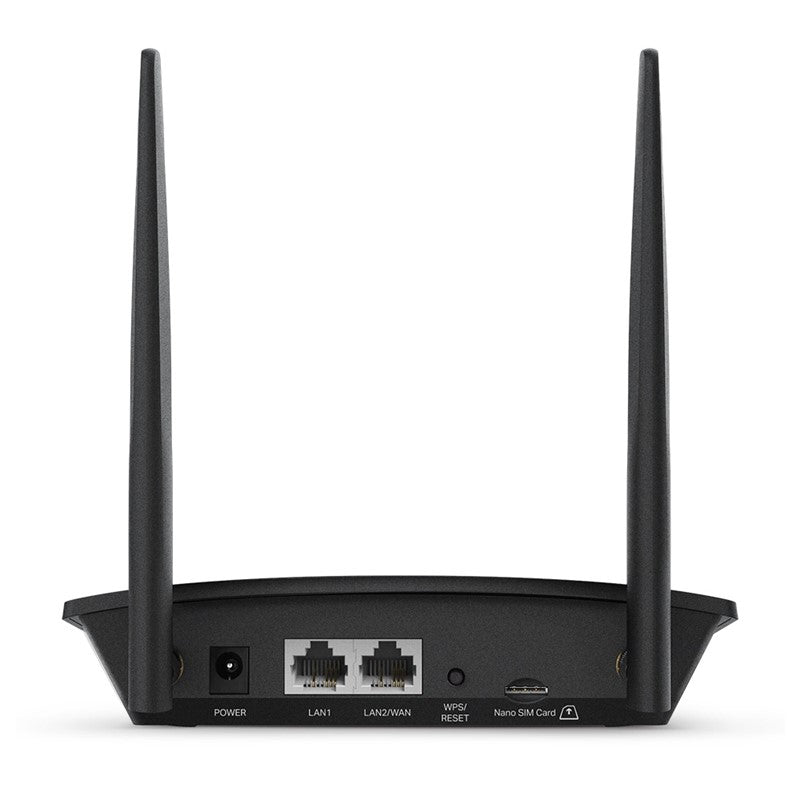

Interface
|
1 10/100Mbps LAN Port, 1 10/100Mbps LAN/WAN Port,
1 Nano SIM Card Slot
|
Button
|
WPS/Reset Button
|
External Power Supply(EU)
|
9V/0.85A
|
Dimensions ( W x D x H )
|
6.06×4.49×1.42 in ( 154×114×36 mm)
|
Antenna
|
2 Detachable External 4G LTE Antennas
|
Wireless features
|
Wireless Standards
|
IEEE 802.11b/g/n
|
Frequency
|
2.4 GHz
|
Signal Rate
|
300 Mbps
|
Reception Sensitivity
|
11g 54M: -74 dBm
11n HT20: -71 dBm
11n HT40: -68 dBm
|
Transmit Power
|
< 20 dBm (2.4 GHz)
|
Wireless Functions
|
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
Statistics
|
WAN Failover
|
Yes
|
Wireless Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
|
Network Type
|
4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz)
TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)
3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
Software Features
|
Security
|
IPv4 SPI Firewall, IP and MAC Address Binding
|
Operating Modes
|
3G/4G Router, Wireless Router
|
WAN Type
|
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
|
Management
|
Local Management, Remote Management
|
DHCP
|
Server, DHCP Client List, Address Reservation
|
Port Forwarding
|
ALG, Virtual Server, Port Triggering, UPnP, DMZ
|
Dynamic DNS
|
DynDns, NO-IP
|
Protocols
|
IPv4, IPv6
|
Guest Network
|
2.4 GHz Guest Network
|
Administration
|
Upgrade Firmware, Factory Default, System Log, Diagnostic Tools
|
OTHERS
|
Certification
|
CE, RoHS
|
Package Contents
|

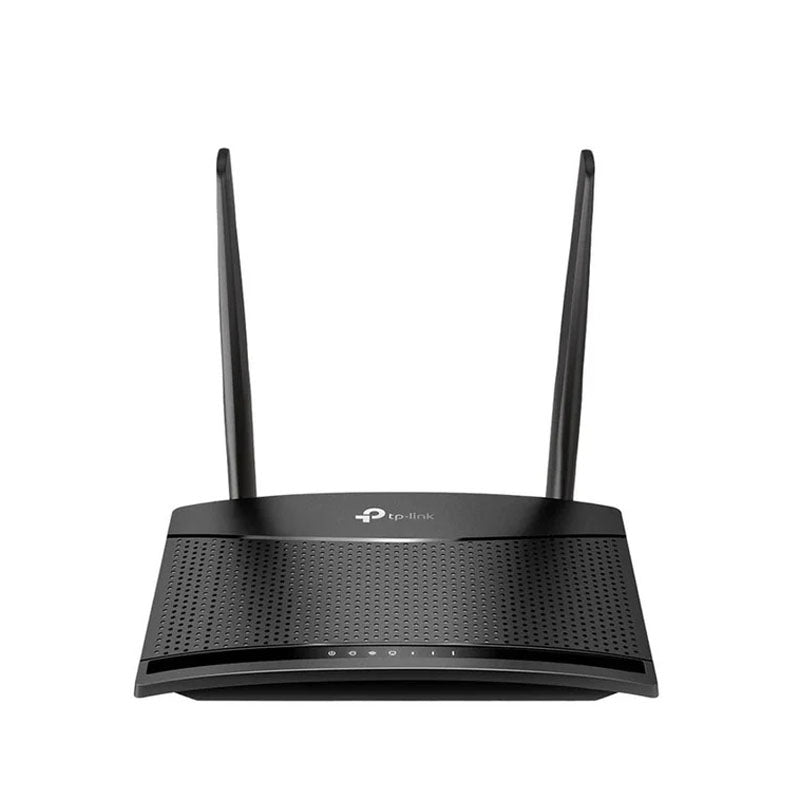

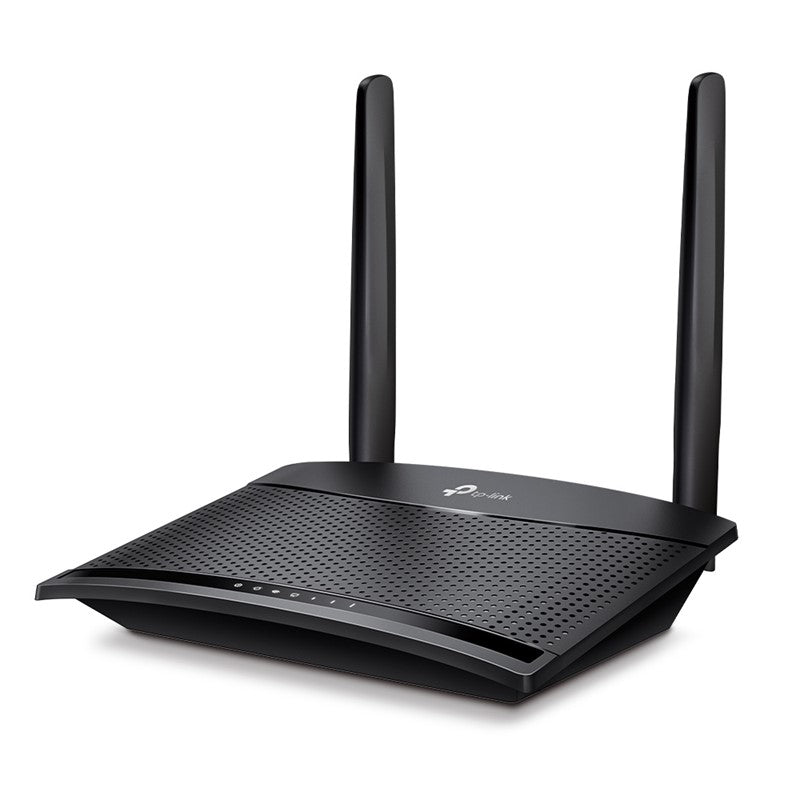

300 Mbps Wireless N 4G LTE TL-MR100
1.5m Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
|
Requirements
|
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Nano SIM Card
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
