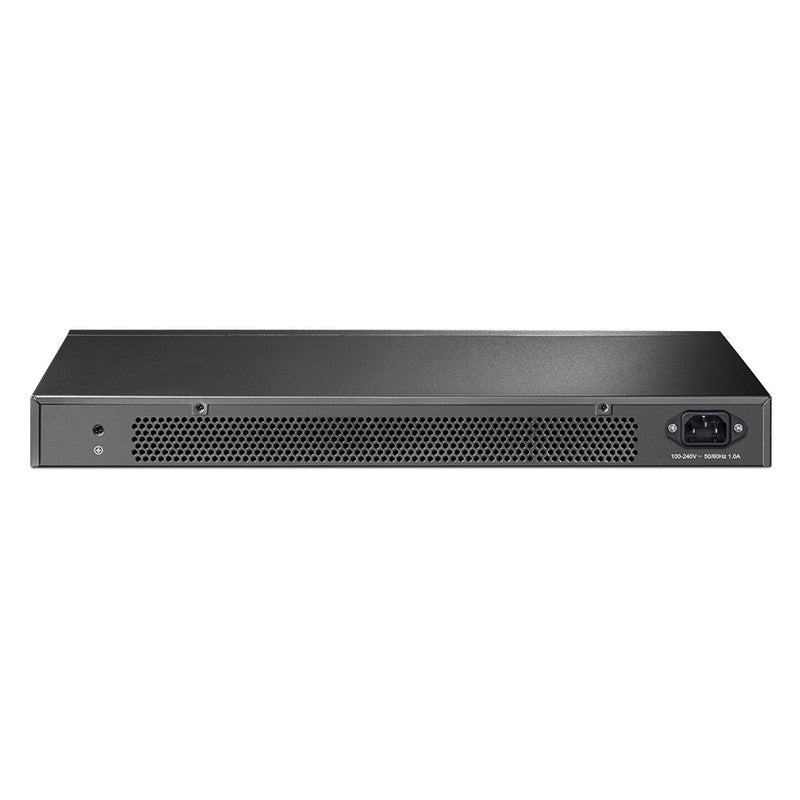

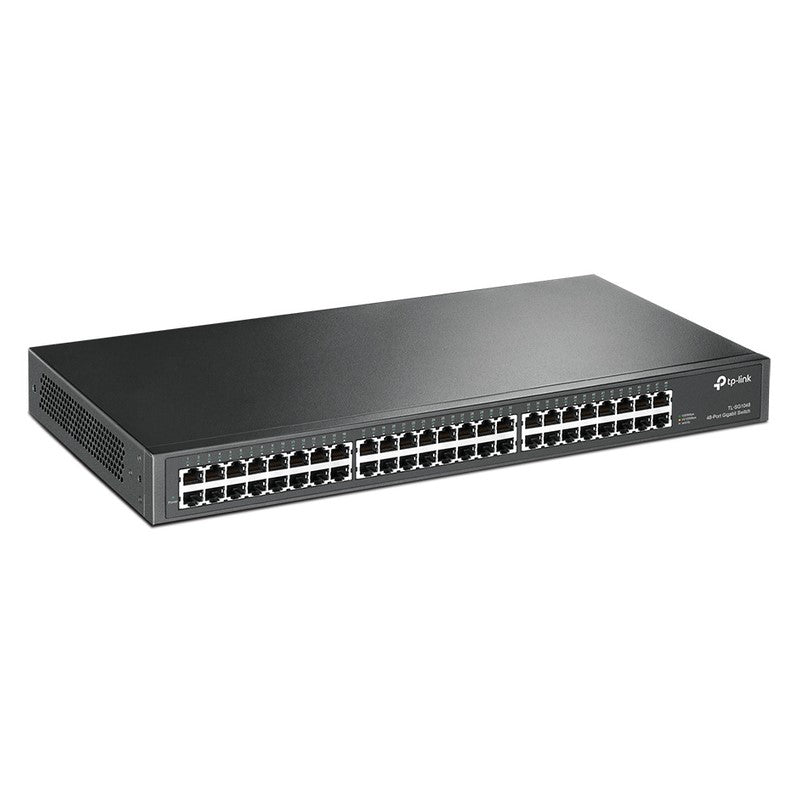

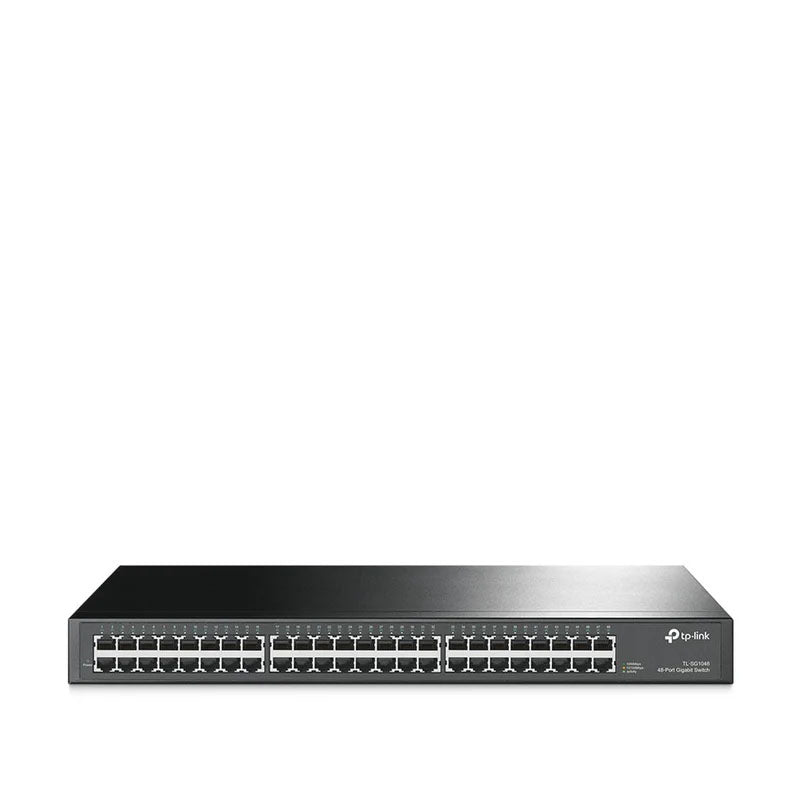

TP-Link 48 Port Gigabit Rackmount Switch, Black
 |
What This Product Does
A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.
|
 |
Ease of Use
The auto features of this gigabit switch make installation plug and play hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
|
 |
High Performance
The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.
|
Specifications
Brand
|
TP-Link
|
Type
|
Networking Switch
|
Color
|
Black
|
Interface
|
48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
|
Power Supply
|
100-240VAC, 50/60Hz
|
Dimensions ( W x D x H )
|
17.3 x 8.7 x 1.7 in.
|
Mounting
|
19" 1U Rack Mountable
(Mounting bracket included)
|
Max Power Consumption
|
32.3W
|
Switching Capacity
|
96Gbps
|
Packet Forwarding Rate
|
71.4Mpps
|
MAC Address Table
|
16K
|
Buffer Memory
|
12Mb
|
Jumbo Frame
|
12KB
|
Transfer Method
|
Store-and-Forward
|
|
