HARDWARE FEATURES
|
|

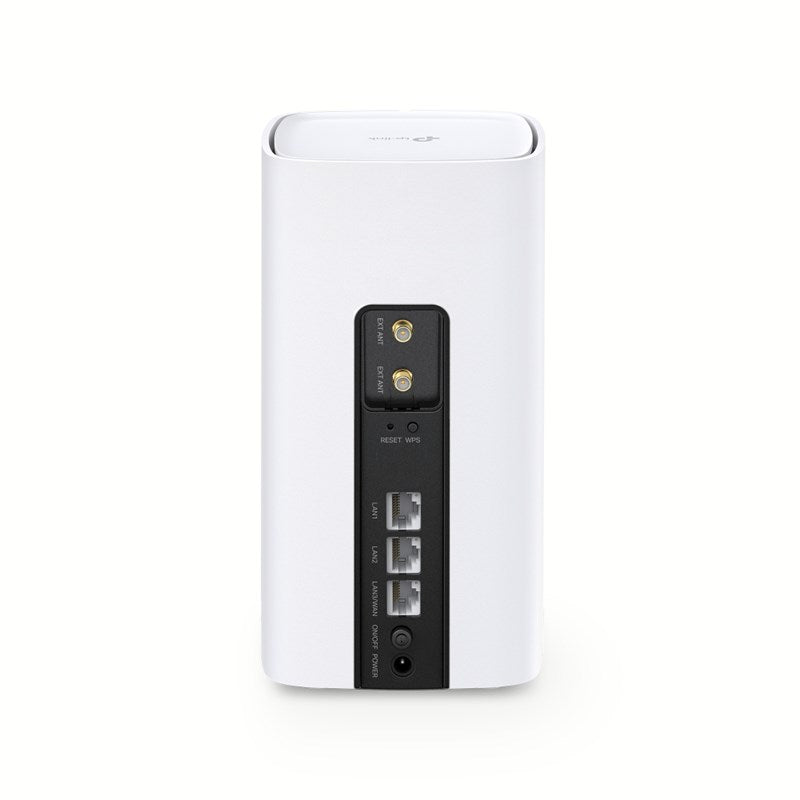

Interface
|
1 × 10/100/1000 Mbps LAN/WAN Port
|
|
2 × 10/100/1000 Mbps LAN Ports
|
|
1 × Nano SIM Card Slot
|
|
2 × 5G/4G External Antenna Ports
|
Button
|
WPS Button, Reset Button, Power On/Off Button, Wi-Fi On/Off Button
|
External Power Supply
|
Power Adapter: Input Power 100-240v~50/60 Hz 0.6A
|
|
Output parameter 12VDC 2A
|
Dimensions ( W x D x H )
|
3.9 × 3.9 × 7.5" ( 99 × 99 × 190mm)
|
Antenna
|
8 × 5G/LTE Internal Antennas
|
|
2 × Wi-Fi Internal Antennas
|
WIRELESS FEATURES
|
|
Wireless Standards
|
IEEE 802.11ax/ac/n/a 5 GHz
|
|
IEEE 802.11ax/n/b/g 2.4 GHz
|
Frequency
|
2.4 GHz and 5 GHz
|
Signal Rate
|
574 Mbps at 2.4 GHz, 1201 Mbps at 5 GHz
|
Reception Sensitivity
|
5GHz：
|
|
11a 54M：-80 dBm
|
|
11ax HE20：-68 dBm
|
|
11ax HE40：-65 dBm
|
|
11ax HE80：-62 dBm
|
|
11ac VHT20：-76 dBm
|
|
11ac VHT40：-72 dBm
|
|
11ac VHT80：-68 dBm
|
|
11n HT20：-79 dBm
|
|
11n HT40：-75 dBm
|
|
2.4GHz
|
|
11g 54M：-78 dBm
|
|
11ax HE20：-65 dBm
|
|
11ax HE40：-62 dBm
|
|
11ac VHT20：-73 dBm
|
|
11ac VHT40：-68 dBm
|
|
11n HT20：-75 dBm
|
|
11n HT40：-72 dBm
|
Transmit Power
|
<23dBm (5.15GHz~5.35GHz)
|
|
<30dBm (5.47GHz~5.71GHz)
|
|
<20dBm (2.4GHz)
|
Wireless Functions
|
Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless
|
|
Statistics
|
WAN Failover
|
Yes
|
Wireless Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
|
Network Type
|
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/3700/3500 MHz)
|
|
FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)
|
|
TDD-LTE: B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)
|
|
DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)
|
SOFTWARE FEATURES
|
|
Quality of Service
|
Prioritizes network traffic by device or application
|
Security
|
DoS, IPv4 SPI Firewall, IPv6 Firewal, IP and MAC Address Binding, Access Control
|
WAN Type
|
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
|
Management
|
TP-Link Cloud, Local Management, Remote Management
|
DHCP
|
Server, DHCP Client List, Address Reservation
|
Port Forwarding
|
ALG, Virtual Server, Port Triggering, UPnP, DMZ
|
Dynamic DNS
|
TP-Link, DynDns, NO-IP
|
VPN
|
PPTP VPN, IPSec VPN , OpenVPN
|
Access Control
|
Parental Control, Local Management Control
|
Firewall Security
|
DoS, SPI Firewall, IP Address Filter/Domain Filter,
|
|
IP and MAC Address Binding
|
Protocols
|
IPv4, IPv6
|
Guest Network
|
2.4 GHz Guest Network x 1
|
|
5 GHz Guest Network x 1
|
OTHERS
|
|
Certification
|
CE, RoHS
|
System Requirements
|
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,
|
|
NetWare, UNIX or Linux
|
|
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
|
|
Java-enabled browser
|
|
Nano SIM Card
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
|
|
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
|
|
Operating Humidity: 10%~90% non-condensing
|
|
Storage Humidity: 5%~90% non-condensing
|
