Description

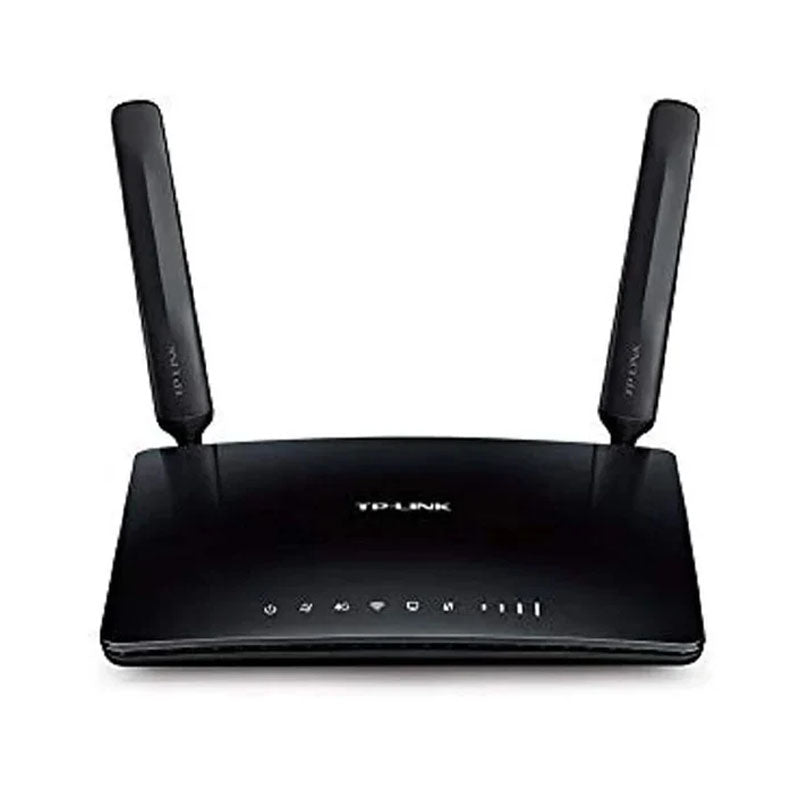

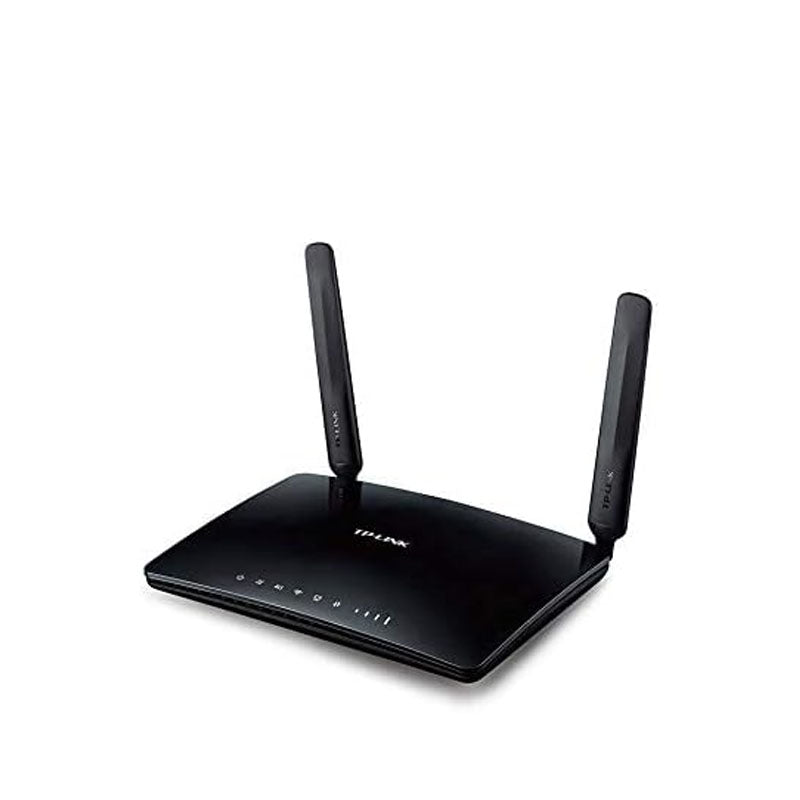

TP-LINK Archer AC750 Wireless Dual Band 4G LTE Router with Built-in 4G LTE Modem
Take full advantage of cutting-edge 4G LTE networks with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks - utilising the 2.4GHz and 5GHz bands - provide optimised performance and minimise signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage. With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
The Archer MR200 offers unmatched convenience and versatility, with the ability to quickly establish powerful wireless networks. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments.
With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
Unlocked Wi-Fi Where You Need It
The Archer MR200 is the right solution whether you're at home or working in a remote location.
Unlocked to all networks so, use the sim of your choice. Simply plug your SIM card in to boost on-site productivity and stay connected in a diverse range of environments.
It allows you to access and share your 4G LTE or 3G mobile broadband connections remotely through a secure wireless network or any of the four Ethernet ports. From the exhibition centre to your living room, the Archer MR200 has you covered.
Stable Dual Band 4G LTE Coverage
The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733 Mbps. The two distinct wireless networks, utilizing the 2.4 GHz and 5 GHz bands, provide optimised performance and minimise signal interference. The advanced antennas and the wireless technology allows you to enjoy stable connections and incredible coverage.
Share Your 4G LTE Network
Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150 Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
No Configuration Required

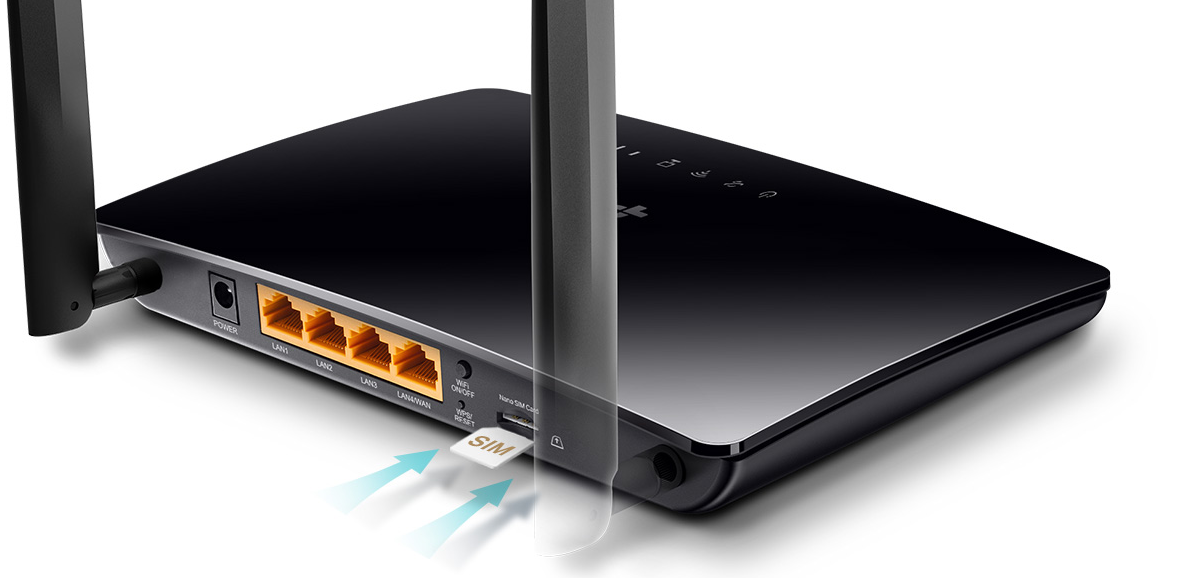

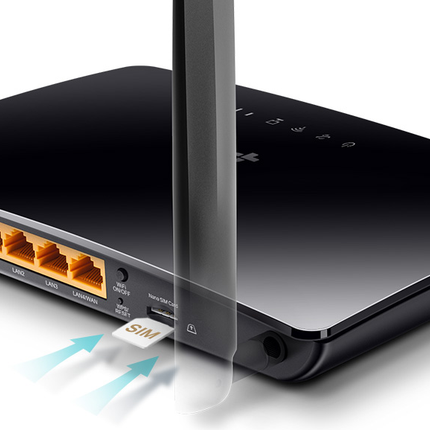

With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier. No USB dongle needed.
Available WAN Connection as Backup
With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems
Specifications
| HARDWARE FEATURES |
| Interface |

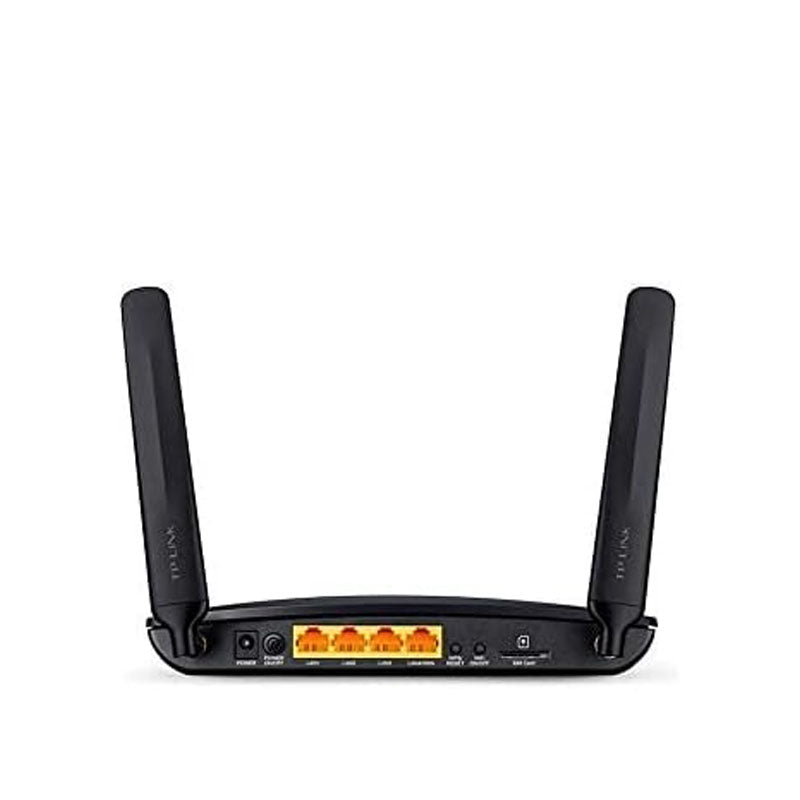

3 10/100Mbps LAN Ports, 1 10/100Mbps LAN/WAN Port, 1 SIM Card Slot |
| Button |
WPS/Reset Button, Wireless On/Off Button, Power On/Off Button |
| Antenna |
3 Internal Wi-Fi Antennas,
2 Detachable External 4G LTE Antennas |
| External Power Supply |
12V/1A |
| Dimensions ( W x D x H ) |
7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm) |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz |
| Frequency |
2.4GHz and 5GHz |
| Signal Rate |
300Mbps at 2.4GHz, 433Mbps at 5GHz |
| Reception Sensitivity |
5GHz: 11a 54M: -74dBm
11ac HT20: -67dBm
11ac HT40: -64dBm
11ac HT80 : -60dBm
11n HT20: -71dBm
11n HT40: -70dBm
2.4G: 11g 54M: -76dBm
11n HT20: -73dBm
11n HT40: -67dBm |
| Transmit Power |
CE: <20dBm(2.4GHz), <23dBm(5GHz) |
| Wireless Functions |
Enable/Disable Wireless Radio, WDS Bridge, WMM,
Wireless Statistics |
| Wireless Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions |
| Network Type |
4G: FDD-LTE B1/B3/B7/B8/B20 (2100/1800/2600/900/800MHz)
TDD-LTE B38/B40 (2600/2300MHz)
3G: DC-HSPA+/HSPA+/HSPA/UMTS B1/B8 (2100/900MHz)
2G: EDGE/GPRS/GSM Quad Band (850/900/1800/1900MHz) |
| SOFTWARE FEATURES |
| Quality of Service |
Trafc Control(IP QoS) |
| Operating Modes |
3G/4G Router, Wireless Router |
| WAN Type |
Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Management |
Access Control, Local Management, Remote Management |
| DHCP |
Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS |
DynDns, NO-IP |
| VPN Pass-Through |
PPTP, L2TP, IPSec |
| Access Control |
Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management |
| Firewall Security |
DoS, SPI Firewall, IP Address Filter/Domain Filter,
IP and MAC Address Binding |
| Protocols |
Supports IPv4 and IPv6 |
| Guest Network |
2.4GHz guest network x 1, 5GHz guest network x 1 |
| IPSec VPN |
Supports up to 10 IPSec VPN tunnels |
|
OTHERS
|
|
Certification
|
CE, FCC, RoHS
|
|
Package Contents
|
AC750 Wireless Dual Band 4G LTE Router, Archer MR200
RJ45 Ethernet Cable
Power Adapter
Quick Installation Guide
Micro to Standard SIM Card Adapter
Nano to Standard SIM Card Adapter
|
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher,or other Java-enabled browsers
SIM Card
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
