Standards
|
IEEE 802.11ax 6 GHz,
|
|
IEEE 802.11ax/ac/n/a 5 GHz,
|
|
IEEE 802.11ax/n/b/g 2.4 GHz
|
WiFi Speeds
|
AXE5400
|
|
6 GHz: 2402 Mbps (802.11ax)
|
|
5 GHz: 2402 Mbps (802.11ax)
|
|
2.4 GHz: 574 Mbps (802.11ax)
|
WiFi Range
|
2-3 Bedroom Houses
|
|
|
|
6× Fixed High-Performance Antennas
|
|
Multiple antennas form a signal-boosting array to cover more directions and large areas
|
|
|
|
Beamforming
|
|
Concentrates wireless signal strength towards clients to expand WiFi range
|
|
|
|
High-Power FEM
|
|
Improves transmission power to strengthen signal coverage
|
WiFi Capacity
|
Very High
|
|
|
|
Tri-Band
|
|
Allocate devices to different bands for optimal performance
|
|
|
|
OFDMA
|
|
Simultaneously communicates with multiple Wi-Fi 6 clients
|
|
|
|
Airtime Fairness
|
|
Improves network efficiency by limiting excessive occupation
|
|
|
|
DFS
|
|
Access an extra band to reduce congestion
|
|
|
|
6 Streams
|
|
Connect your devices to more bandwidth
|
Working Modes
|
Router Mode
|
|
Access Point Mode
|
Processor
|
1.7 GHz Quad-Core CPU
|

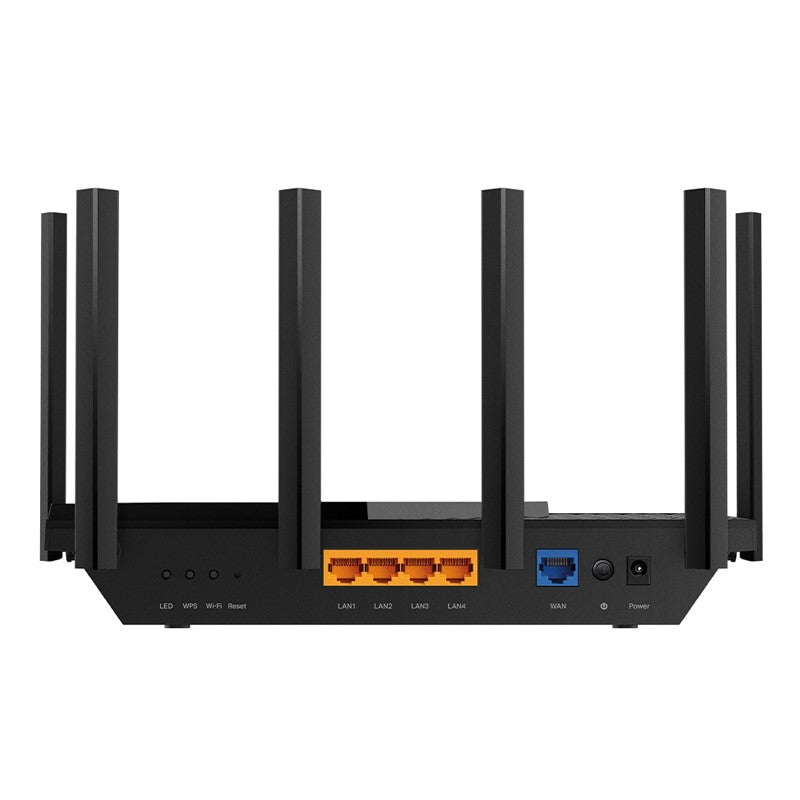

Ethernet Ports
|
1× Gigabit WAN Port
|
|
4× Gigabit LAN Ports
|
USB Support
|
1× USB 3.0 Port
|
|
|
|
Supported Partition Formats:
|
|
NTFS, exFAT, HFS+, FAT32
|
|
|
|
Supported Functions:
|
|
Apple Time Machine
|
|
FTP Server
|
|
Media Server
|
|
Samba Server
|
Buttons
|
Wi-Fi On/Off Button
|
|
Power On/Off Button
|
|
LED On/Off Button
|
|
WPS Button
|
|
Reset Button
|
Power
|
12 V ⎓ 2.5 A
|
WiFi Reception Sensitivity
|
2.4 GHz:
|
|
11ax HE20 MCS0:-95dBm, 11ax HE20 MCS11:-64dBm
|
|
11ax HE40 MCS0:-92dBm, 11ax HE40 MCS11:-62dBm
|
|
5 GHz:
|
|
11ax HE20 MCS0:-94dBm, 11ax HE20 MCS11:-63dBm
|
|
11ax HE40 MCS0:-91dBm, 11ax HE40 MCS11:-60dBm
|
|
11ax HE80 MCS0:-88dBm, 11ax HE80 MCS11:-57dBm
|
|
11ax HE160 MCS0:-85dBm, 11ax HE160 MCS11:-54dBm
|
|
6 GHz:
|
|
11ax HE20 MCS0:-93dBm, 11ax HE20 MCS11:-62dBm
|
|
11ax HE40 MCS0:-90dBm, 11ax HE40 MCS11:-59dBm
|
|
11ax HE80 MCS0:-87dBm, 11ax HE80 MCS11:-56dBm
|
|
11ax HE160 MCS0:-84dBm, 11ax HE160 MCS11:-53dBm
|
