Ports
|

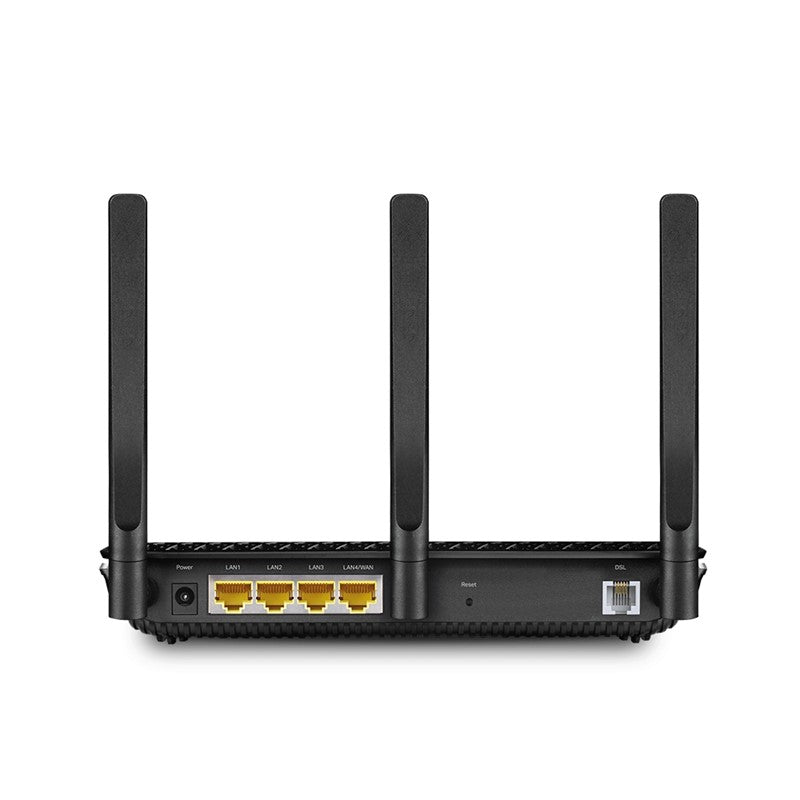

3 Gigabit LAN Ports, 1 Gigabit LAN/WAN Port, 1 RJ11 Port,
|
|
|
1 USB Port
|
|
Button
|
WPS Button, Reset Button, Power On/Off Button, Wi-Fi Button, LED
|
|
|
On/Off Button
|
|
External Power Supply
|
12V/1.5A
|
|
IEEE Standards
|
IEEE 802.3, IEEE 802.3u, 802.3ab
|
|
VDSL2 Standards
|
ITU G.993.2, Up to 35b profile (POTS)
|
|
|
ITU-T G.993.5 (G.vector)
|
|
|
ITU-T G.998.4 (G.INP)
|
|
ADSL Standards
|
Full-rate ANSI T1.413 Issue 2,
|
|
|
ITU-T G.992.1(G.DMT),
|
|
|
ITU-T G.992.2(G.Lite),
|
|
ADSL2 Standards
|
ITU-T G.992.3 (G.DMT.bis),
|
|
ADSL2+ Standards
|
ITU-T G.992.5
|
|
Dimensions ( W x D x H )
|
8.5 × 6.5 × 1.4 in (216 × 164 × 36.8 mm)
|
|

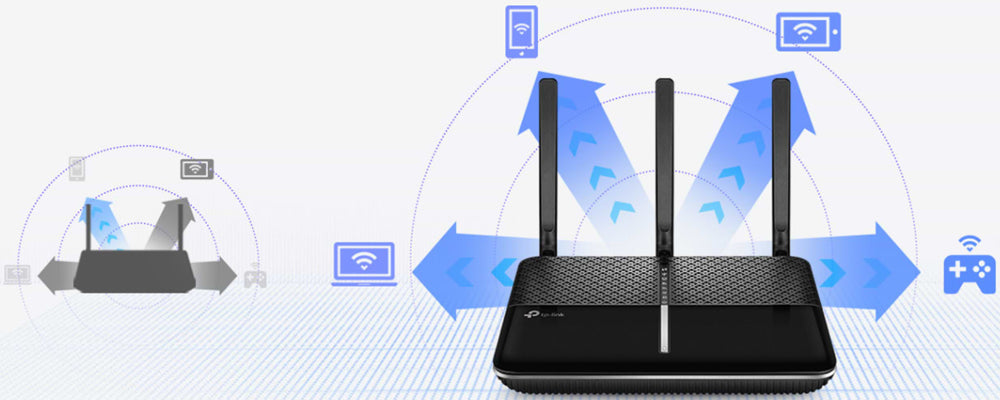

Antenna Type
|
3 External Dual Band Antennas + 1 Internal 5 GHz Antenna
|
|
Wireless Standards
|
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
|
|
Frequency
|
2.4 GHz and 5 GHz
|
|
Signal Rate
|
1733 Mbps on 5 GHz, 300Mbps on 2.4 GHz
|
|
Transmit Power
|
<20dBm (2.4 GHz), <23dBm (5 GHz)
|
|
Wireless Functions
|
Enable/Disable Wireless Radio, Wireless Statistics
|
|
Wireless Security
|
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
|
|
|
encryptions
|
|
Wireless Schedule
|
Support 2.4 GHz and 5 GHz Wireless Schedule
|
|
Security
|
NAT Firewall, SPI Firewall, Access Control, Service Filtering, Denial of Service (DoS), SYN Flooding, Ping of Death, IP and MAC Address Binding
|
|
Operating Modes
|

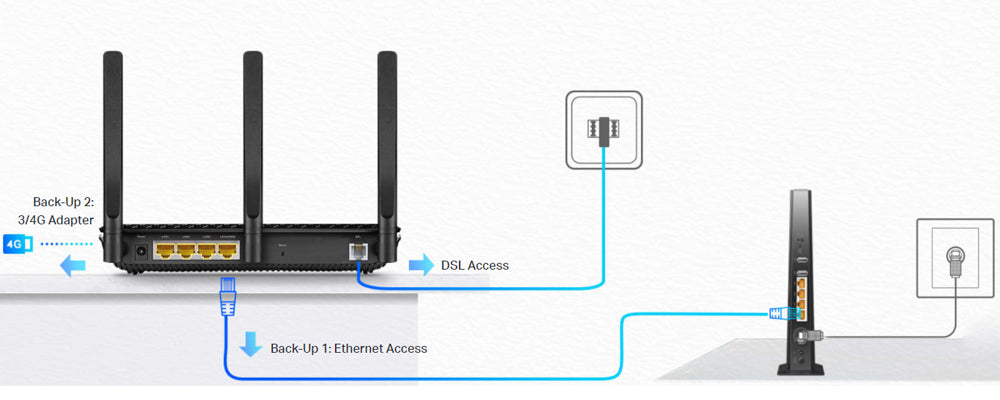

VDSL/ADSL Modem Router, 3G/4G Router, Wireless Router
|
|
Management
|
Web-Based Configuration (HTTP / HTTPS ), Remote management,
|
|
|
Command Line Interface, SSL for TR-069, SNMP v1/2c, Firmware Upgrade, Diagnostic Tools, Free Online Firmware Update
|
|
DHCP
|
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
|
|
Port Forwarding
|
Virtual Server, Port Triggering, DMZ, ALG, UPnP
|
|
Dynamic DNS
|
DynDns, NO-IP, TP-Link
|
|
VPN
|
OpenVPN, PPTP VPN, IPSec VPN
|
|
Protocols
|
Supports IPv4 and IPv6
|
|
ATM/PPP Protocols
|
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364), PPP over
|
|
|
Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483 Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
|
|
Advanced Features
|
Parental Controls, Network Address Translation (NAT), Static
|
|
|
Routing, RIP v1/v2 (optional), DNS Relay, DDNS, IGMP V1/V2/V3
|
|
Guest Network
|
2.4 GHz Guest Network, 5 GHz Guest Network
|
|
IPSec VPN
|
Supports up to 10 IPSec VPN tunnels
|
