TP-LINK Archer VR300 AC1200 Wireless VDSL/ADSL Modem Router
 |
Upgrade AC Wi-Fi to Enjoy Wireless Entertainment
As a powerful DSL modem router, the Archer VR300 makes full use of its Wi-Fi abilities by providing combined dual band Wi-Fi speeds of up to 1200Mbps. 300Mbps on 2.4GHz is perfect for everyday surfing and emailing, while 867Mbps on 5GHz provides lag-free HD streaming and gaming.
|
 |
Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR300 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR300 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
|
 |
External Antennas Expand Wireless Coverage
Four external antennas with advanced connection technology allow you to maintain impressive speeds, even over greater distances. This means that you can enjoy incredible wireless coverage and reliability in any part of your large home or office.
|
Specifications

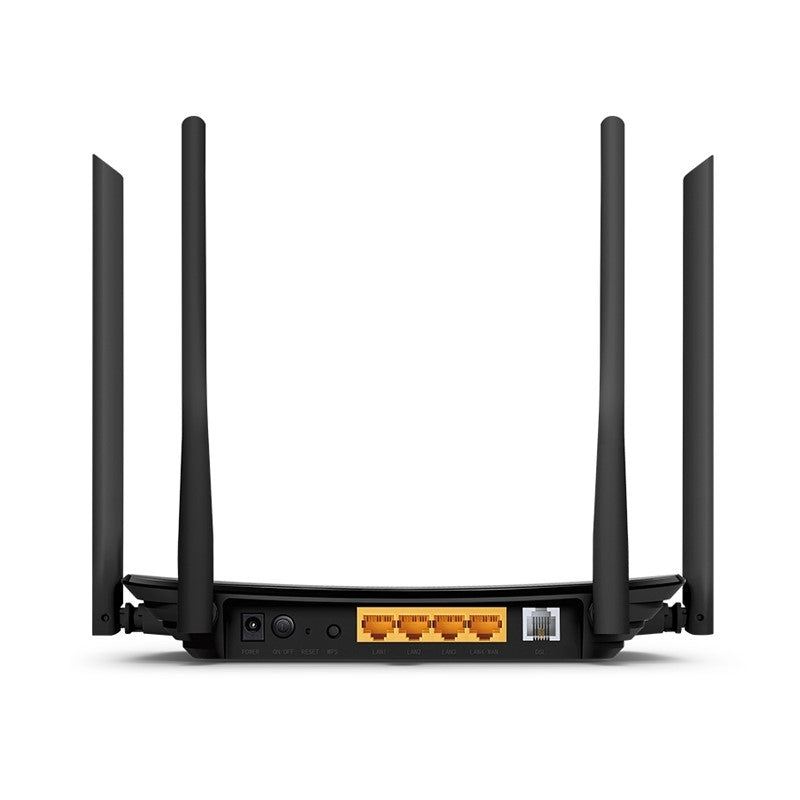

Interface
|
3 10/100 RJ45 LAN Ports
|
|
1 10/100 RJ45 LAN/WAN Port
|
|
1 RJ11 Port
|
Button
|
WPS Button
|
|
Power On/Off Button
|
|
Reset Button
|
Power Supply
|
12V/1A
|
VDSL2 Standards
|
ITU G.993.2, Up to 17a pro¬le (POTS)
|
|
ITU-T G.993.5 (G.vector)
|
|
ITU-T G.998.4 (G.INP)
|
ADSL Standards
|
Full-rate ANSI T1.413 Issue 2,
|
|
ITU-T G.992.1(G.DMT),
|
|
ITU-T G.992.2(G.Lite),
|
|
ITU-T G.994.1 (G.hs),
|
|
ITU-T G.995.1
|
ADSL2 Standards
|
ITU-T G.992.3 (G.DMT.bis),
|
|
ITU-T G.992.4 (G.lite.bis)
|
ADSL2+ Standards
|
ITU-T G.992.5
|
Dimensions ( W x D x H )
|
230*144*37 mm
|
Antenna Type
|
4 fixed external antennas
|
Wireless Standards
|
IEEE 802.11a/n/ac 5GHz,
|
|
IEEE 802.11b/g/n 2.4GHz
|
Wireless Speeds
|
867Mbps at 5GHz
|
|
300Mbps at 2.4GHz
|
Transmit Power
|
2.4GHz <20dBm(EIRP)
|
|
5GHz <23dBm(EIRP)
|
Wireless Functions
|
Access Point / Wireless Bridge, Wireless Enable\Disable, SSID Broadcast Enable\Disable
|
Wireless Security
|
WEP, WPA/WPA2, WPA-PSK/WPA-PSK2
|
|
encryptions, QSS(WPS)
|
Security
|
NAT Firewall, Access Control, IP and MAC Address Binding
|
Operating Modes
|
VDSL/ADSL Modem Router, Wireless Router
|
Management
|
Web Based Con¬guration(HTTP), Remote management,
|
|
command Line Interface, SSL for TR-069, SNMP v1/2c, Web Based Firmware
|
|
Upgrade, Diagnostic Tools
|
DHCP
|
Server, Client, DHCP Client List, Address Reservation, DHCP Relay
|
Port Forwarding
|
Virtual Server, Port Triggering, DMZ, ALG, UPnP
|
Dynamic DNS
|
DynDns, NO-IP
|
VPN Pass-Through
|
PPTP, L2TP, IPSec Passthrough
|
Protocols
|
Supports IPv4 and IPv6
|
ATM/PPP Protocols
|
ATM Forum UNI3.1/4.0, PPP over ATM (RFC 2364),
|
|
PPP over Ethernet (RFC2516), IPoA (RFC1577/2225), MER\IPoE (RFC 1483
|
|
Routed), Bridge (RFC1483 Bridge), PVC – Up to 8 PVCs
|
Advanced Functions
|
Parental Control, Network Address Translation(NAT),
|
|
Port Mapping(Grouping), Static Routing, DNS Relay,
|
|
DDNS, IGMP V1/V2/V3
|
Guest Network
|
2.4GHz guest network, 5GHz guest network
|
Certification
|
CE, RoHS, RCM
|
Package Contents
|
· AC1200 Wireless VDSL/ADSL Modem Router Archer VR300
|
|
· External Splitter
|
|
· RJ11 DSL Cable
|
|
· RJ45 Ethernet Cable
|
|
· Power Adapter
|
|
· Quick Installation Guide
|
System Requirements
|
· Microsoft Windows XP/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
|
|
· Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browser
|
|
· Subscription with an Internet Service Provider (for Internet access)
|
Environment
|
· Operating Temperature: 0℃~40℃ (32℉ ~104℉)
|
|
· Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
|
|
· Operating Humidity: 10%~90% non-condensing
|
|
