Wireless
|
WiFi Speeds
|
BE19000 • 6 GHz: 11520 Mbps (802.11be) • 5 GHz: 5760 Mbps (802.11be) • 2.4 GHz: 1376 Mbps (802.11be)
|
WiFi Range
|
4 Bedroom Houses8× Optimally Positioned Antennas Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM Improves transmission power to strengthen signal coverage
|
WiFi Capacity
|
High, up to 100 DevicesTri-Band Allocate devices to different bands for optimal performance
4×4 MU-MIMO Simultaneously communicates with multiple MU-MIMO clients
OFDMA Simultaneously communicates with multiple clients
Airtime Fairness Improves network efficiency by limiting excessive occupation
DFS Access an extra band to reduce congestion
12 Streams Connect your devices to more bandwidth
|
Working Modes
|
• Router Mode • Access Point Mode
|
Advanced Functions
|
• Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa and Google Assistant • IoT Network
|
Security
|
Network Security
|
• SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway
• HomeShield SecurityReal-Time IoT Protection Malicious Site Blocker Intrusion Prevention System DDoS Attack Prevention Home Network Scanner
|
Guest Network
|
• 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network
|
VPN Server
|
• OpenVPN Server • PPTP VPN Server • L2TP VPN Server
|
VPN Client
|
• Open VPN Client • PPTP VPN Client • L2TP VPN Client
|
WiFi Encryption
|
• WPA • WPA2 • WPA3 • WPA/WPA2-Enterprise (802.1x)
|
Hardware
|

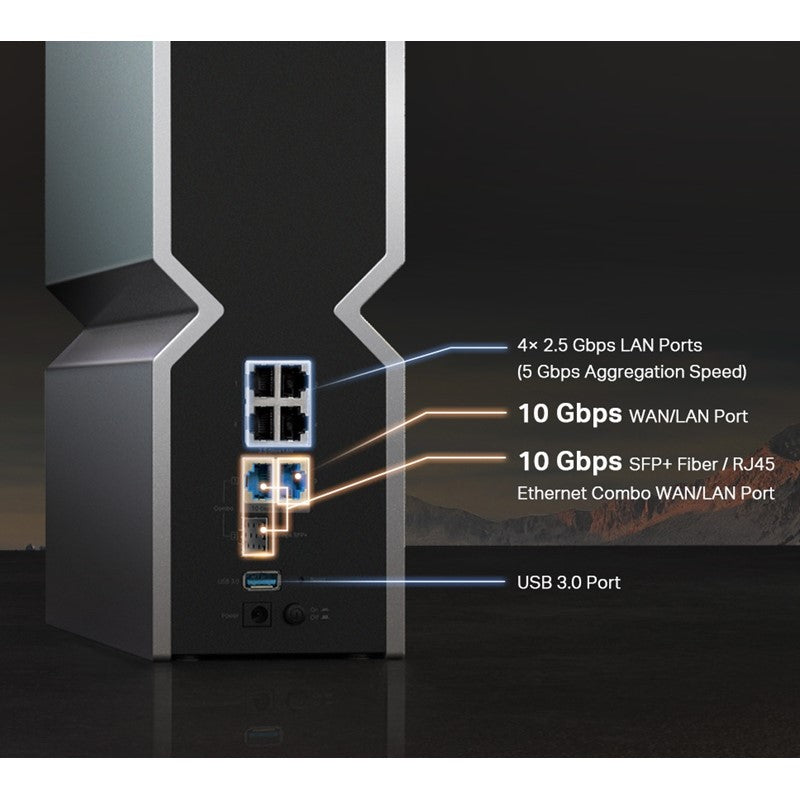

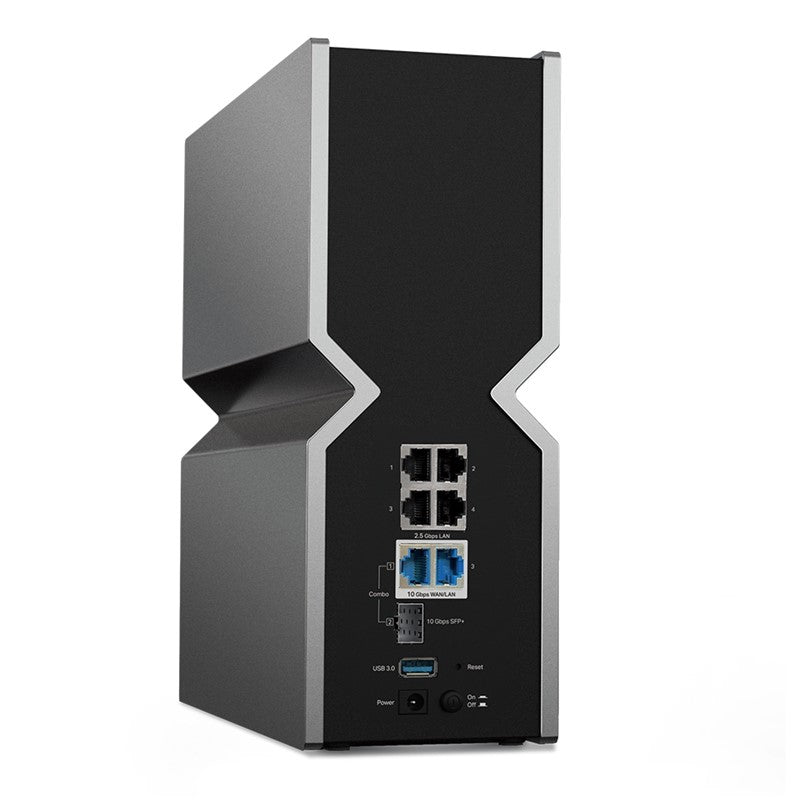

Ethernet Ports
|
• 1× 10 Gbps WAN/LAN • 1× 10 Gbps SFP+/RJ45 Combo WAN/LAN • 4× 2.5 Gbps LAN
|
USB Support
|
1× USB 3.0
• Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
• Supported Functions: FTP Server Media Server Samba Server
|
Buttons
|
• WPS • LED • Wi-Fi
|
Power
|
15 V ⎓ 5 A
|
Dimensions (W x D x H)
|
11.9 × 10.3 × 3.8 in (302 × 262.5 × 96 mm)
|
