Standards
|
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
|
WiFi Speeds
|
AX3000
5 GHz: 2402 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)
|

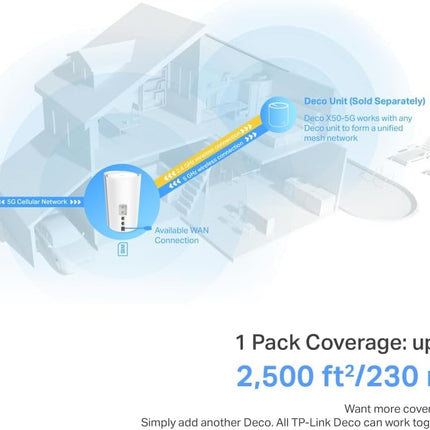

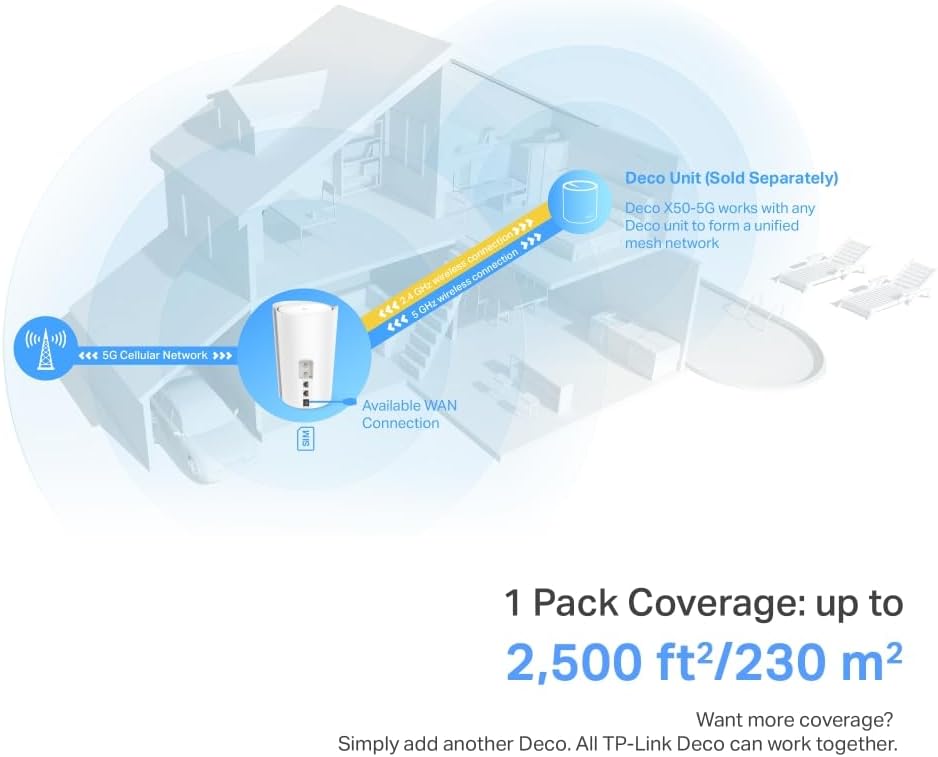

WiFi Range
|
1-3 Bedroom Houses (1-pack)TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage
4× LTE/5G internal antennas + 2× Wi-Fi internal antennas
+ 2× external antenna interface
Multiple antennas form a signal-boosting array to cover more directions and large areas
|
WiFi Capacity
|
HighDual-Band
Distribute devices to different bands for optimal performance
MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients
OFDMA
Simultaneously communicates with multiple WiFi 6 clients
4 Streams
More than enough bandwidth for connected devices
|
Working Modes
|
5G/4G Router, Router, Access Point
|
HARDWARE
|

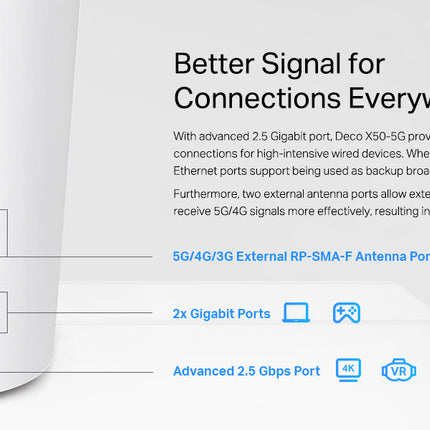

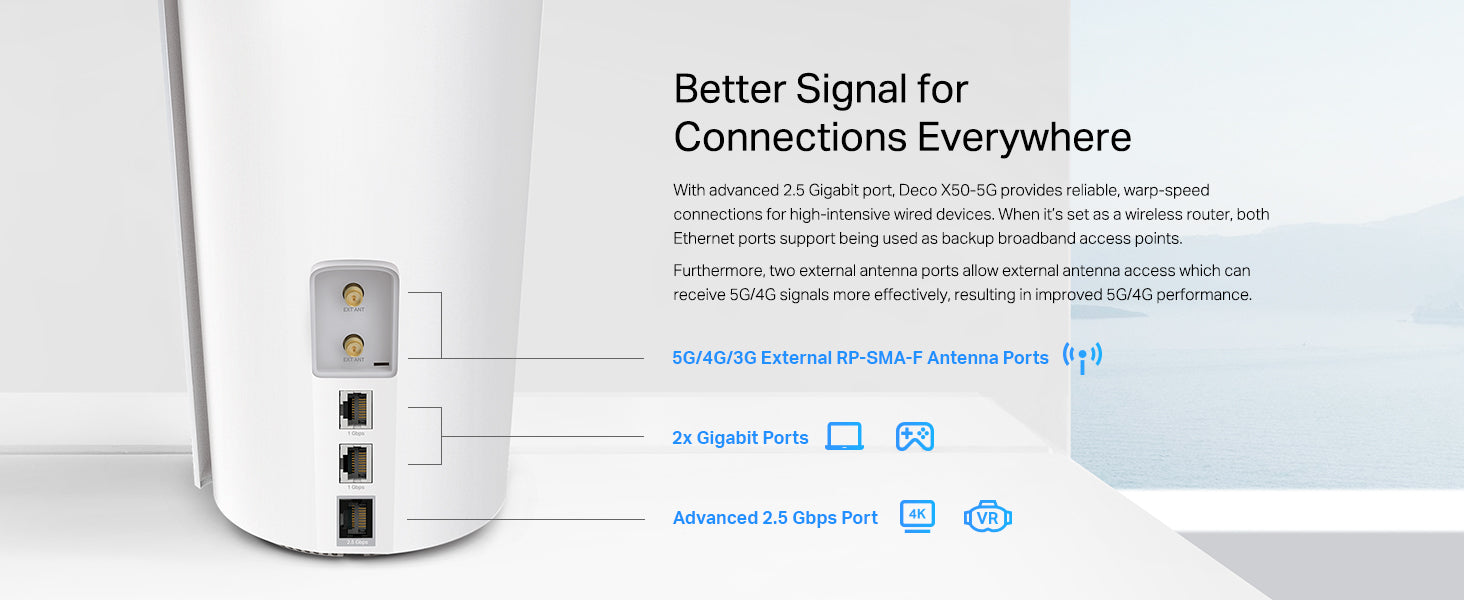

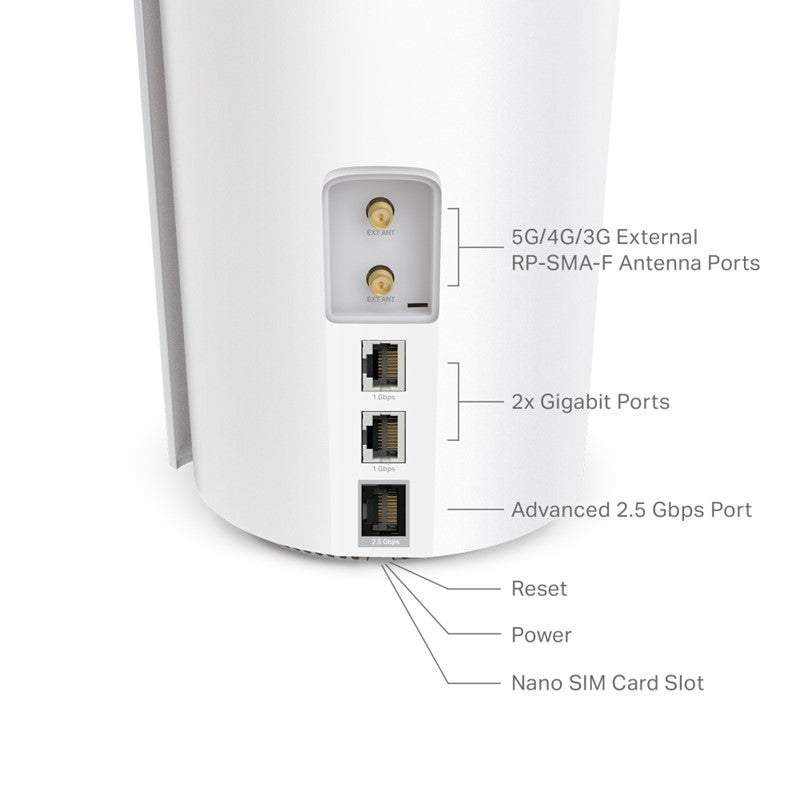

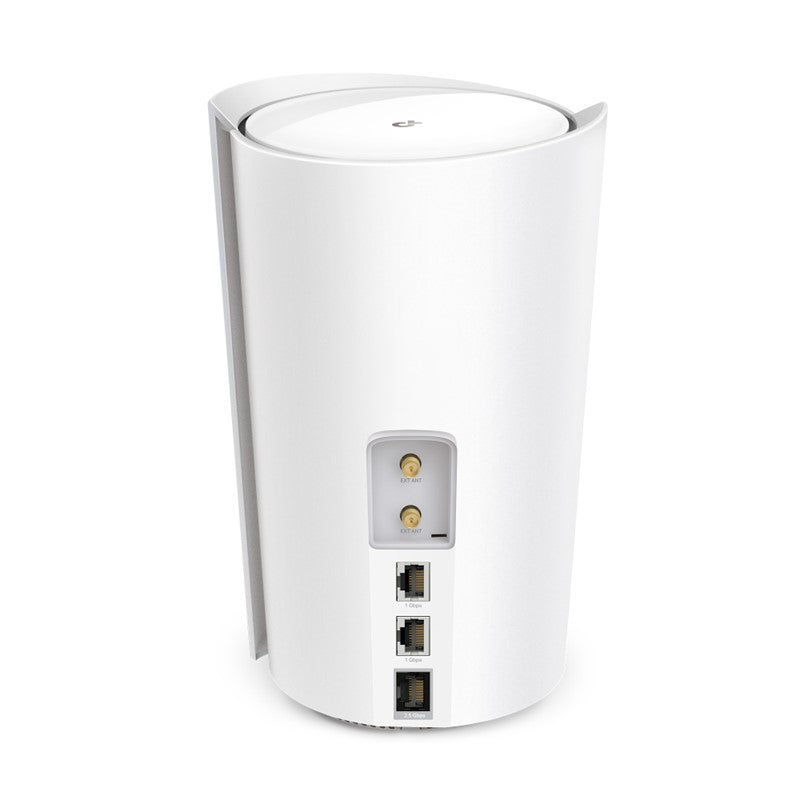

Ports and Connections
|
1× 2.5 Gigabit port + 2× 1 Gigabit ports
(WAN/LAN auto-sensing)
Compatibility
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78
4G FDD-LTE: B1/B3/B5/B7/B8/B20/B28
4G TDD-LTE: B38/B40/B41/B42/B43
3G: B1/B5/B8
|
SECURITY
|
WiFi Encryption
|
WPA-Personal
WPA2-Personal
WPA3-Personal
|
Network Security
|
SPI Firewall
Access Control
HomeShield SecurityReal-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
|
Guest Network
|
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
|
SOFTWARE
|
Protocols
|
IPv4
IPv6
|
WAN Types
|
Dynamic IP
Static IP
PPPoE
L2TP
PPTP
|
Quality of Service
|
HomeShield QoSQoS by Device
|
Cloud Service
|
OTA Firmware Upgrade
TP-Link ID
DDNS
|
NAT Forwarding
|
Port Forwarding
UPnP
|
IPTV
|
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
|
DHCP
|
Address Reservation
DHCP Client List
Server
|
DDNS
|
TP-Link
|
Management
|
Deco App
|
TEST DATA
|
WiFi Transmission Power
|
CE:
≤20 dBm (2.4 GHz),
≤23 dBm (5 GHz)
|
PHYSICAL
|
Dimensions (W×D×H)
|
8.3 × 5.1 × 4.8 in
(210.5 × 130 × 123mm)
|
OTHERS
|
Certification
|
RoHS, CE, RCM
|
Package Contents
|
1-pack

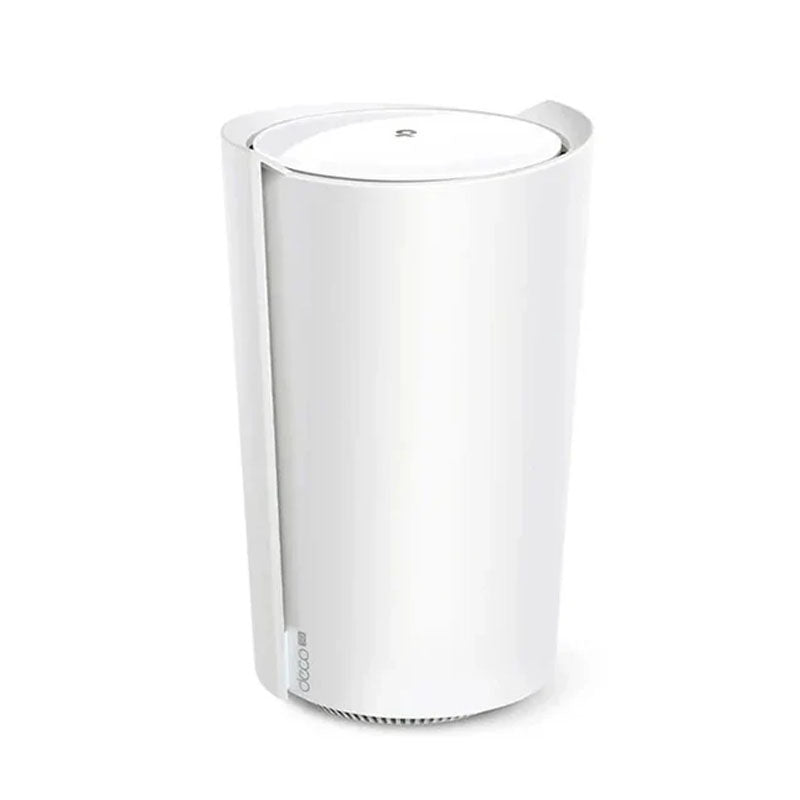

1 Deco X50-5G unit
1 RJ45 Ethernet Cable
1 Power Adapter
Quick Installation Guide
|
Environment
|
Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~60°C (-40°F~140°F)
Operating Humidity: 10%~90%RH
Storage Humidity: 5%~90%RH
|
