Hardware Features
|
|
Standards and Protocols
|
IEEE 802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE 802.3x, IEEE 802.1q
|
|
TCP/IP, DHCP, ICMP, NAT, PPPoE, NTP, HTTP, HTTPS, DNS, IPSec, PPTP, L2TP, SNMP
|
Interface
|
2 Gigabit SFP WAN/LAN ports
|
|
1 Gigabit WAN port
|
|
1 Gigabit LAN/WAN port
|
|
8 Gigabit LAN ports
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (Max 100 m)
|
|
EIA/TIA-568 100Ω STP (Max 100 m)
|
|
100BASE-TX: UTP category 5, 5e cable (Max 100 m)
|
|
EIA/TIA-568 100Ω STP (Max 100 m)
|
|
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
|
Fan Quantity
|
Fanless
|
Button
|
Reset Button
|
Power Supply
|
53.5VDC/2.43A Adapter
|
PoE Budget
|
8 ports PoE+ output, 110 W PoE Budget
|
Flash
|
8Mb Nor + 4 GB EMMC
|
DRAM
|
1 GB DDR3
|
Dimensions ( W x D x H )
|
8.9×5.2×1.4" (226 × 131 × 35 mm)
|
Protection
|
4 kV surge protection
|
Enclosure
|
Steel
|
Mounting
|
Desktop/Wall-mount
|
Performance
|
|
Concurrent Session
|
24,980
|
New Sessions /Second
|
1,900
|
NAT (Static IP)
|
935.5 Mbps / 942.1 Mbps
|
NAT(DHCP)
|
940.2 Mbps / 941.7 Mbps
|
NAT(PPPoE)
|
913.1 Mbps / 935.2 Mbps
|
NAT (L2TP)
|
545.0 Mbps / 912.7 Mbps
|
NAT (PPTP)
|
523.0 Mbps / 912.8 Mbps
|
IPsec VPN Throughput (AES256)
|
168.5 Mbps
|
OpenVPN
|
34 Mbps
|
L2TP VPN Throughput
|
Unencrypted: 845.3 Mbps
|
|
Encrypted: 333.2 Mbps
|
PPTP VPN Throughput
|
Unencrypted: 1012.6 Mbps
|
|
Encrypted: 401.4 Mbps
|
66 Byte Packet forwarding rate
|
154,069 pps / 156,977 pps
|
1,518 Byte Packet forwarding rate
|
81,193 pps / 81,193 pps
|
Basic Functions
|
|
WAN Connection Type
|
Static IP
|
|
Dynamic IP
|
|
PPPoE
|
|
PPTP
|
|
L2TP
|
DHCP
|
DHCP Server
|
|
DHCP Address Reservation
|
|
Multi-IP Interfaces
|
|
Multi-Net DHCP
|
IPv6
|
support
|
VLAN
|
802.1Q VLAN
|
IPTV
|
IGMP v2/v3 Proxy
|
Advanced Functions
|
|
Advanced Routing
|
Static Routing
|
|
Policy Routing
|
Bandwidth Control
|
IP/Port-based Bandwidth Control
|
Load Balance
|
Intelligent Load Balance
|
|
Application Optimized Routing
|
|
Link Backup
|
|
Online Detection
|
NAT
|
Multi-Net NAT
|
|
Virtual Server
|
|
NAT-DMZ
|
|
FTP/H.323/SIP/IPSec/PPTP ALG
|
|
UPnP
|
Session Limit
|
IP-based Session Limit
|
VPN
|
|
IPsec VPN
|
20 IPSec VPN Tunnels
|
|
LAN-to-LAN, Client-to-LAN
|
|
Main, Aggressive Negotiation Mode
|
|
AES128, AES192, AES256 Encryption Algorithm
|
|
IKE v1/v2
|
|
SHA1, SHA2 Authentication Algorithm
|
|
NAT Traversal (NAT-T)
|
|
Dead Peer Detection (DPD)
|
|
Perfect Forward Secrecy (PFS)
|
PPTP VPN
|
PPTP VPN Server
|
|
PPTP VPN Client (10)
|
|
16 Tunnels
|
|
PPTP with MPPE Encryption
|
L2TP VPN
|
L2TP VPN Server
|
|
L2TP VPN Client (10)
|
|
16 Tunnels
|
|
L2TP over IPSec
|
OpenVPN
|
OpenVPN Server
|
|
OpenVPN Client (10)§
|
|
16 OpenVPN Tunnels
|
Security
|
|
Filtering
|
URL Filtering
|
Attack Defense
|
TCP/UDP/ICMP Flood Defense
|
|
Block TCP Scan (Stealth FIN/Xmas/Null)
|
|
Block Ping from WAN
|
Access Control
|
Source/Destination IP Based Access Control
|
Authentication
|
|
Web Authentication
|
No Authentication
|
|
Simple Password
|
|
Hotspot (Local User / Voucher / SMS / Radius)
|
|
External Radius Sever
|
|
External Portal Sever
|
|
Facebook
|
MANAGEMENT
|
|
Omada App
|
Yes
|
Cloud Access
|
Yes
|
Service
|
Dynamic DNS (Dyndns, No-IP)
|
Maintenance
|
Web Management Interface
|
|
Remote Management
|
|
Export & Import Configuration
|
|
SNMP v1/v2c/v3
|
|
Syslog Support
|
Management Features
|
Automatic Device Discovery
|
|
Intelligent Network Monitoring
|
|
Abnormal Event Warnings
|
|
Unified Configuration
|
|
Reboot Schedule
|
|
Captive Portal Configuration
|
|
Management up to 1 Router, 2 Switches and 10 EAPs
|
Others
|
|
Certification
|
CE, FCC, RoHS
|
Package Contents
|

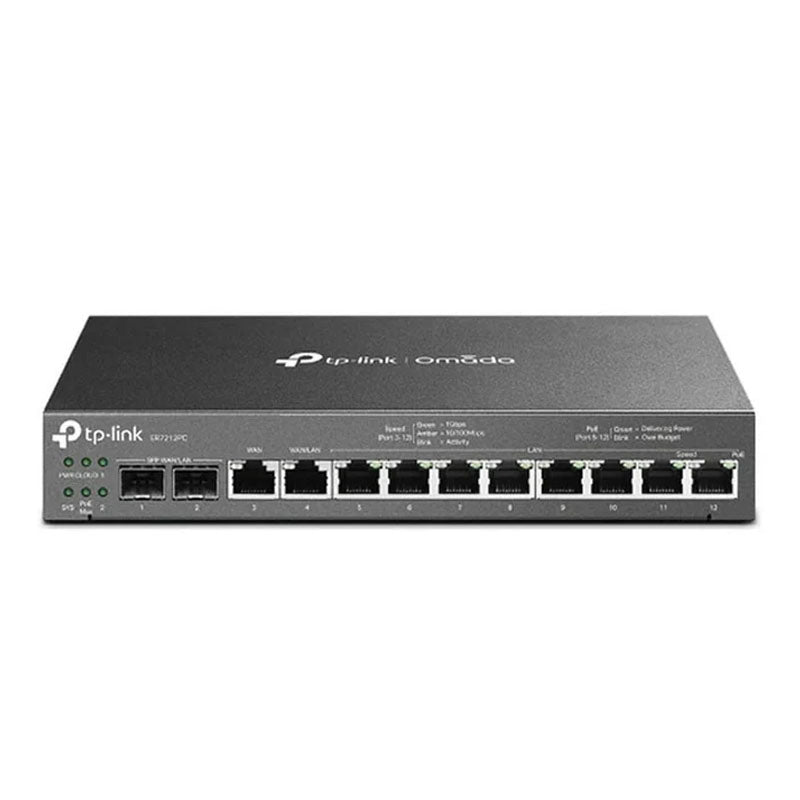

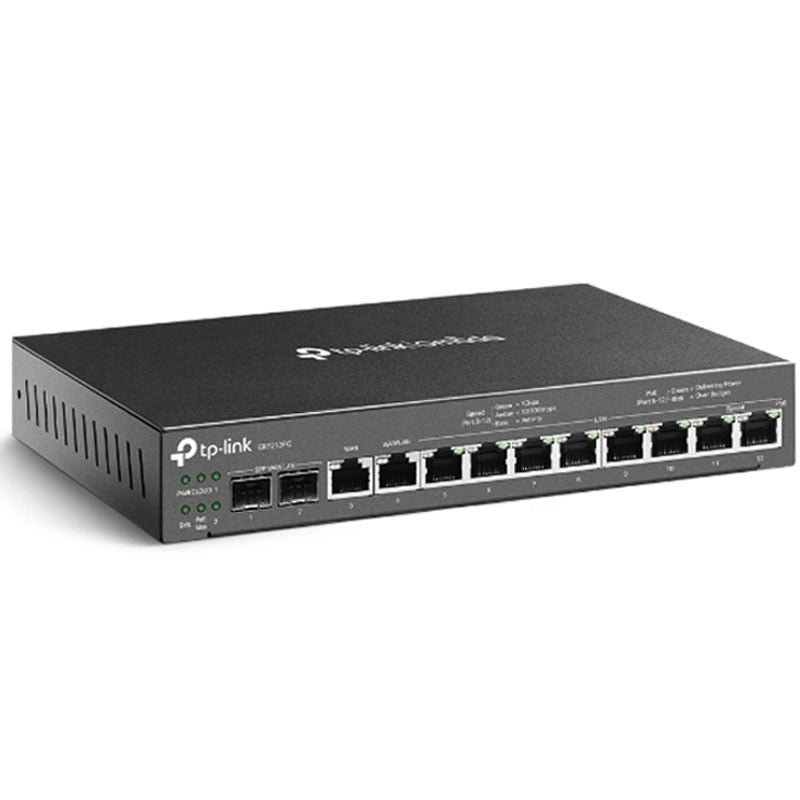

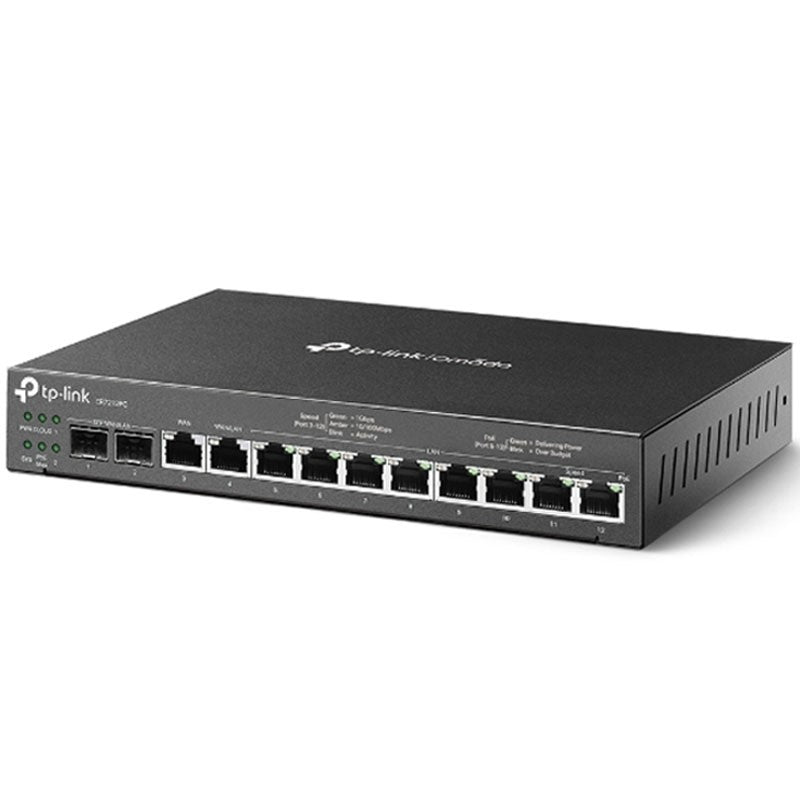

ER7212PC
|
|
Power Adapter
|
|
Power Cord
|
|
Quick Installation Guide
|
System Requirements
|
Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10
|
|
MAC OS, NetWare, UNIX or Linux
|
Environment
|
Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
|
|
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
|
|
Operating Humidity: 10% to 90% non-condensing
|
|
Storage Humidity: 5% to 90% non-condensing
|
