HARDWARE FEATURES
|
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
|

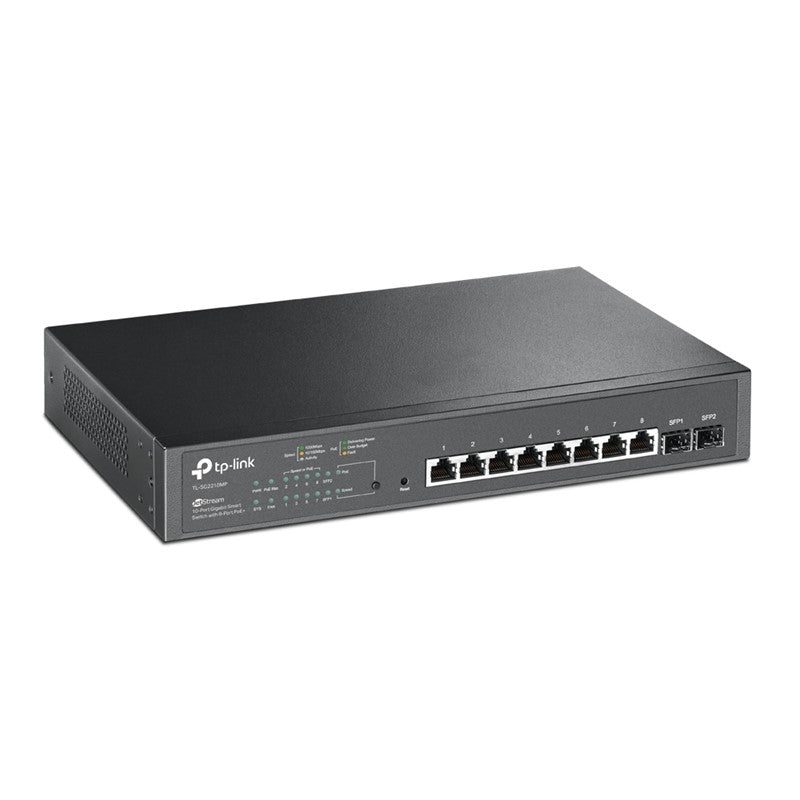

Interface
|
8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
|
|
2× 100/1000 Mbps SFP Slots
|
Network Media
|
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
|
|
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
|
|
100BASE-FX: MMF, SMF
|
|
1000BASE-X: MMF, SMF
|
Fan Quantity
|
1
|
Physical Security Lock
|
Yes
|

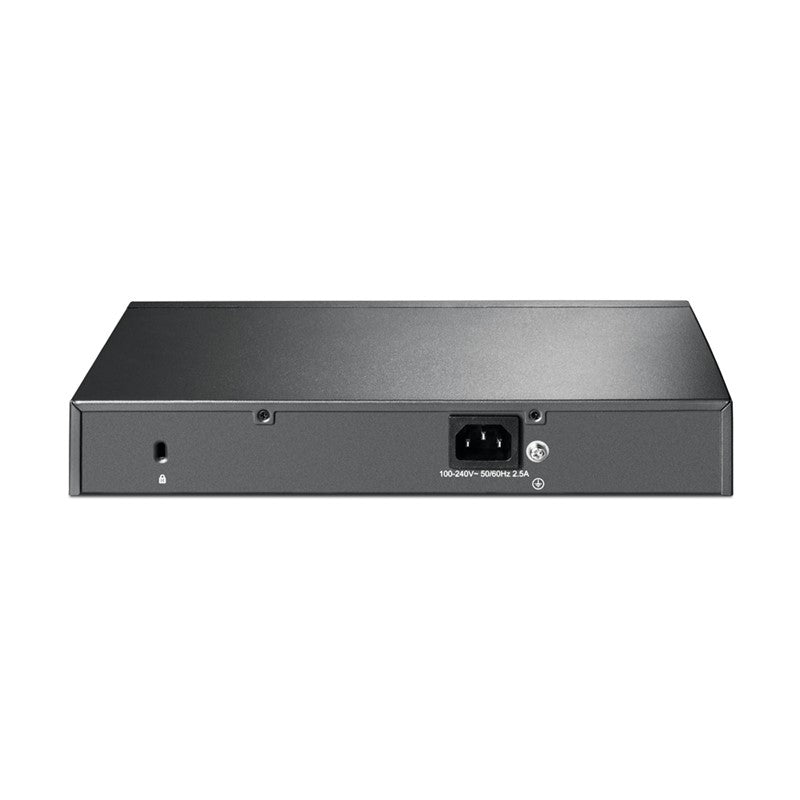

Power Supply
|
100-240V AC, 50/60Hz
|
PoE Ports (RJ45)
|
Standard: 802.3at/af compliant
|
|
PoE+ Ports: 8 Ports
|
|
PoE Power Budget: 150 W*
|
Dimensions ( W x D x H )
|
11.6 x 7.1 x 1.7" (294 x 180 x 44 mm)
|
Mounting
|
Rackmount/Desktop
|
Max Power Consumption
|
V1: 173.9 W (110 V/60 Hz) (with 150 W PD connected); 12.2 W (110 V/60 Hz) (no PD connected)
|
|
V2: 169.5 W (220 V/50Hz) (with 150 W PD connected)
|
|
V3: 175.3 W (110 V/60Hz) (with 150 W PD connected)
|
|
V4: 174.2 W (110V/60Hz) (with 150 W PD connected)
|
Max Heat Dissipation
|
V1: 41.63 BTU/h (with no PD connected); 539.35 BTU/h (with 150 W PD connected)
|
|
V2: 578.42 BTU/hr (220V/50 Hz) (with 150 W PDconnected)
|
|
V3: 597.8 BTU/hr (110 V/60 Hz) (with 150 W PD connected)
|
|
V4: 594.46 BTU/hr (110V/60Hz) (with 150 W PD connected)
|
PERFORMANCE
|
|
Switching Capacity
|
20 Gbps
|
Packet Forwarding Rate
|
14.9 Mpps
|
MAC Address Table
|
8K
|
Packet Buffer Memory
|
4.1 Mbit
|
Jumbo Frame
|
9 KB
|
SOFTWARE FEATURES
|
|
Quality of Service
|
802.1p CoS/DSCP priority
|
|
8 priority queues
|
|
Priority Schedule Mode
|
|
SP (Strict Priority)
|
|
WRR (Weighted Round Robin)
|
|
Queue Weight Config
|
|
Bandwidth Control
|
|
Port/Flow based Rating Limit
|
|
Smoother Performance
|
|
Storm Control
|
|
Multiple Control Modes(kbps/ratio)
|
|
Broadcast/Multicast/Unknown-Unicast Control
|
