Model No
|

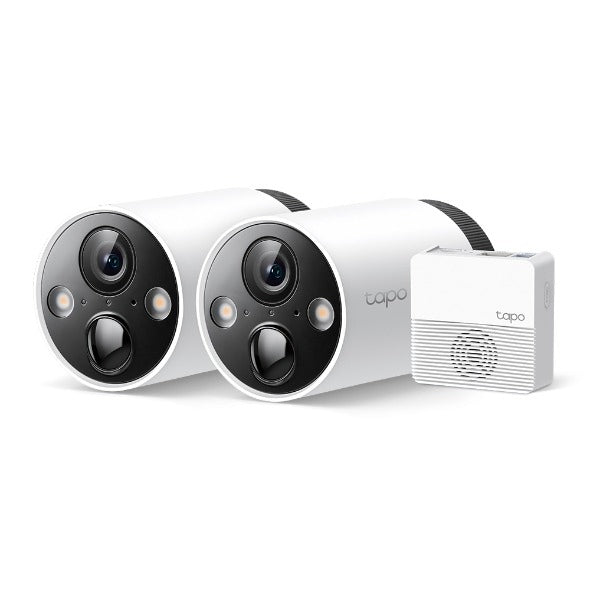

TP-Link Smart Wire-Free Security Camera System, 2-Camera System
|
|
Part No
|
TAPO C420S2
|
|
Color
|
White
|
|
CAMERA
|
Image Sensor:
1/3" Progressive Scan CMOS Starlight Sensor
Lens:
Focal Length: 3.2 mm
Aperture:
F1.6
Field of View:
113° (Diagonal), 97°(Horizontal), 54°(Vertical)
Night Vision:
850 nm IR LED (49 ft / 15 m)
Full-Color Night Vision
Lighting:
2× Built-in Spotlights
Interface & Button:
1× SYNC/RESET Button
Hub Compatibility:
Compatible with H200 (Included)
|
|
HUB
|
Device Compatibility:
Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells.
Connection Capacity:
Up to 64 Sub-1G switches, sensor, or buttons + 4 cameras or video doorbells
Interface & Button:
1× Ethernet Port 1× RESET Button 1× SYNC Button 1× MicroSD Card Slot (Up to 512 GB)
|
|
VIDEO & AUDIO
|
Maximum Resolution:
2K QHD 4MP (2560 × 1440 px)
Frame Rate:
15 fps / 20 fps
Digital Zoom:
12×
Video Compression:
H.264
Live View:
Yes
Image Enhancement:
3DNR
WDR
Audio Input & Output:
Built-in Microphone and Speaker
Audio Communication:
Two-Way Audio with Noise Cancellation
Camera:
92 dB (Level measured at 4-inch/10-cm distance)Hub:100 dB (Level measured at 4-inch/10-cm distance)
|
|
STORAGE
|
Local Storage:
MicroSD Card Slot on Hub (Up to 512 GB)
Cloud Storage:
Tapo Care Cloud Storage Services (Subscription required)
|
|
DETECTION and NOTIFICATIONS
|
Sensor:
Single Motion Sensor (FOV: 110° horizontal)
Single Ambient Light SensorAI Detection:
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Activity Zones:
Yes
Output Notification:
System Notification
System Notification with Snapshot (Tapo Care Services)
|
|
NETWORK
|
Network Connectivity:
Connect via Wi-Fi or Ethernet
Wireless Connectivity:
IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub)Ethernet Port:1× 10/100 Mbps RJ45 Port on Hub
|
|
POWER
|
Power Source:
Hub: 9V DC Power Adapter
Camera：6700 mAh Removable Rechargeable Lithium-ion Battery
Optional Solar Panel: Tapo A200 (Sold separately)
Input Voltage:
Adapter Input: 100-240 V, 50/60 Hz
Output Voltage:
Adapter Output: 5.0 V, 2.0 A
|
|
GENERAL
|
Smart Integration:
Google Assistant, Amazon Alexa

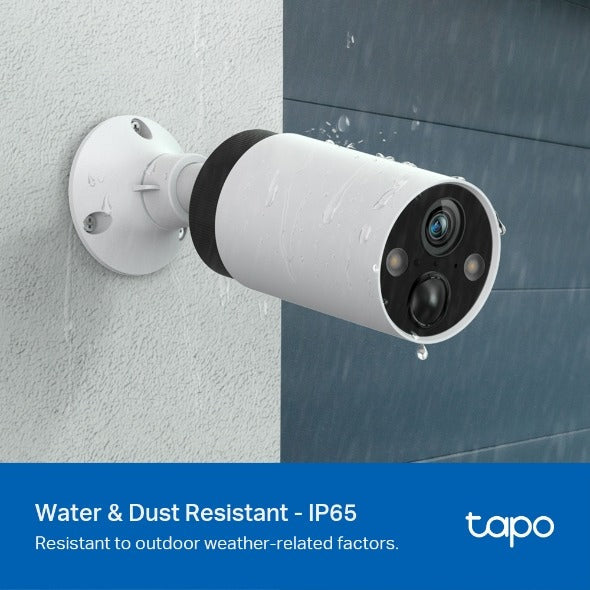

Weather Resistance:
Camera: IP65
System Requirements:
Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher
Mounting Options:
Tabletop
Ceiling-Mounted
Wall-Mounted
Operating Temperature:
-20℃~45℃Hub: 0℃~40℃
Storage Temperature:
-20℃~60℃
Operating Humidity:
10%~90% RH, Non-condensing
Storage Humidity:
5%~90% RH, Non-condensing
Charging Temperature:
0-55℃
|
|
Dimensions
|
Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm)
Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm)
|
|
Package Contents
|
Tapo C420 Cameras
Tapo A100 Batteries
Tapo H200 Hub
USB Adapter
USB Adapter Cable
DC Power Adapter
Mounting Anchors
Mounting Screws
Mounting Templates
Camera Brackets
Quick Start Guide
RJ45 Ethernet Cable
|
|
Warranty
|
1 Year ( As per Manufacturer Policy )
|
