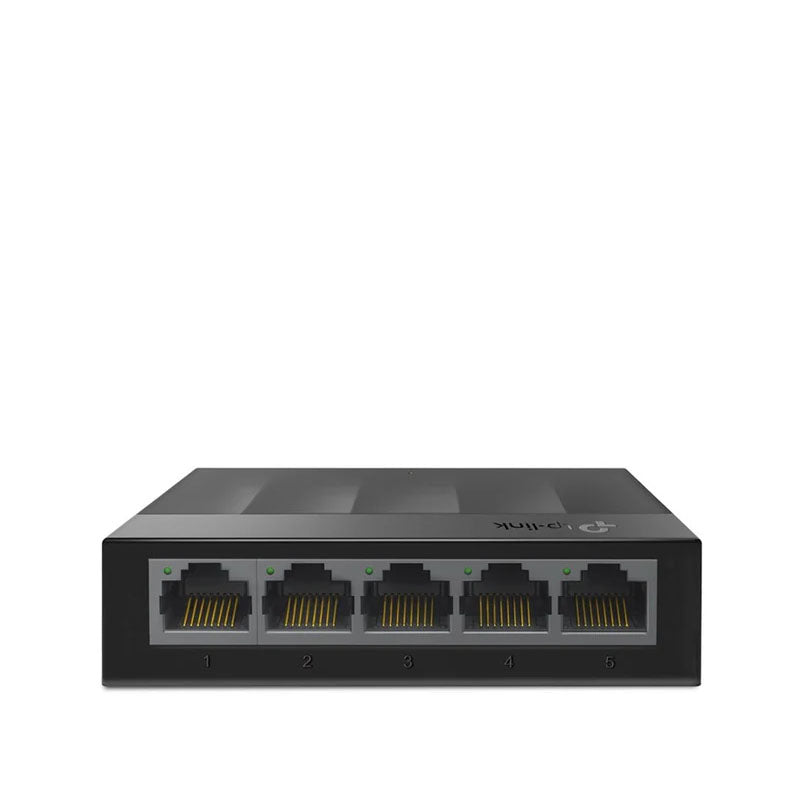

TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

Description

TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

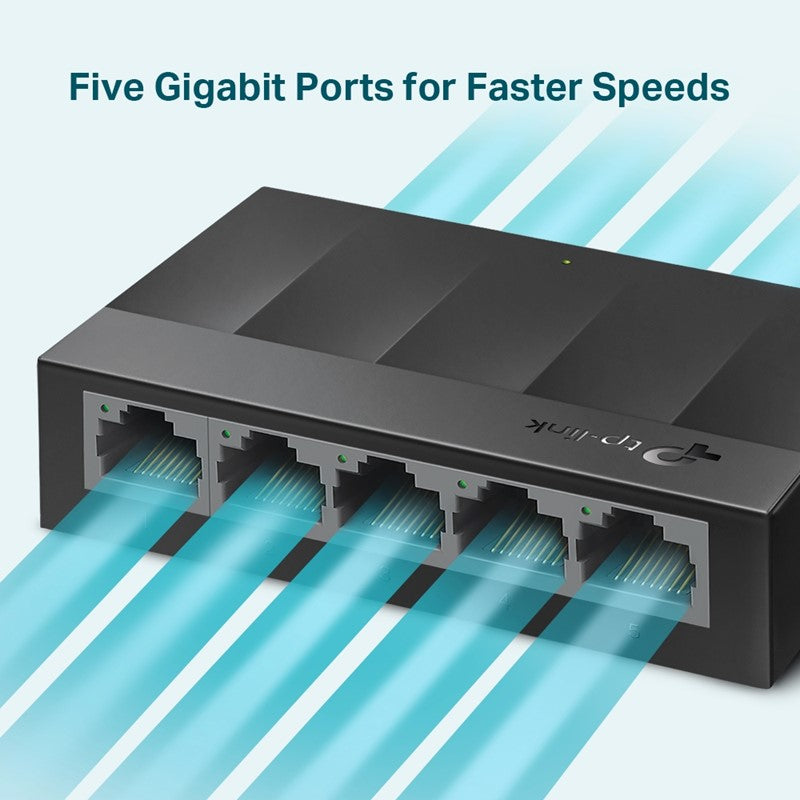

5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

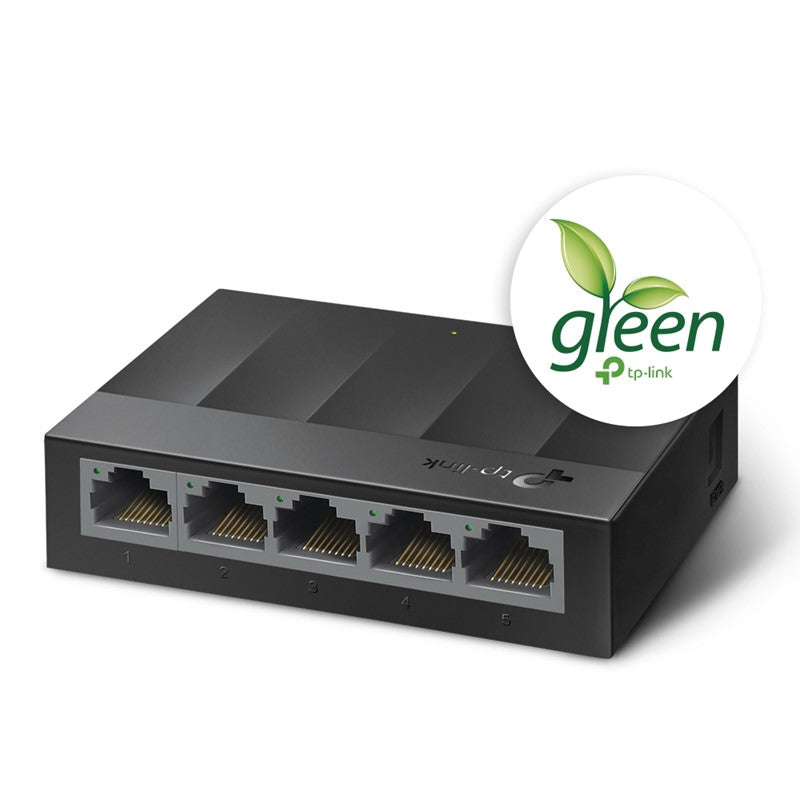

Green Ethernet technology saves power

IEEE 802.3X flow control provides reliable data transfer

Plastic casing, desktop or wall-mounting design

Plug and play, no configuration needed

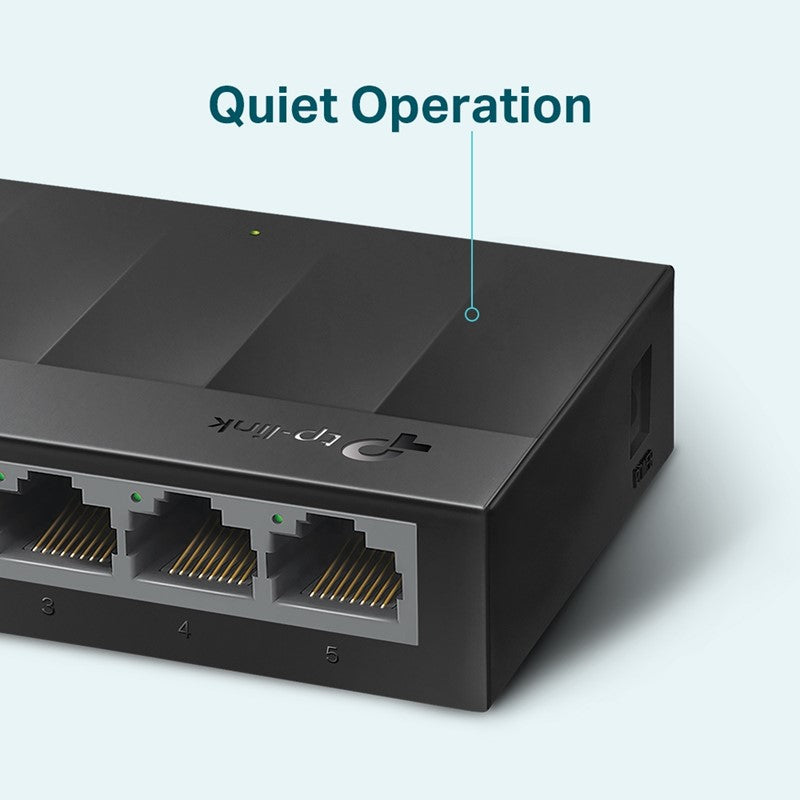

Fanless design ensures quiet operation

Specification

Standards and Protocols

IEEE 802.3i/802.3u/ 802.3ab/802.3x

Interface

5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

Fan Quantity

Fanless

External Power Supply

External Power Adapter (Output: 5VDC/0.6A)

Dimensions ( W x D x H )

3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

Max Power Consumption

3.7W

Max Heat Dissipation

12.617 BTU/h

Performance

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.4 Mpps

MAC Address Table

2K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

Software Features

Advanced Features

Green Technology
802.3X Flow Control
Back Pressure

Transfer Method

Store and Forward

Others

Certification

CE, FCC, RoHS

Package Contents

5-Port 10/100/1000Mbps Desktop Switch
Power Adapter
Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing



TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

Product form

4.750 KD

    • Guaranteed secure & safe checkout.

    Description

    TP-Link TL-LS1005G 5-Port Gigabit Desktop Switch

    5× 10/100/1000Mbps Auto-Negotiation RJ45 port, supporting Auto-MDI/MDIX

    Green Ethernet technology saves power

    IEEE 802.3X flow control provides reliable data transfer

    Plastic casing, desktop or wall-mounting design

    Plug and play, no configuration needed

    Fanless design ensures quiet operation

    Specification

    Standards and Protocols

    IEEE 802.3i/802.3u/ 802.3ab/802.3x

    Interface

    5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports

    Fan Quantity

    Fanless

    External Power Supply

    External Power Adapter (Output: 5VDC/0.6A)

    Dimensions ( W x D x H )

    3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)

    Max Power Consumption

    3.7W

    Max Heat Dissipation

    12.617 BTU/h

    Performance

    Switching Capacity

    10 Gbps

    Packet Forwarding Rate

    7.4 Mpps

    MAC Address Table

    2K

    Packet Buffer Memory

    1.5 Mb

    Jumbo Frame

    16 KB

    Software Features

    Advanced Features

    Green Technology
    802.3X Flow Control
    Back Pressure

    Transfer Method

    Store and Forward

    Others

    Certification

    CE, FCC, RoHS

    Package Contents

    5-Port 10/100/1000Mbps Desktop Switch
    Power Adapter
    Installation Guide

    Environment

    Operating Temperature: 0°C~40°C (32°F~104°F)
    Storage Temperature: -40℃~60℃ (-40℉~140℉)
    Operating Humidity: 10% ~ 90% non-condensing
    Storage Humidity: 5%~90% non-condensing
