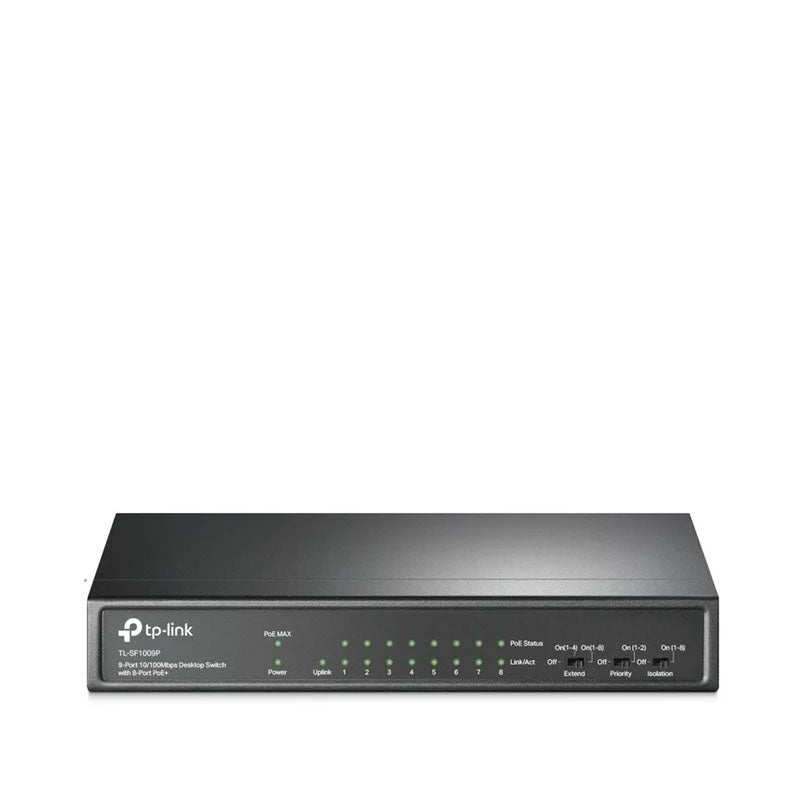

TP-Link TL-SF1009P 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
|
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications

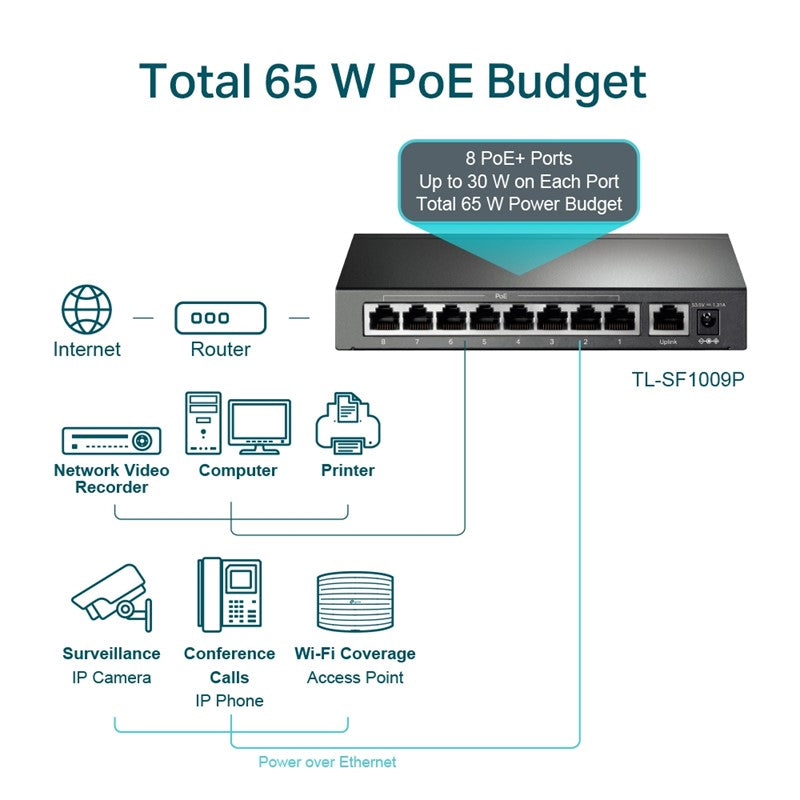

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses.
It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more

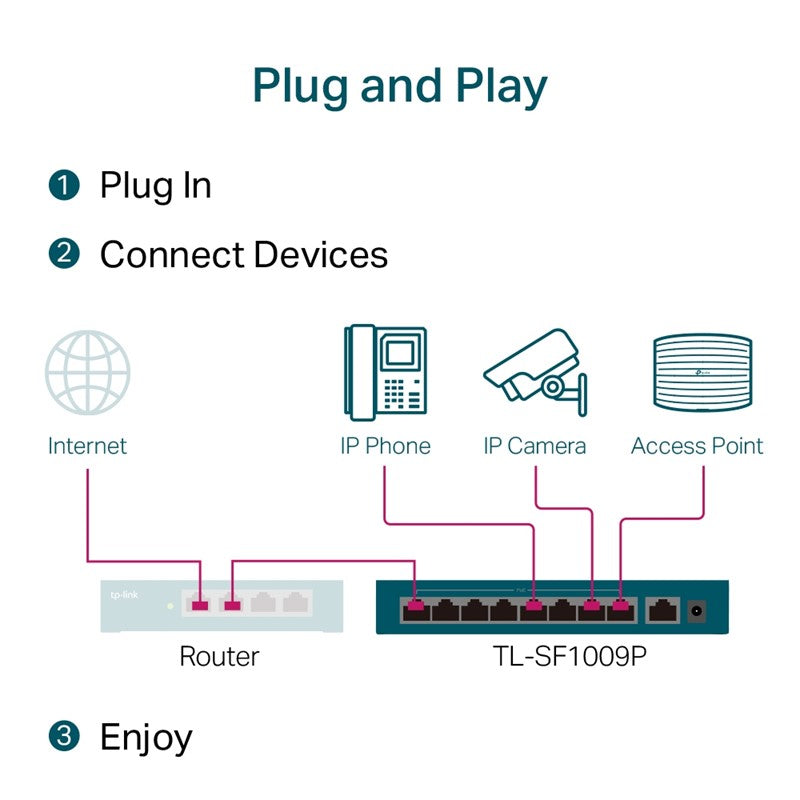

Plug and Play, No Configuration Required

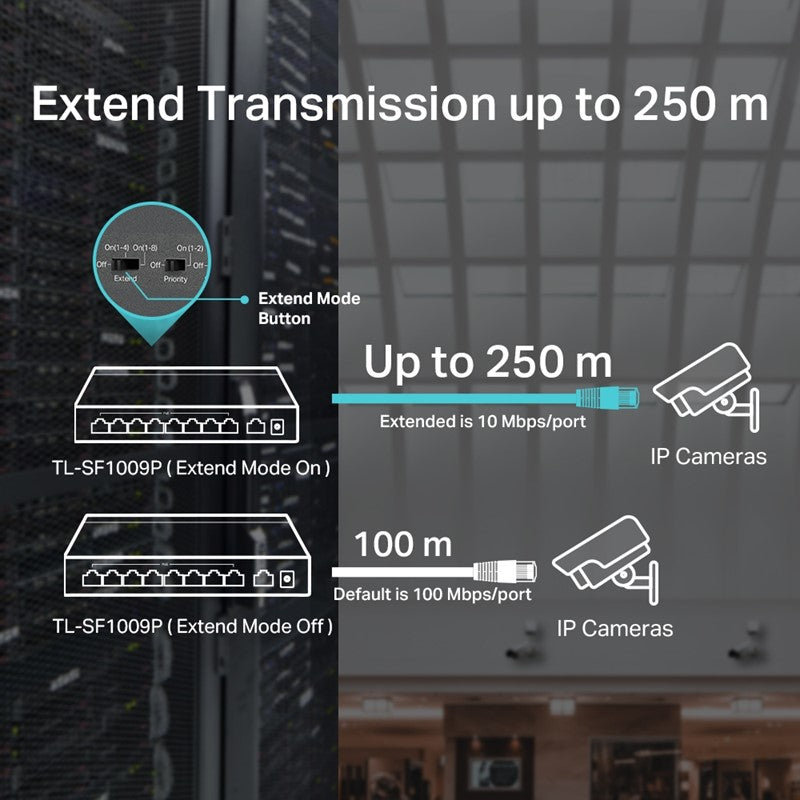

Ideal for IP Surveillance, Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**,perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type
Ideal for IP Surveillance, Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer

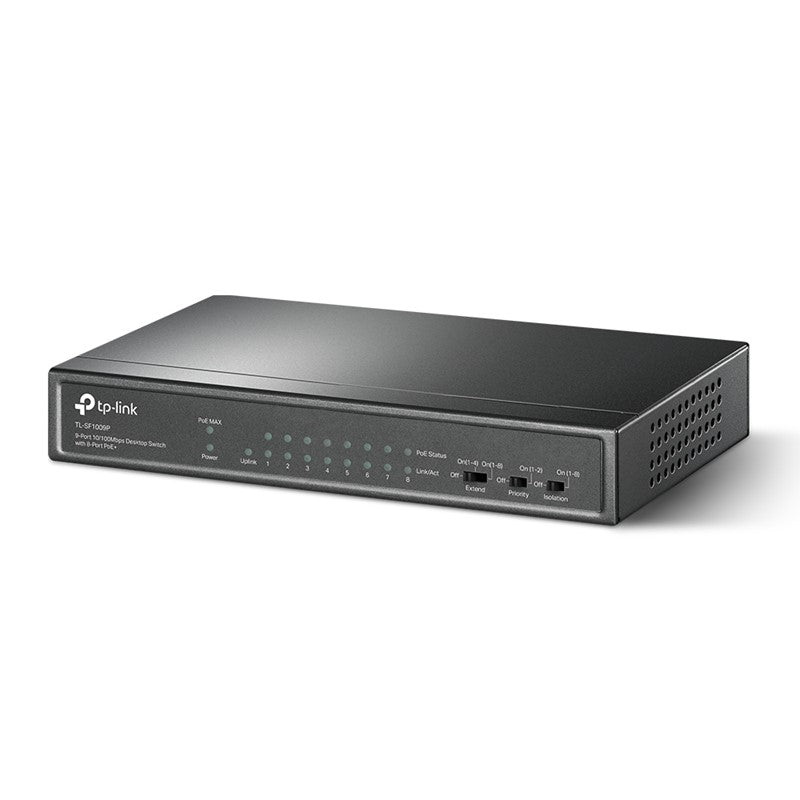

Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life.
Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
|
Specification:
|
Hardware Features
|
|
Interface
|

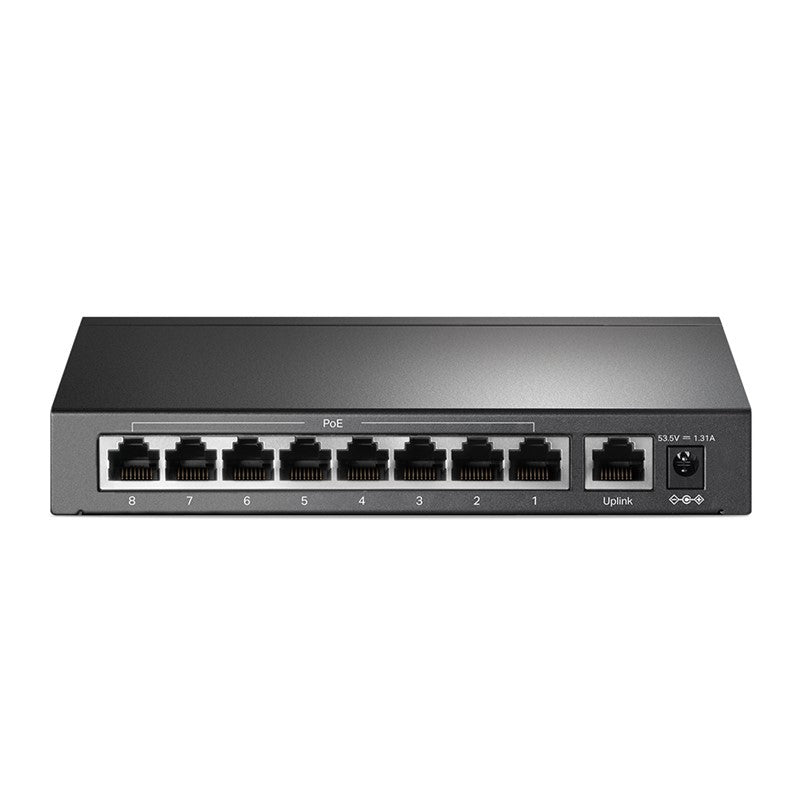

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX
|
|
Network Media
|
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
|
|
Fan Quantity
|
Fanless
|
|
Physical Security Lock
|
Yes
|
|
External Power Supply
|
External Power Adapter (Output: 53.5VDC / 1.3A)
|
|
Packet Forwarding Rate
|
1.3392 Mpps
|
|
PoE Ports (RJ45)
|
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W
|
|
Mac Address Table
|
2K
|
|
Jumbo Frame
|
2 KB
|
|
Switching Capacity
|
1.8 Gbps
|
|
Dimensions ( W x D x H )
|
6.7 × 3.9 × 1.1 in
(171 × 98 × 27 mm)
|
|
Max Power Consumption
|
• 3.6 (no PD connected)
• 77.1 (with 65 W PD connected)
|
|
Max Heat Dissipation
|
• 12.3 BTU/h (no PD connected)
• 262.8 BTU/h (with 65 W PD connected)
|
|
Software Features
|
|
Transmission Method
|
Store-And-Forward
|
|
Advanced Functions
|
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode
|
|
Others
|
|
Certification
|
FCC, CE, RoHS
|
|
Package Contents
|
• TL-SF1009P
• Power Adapter
• Installation Guide
|
|
Environment
|
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
|
|
