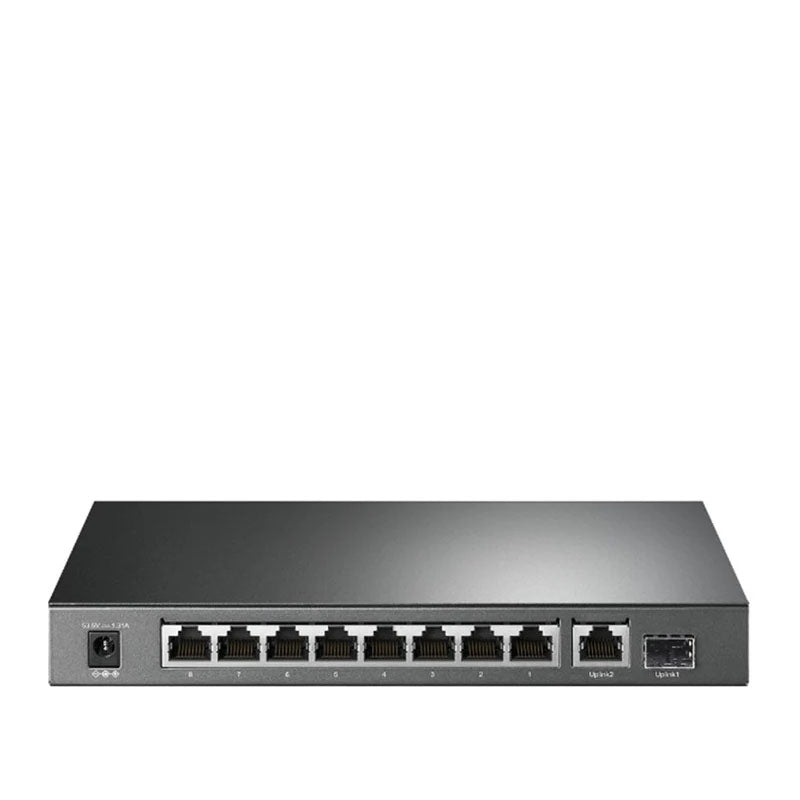

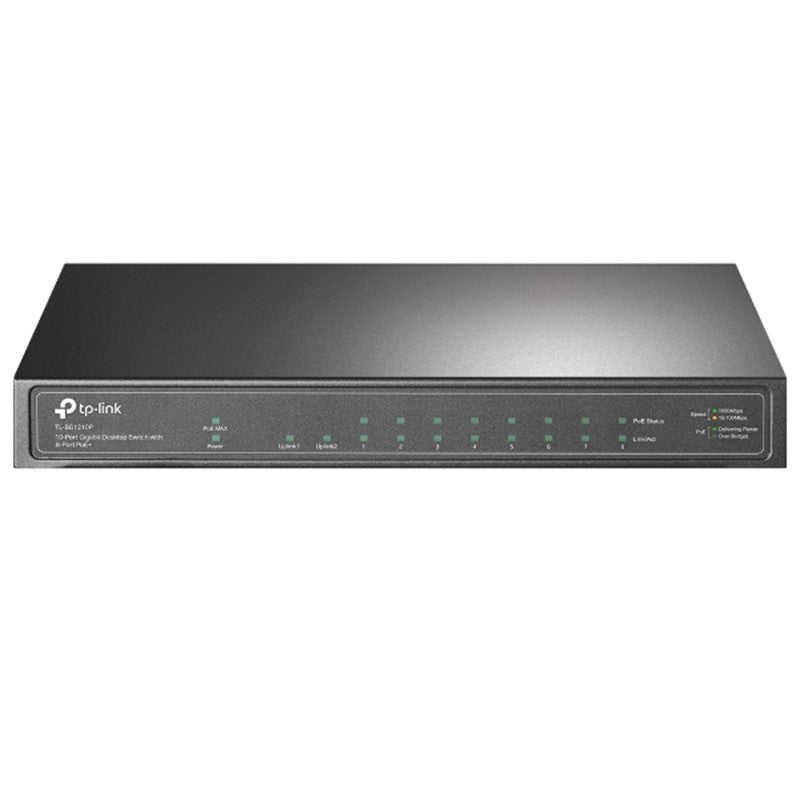

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

Description

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

Power over Ethernet

Port 1-8 of the switch support Power over Ethernet (PoE) function

These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices PDs

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation

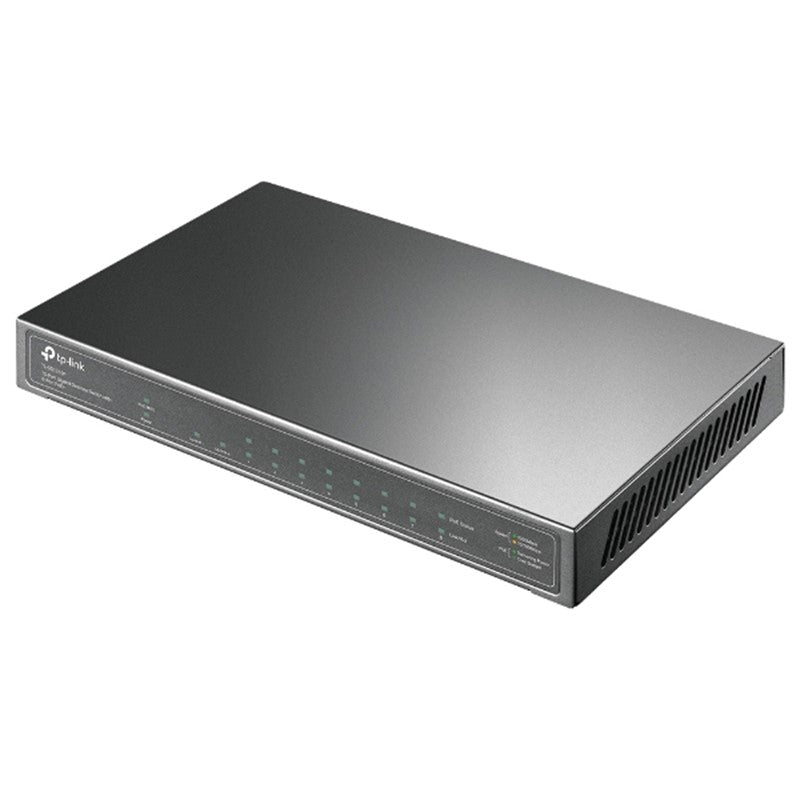

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation

Specifications:

Interface

8 PoE+ 10/100/1000Mbps RJ45 Ports

1 10/100/1000Mbps RJ45 Port

1 Gigabit SFP Slot

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100Ω STP (maximum 100m)

1000BASE-X MMF, SMF

Fan Quantity

Fanless

Physical Security Lock

Yes

Power Supply

External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate

14.88 Mpps

PoE+ Ports(RJ45)

Standard: 802.3at/802.3af compliant

PoE Ports: Port1- Port 8

PoE Power Budget: 63W

Mac Address Table

4K

Jumbo Frame

16 KB

Switching Capacity

20 Gbps

Dimensions ( W x D x H )

209 × 126 × 26 mm

Max Power Consumption

7.11 W (220/50Hz. no PD connected)

78.13 W (220/50Hz. with 63W PD connected)

Max Heat Dissipation

24.25 BTU/h (no PD connected)

266.42 BTU/h (with 63W PD connected)

SOFTWARE FEATURES

Advanced Features

Compatible With IEEE 802.3af/at Compliant PDs

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transmission Method

Store-And-Forward

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG1210P, Power Adapter, Installation Guide

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~70°C (-40°F~158°F)

Operating Humidity: 10% ~ 90% non-condensing

Storage Humidity: 5%~90% non-condensing

TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

Product form

25.900 KD

    • Guaranteed secure & safe checkout.

    Description

    TP-Link TL-SG1210P 10-Port Gigabit Desktop Switch with 8-Port PoE+

    Power over Ethernet

    Port 1-8 of the switch support Power over Ethernet (PoE) function

    These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices PDs

    Intelligent Power Management

    When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation

    Sturdy Metal Casing

    Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation

    Specifications:

    Interface

    8 PoE+ 10/100/1000Mbps RJ45 Ports

    1 10/100/1000Mbps RJ45 Port

    1 Gigabit SFP Slot

    Network Media

    10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

    EIA/TIA-568 100Ω STP (maximum 100m)

    100BASE-TX: UTP category 5, 5e cable (maximum 100m)

    EIA/TIA-568 100Ω STP (maximum 100m)

    1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

    EIA/TIA-568 100Ω STP (maximum 100m)

    1000BASE-X MMF, SMF

    Fan Quantity

    Fanless

    Physical Security Lock

    Yes

    Power Supply

    External Power Adapter(Output: 53.5VDC / 1.31A)

    Packet Forwarding Rate

    14.88 Mpps

    PoE+ Ports(RJ45)

    Standard: 802.3at/802.3af compliant

    PoE Ports: Port1- Port 8

    PoE Power Budget: 63W

    Mac Address Table

    4K

    Jumbo Frame

    16 KB

    Switching Capacity

    20 Gbps

    Dimensions ( W x D x H )

    209 × 126 × 26 mm

    Max Power Consumption

    7.11 W (220/50Hz. no PD connected)

    78.13 W (220/50Hz. with 63W PD connected)

    Max Heat Dissipation

    24.25 BTU/h (no PD connected)

    266.42 BTU/h (with 63W PD connected)

    SOFTWARE FEATURES

    Advanced Features

    Compatible With IEEE 802.3af/at Compliant PDs

    EEE802.3x Flow Control

    802.1p/DSCP QoS

    IGMP Snooping

    Transmission Method

    Store-And-Forward

    OTHERS

    Certification

    CE, FCC, RoHS

    Package Contents

    TL-SG1210P, Power Adapter, Installation Guide

    Environment

    Operating Temperature: 0°C~40°C (32°F~104°F)

    Storage Temperature: -40°C~70°C (-40°F~158°F)

    Operating Humidity: 10% ~ 90% non-condensing

    Storage Humidity: 5%~90% non-condensing
