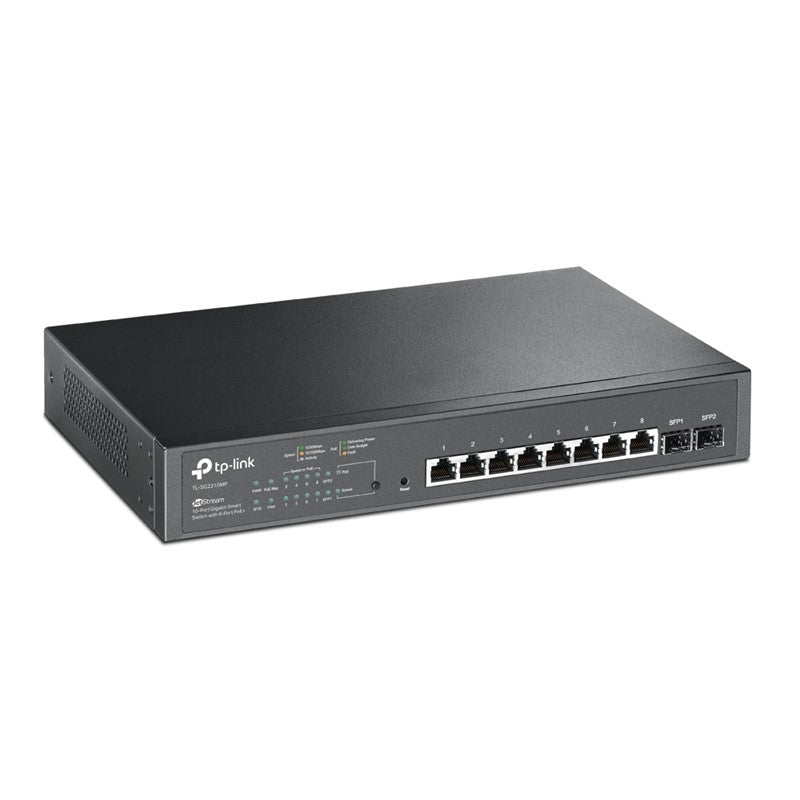

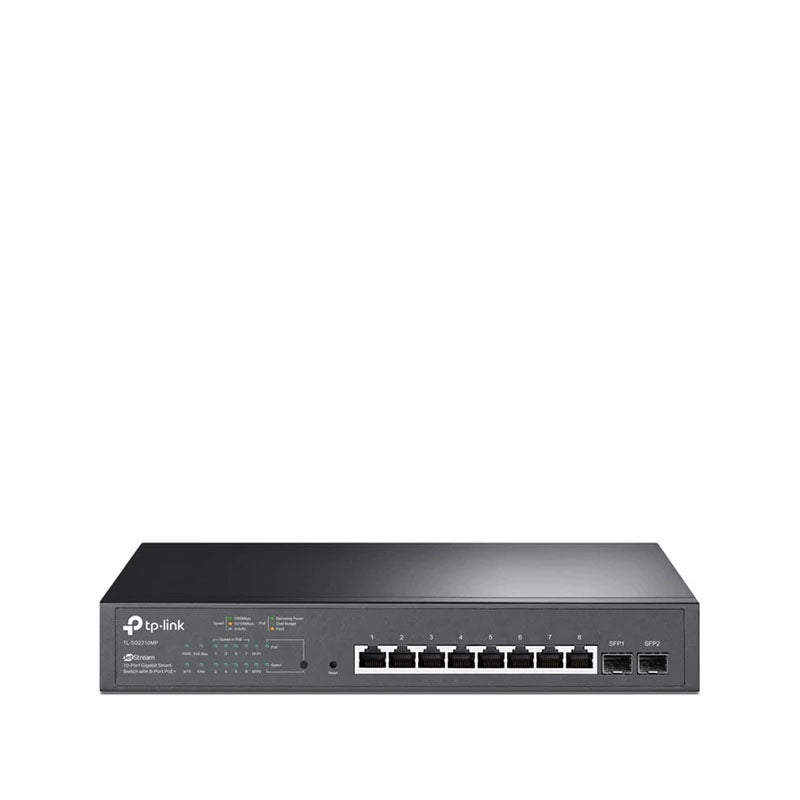

TP-Link TL-SG2210MP JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+
|
150 W PoE Budget
8× 802.3at/af-compliant PoE+ ports with a total power supply of 150 W
Full Gigabit Ports
8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
|
|
Integrated into Omada SDN
Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management
Cloud access and Omada app for ultra convenience and easy management.
|
|
Robust Security Strategies
IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications
L2/L3/L4 QoS and IGMP snooping.
|
Specifications:
|
Standards and Protocols
|
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
|
|
Interface
|
8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX)
2× 100/1000 Mbps SFP Slots
|
|
Network Media
|
10BASE-T: UTP/STP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP/STP category 5, 5e or above cable (maximum 100m)
100BASE-FX: MMF, SMF
1000BASE-X: MMF, SMF
|
|
Fan Quantity
|
1
|
|
Physical Security Lock
|
Yes
|
|

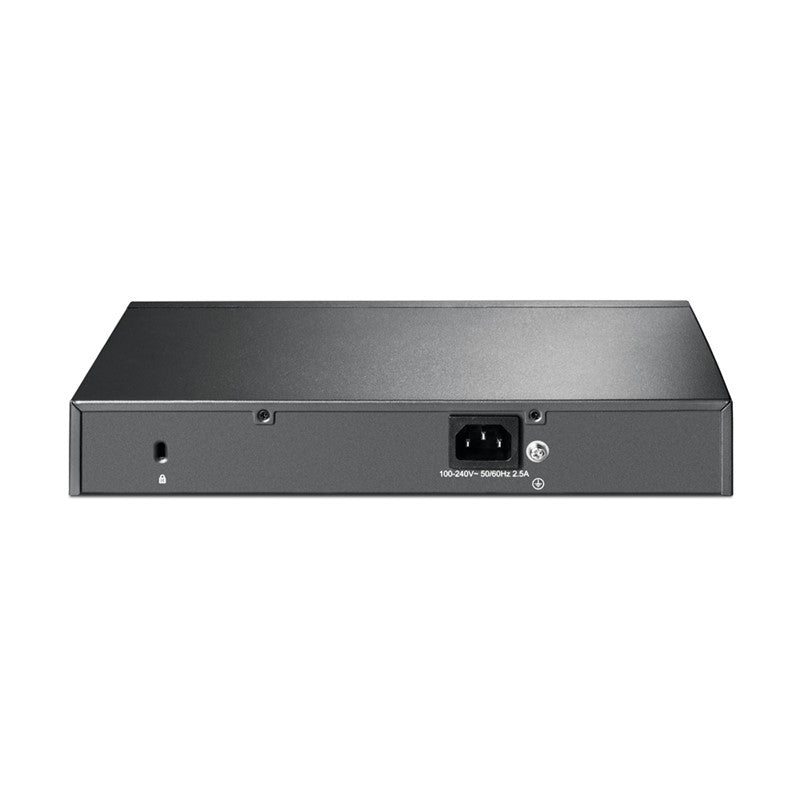

Power Supply
|
100-240V AC, 50/60Hz
|
|
PoE+ Ports(RJ45)
|
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
Power Supply: 150 W
|
|
PoE Ports (RJ45)
|
Standard: 802.3at/af compliant
PoE+ Ports: 8 Ports
PoE Power Budget: 150 W
|
|
Dimensions ( W x D x H )
|
11.6 x 7.1 x 1.7 in
(294 x 180 x 44 mm)
|
|
Mounting
|
Desktop,
13" or 19" 1U rack mountable
|
|
Max Power Consumption
|
12.2 W (110 V / 60 Hz with no PD connected)
173.9 W (110 V / 60 Hz with 150 W PD connected)
|
|
Max Heat Dissipation
|
41.6 BTU/h (with no PD connected)
539.4 BTU/h (with 150 W PD connected)
|
|
Performance
|
|
Switching Capacity
|
20 Gbps
|
|
Packet Forwarding Rate
|
14.9 Mpps
|
|
MAC Address Table
|
8K
|
|
Packet Buffer Memory
|
4.1 Mbit
|
|
Jumbo Frame
|
9 KB
|
|
