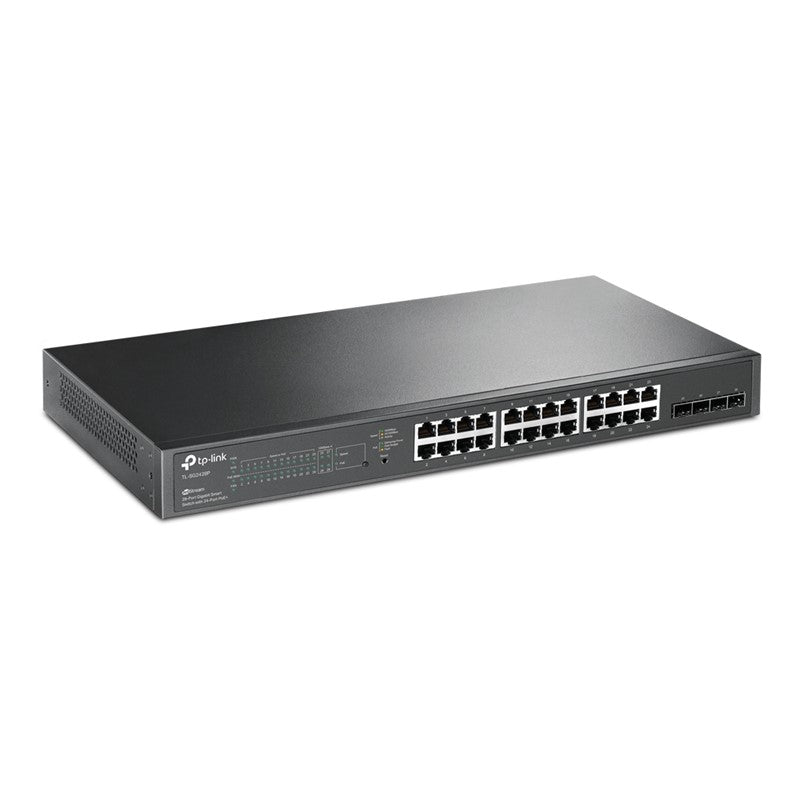

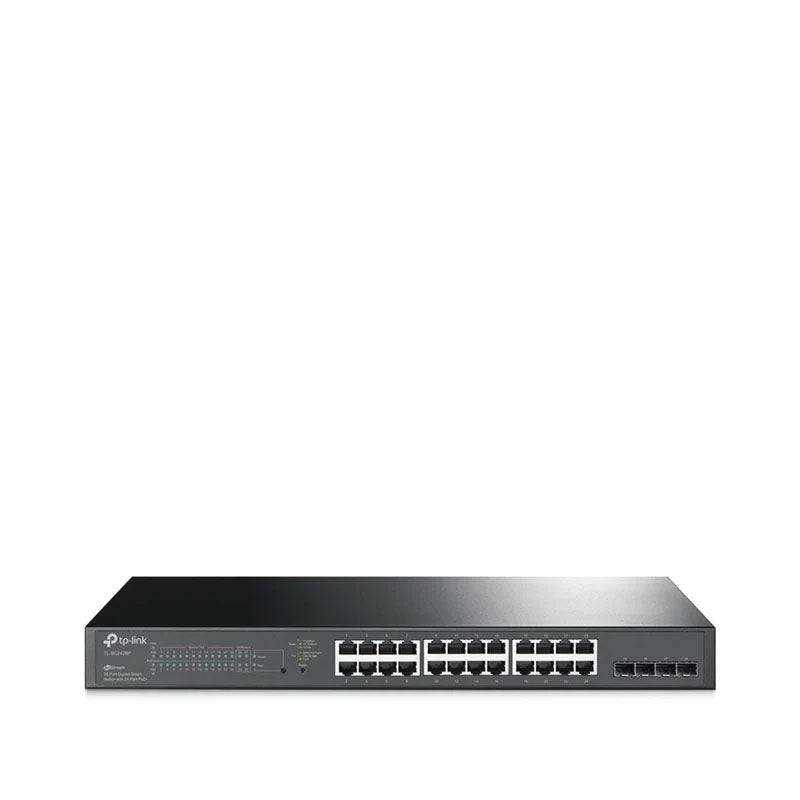

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch With 24-Port PoE+

Description

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch With 24-Port PoE+

250 W PoE Budget

24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W

Full Gigabit Ports

24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

Integrated into Omada SDN

Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

Centralized Management

Cloud access and Omada app for ultra convenience and easy management.

Static Routing

Helps route internal traffic for more efficient use of network resources.

Robust Security Strategies

IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

Optimize Voice and Video Applications:

L2/L3/L4 QoS and IGMP snooping.

IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

Specification

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

Interface

• 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 4× Gigabit SFP Slots

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF

Fan Quantity

2

Power Supply

100-240V AC, 50/60Hz

PoE+ Ports(RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• Power Supply: 250 W

PoE Ports (RJ45)

• Standard: 802.3at/af compliant
• PoE+ Ports: 24 Ports
• PoE Power Budget: 250 W*

Dimensions ( W x D x H )

17.3 × 8.7 × 1.73 in
(440 × 220 × 44 mm)

Mounting

19" 1U rack mountable

Max Power Consumption

• 32.1 W (with no power device connected)
• 308.6 W (with 250W power device connected)

Max Heat Dissipation

• 109.5 BTU/h (with no PD connected)
• 1,052.9 BTU/h (with 250 W PD connected)

Performance

Switching Capacity

56 Gbps

Bandwidth/Backplane

56 Gbps

Packet Forwarding Rate

41.7 Mpps

MAC Address Table

8K

Packet Buffer Memory

4.1 Mbit

Jumbo Frame

9 KB

TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch With 24-Port PoE+

Product form

78.000 KD

    • Guaranteed secure & safe checkout.

    Description

    TP-Link TL-SG2428P JetStream 28-Port Gigabit Smart Switch With 24-Port PoE+

    250 W PoE Budget

    24× 802.3at/af-compliant PoE+ ports with a total power supply of 250 W

    Full Gigabit Ports

    24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.

    Integrated into Omada SDN

    Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.

    Centralized Management

    Cloud access and Omada app for ultra convenience and easy management.

    Static Routing

    Helps route internal traffic for more efficient use of network resources.

    Robust Security Strategies

    IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.

    Optimize Voice and Video Applications:

    L2/L3/L4 QoS and IGMP snooping.

    IPv6: IPv6 support with dual IPv4/IPv6 stack, MLD snooping, IPv6 neighbor discovery.

    Specification

    Standards and Protocols

    IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3az, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x

    Interface

    • 24× 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
    • 4× Gigabit SFP Slots

    Network Media

    • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    • 1000BASE-X: MMF, SMF

    Fan Quantity

    2

    Power Supply

    100-240V AC, 50/60Hz

    PoE+ Ports(RJ45)

    • Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports
    • Power Supply: 250 W

    PoE Ports (RJ45)

    • Standard: 802.3at/af compliant
    • PoE+ Ports: 24 Ports
    • PoE Power Budget: 250 W*

    Dimensions ( W x D x H )

    17.3 × 8.7 × 1.73 in
    (440 × 220 × 44 mm)

    Mounting

    19" 1U rack mountable

    Max Power Consumption

    • 32.1 W (with no power device connected)
    • 308.6 W (with 250W power device connected)

    Max Heat Dissipation

    • 109.5 BTU/h (with no PD connected)
    • 1,052.9 BTU/h (with 250 W PD connected)

    Performance

    Switching Capacity

    56 Gbps

    Bandwidth/Backplane

    56 Gbps

    Packet Forwarding Rate

    41.7 Mpps

    MAC Address Table

    8K

    Packet Buffer Memory

    4.1 Mbit

    Jumbo Frame

    9 KB
