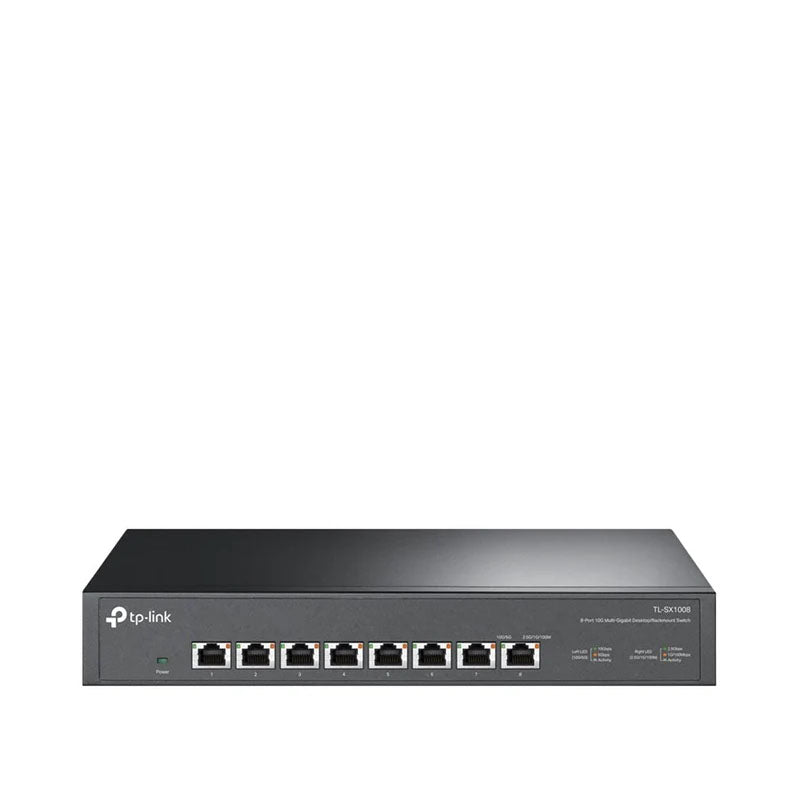

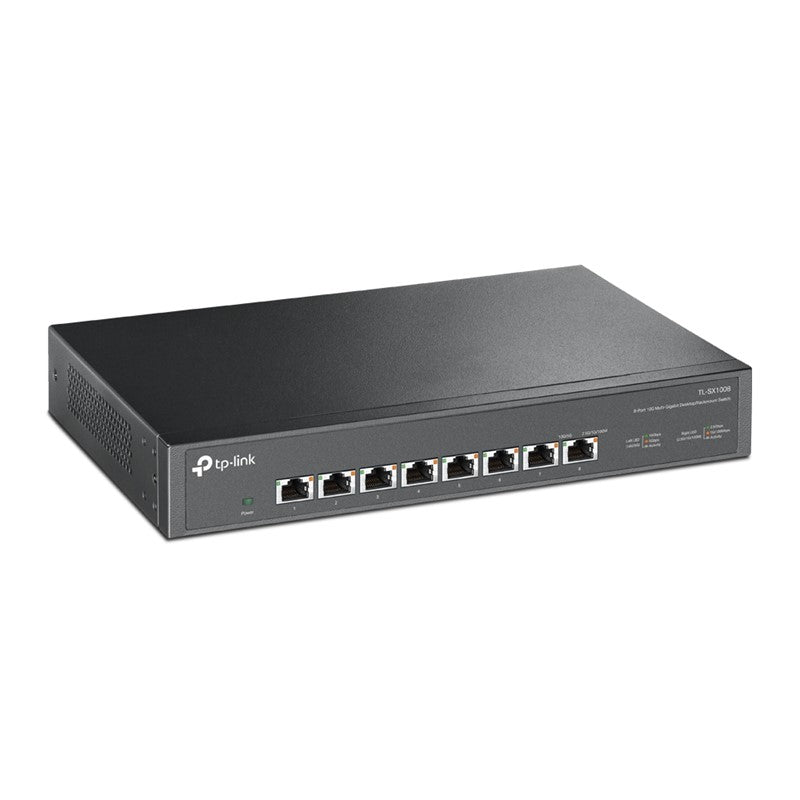

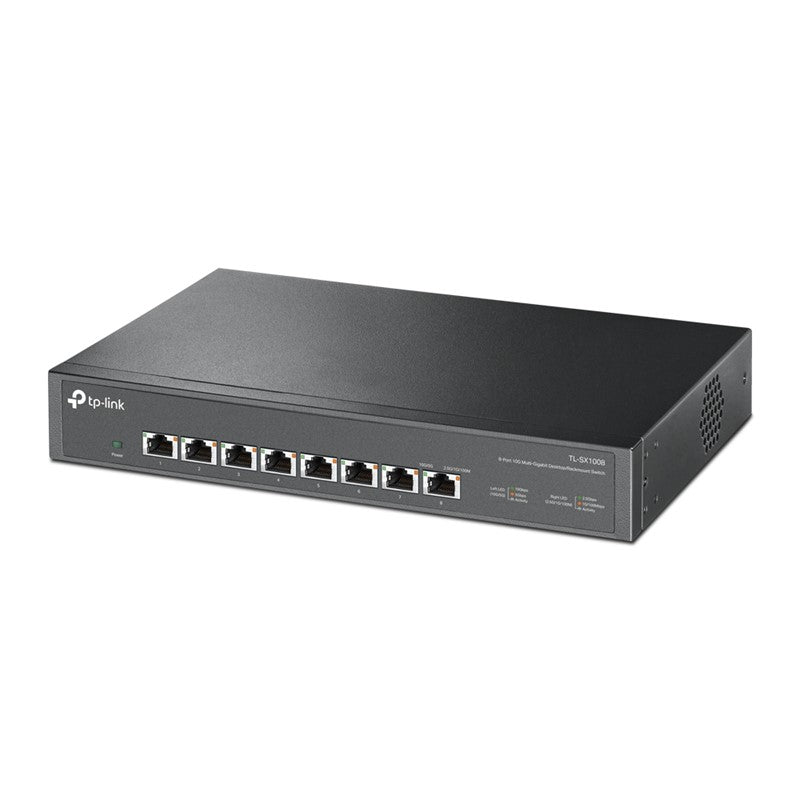

TP-Link TL-SX1008 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch


|
Eight 10 Gbps Ports
8×10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity
|

|
Ideal for Various Scenarios
Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
Optimal 5-Speed Connections
Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
|

|
Low-Noise Operation
Smart fan speed adjustment ensures minimal noise to be non-distracting when use.
Wide Operation Temperature
Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃).
|

|
Lightning-Fast Connections
Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
Plug and Play
Allows for easy deployment without the need for a technician.
|
Specifications:
|
Standards and Protocols
|
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
|
|
Interface
|
8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
|
|
Fan Quantity
|
1 smart fan with adjustable speed
|
|
External Power Supply
|
100–240 VAC, 50/60 Hz, 0.8A
|
|
LED Indicator
|
• System Power: 1
• Link/Act Indicators: 8, 1 indicator per port built into each RJ-45 port
|
|
Dimensions ( W x D x H )
|
11.6×7.1×1.7 in
(294×180×44 mm)
|
|
Max Power Consumption
|
31.2 W
|
|
PERFORMANCE
|
|
Switching Capacity
|
160 Gbps
|
|
Packet Forwarding Rate
|
119.0 Mpps
|
|
MAC Address Table
|
32 K
|
|
Packet Buffer Memory
|
2 Mb
|
|
Jumbo Frame
|
10 KB
|
|
