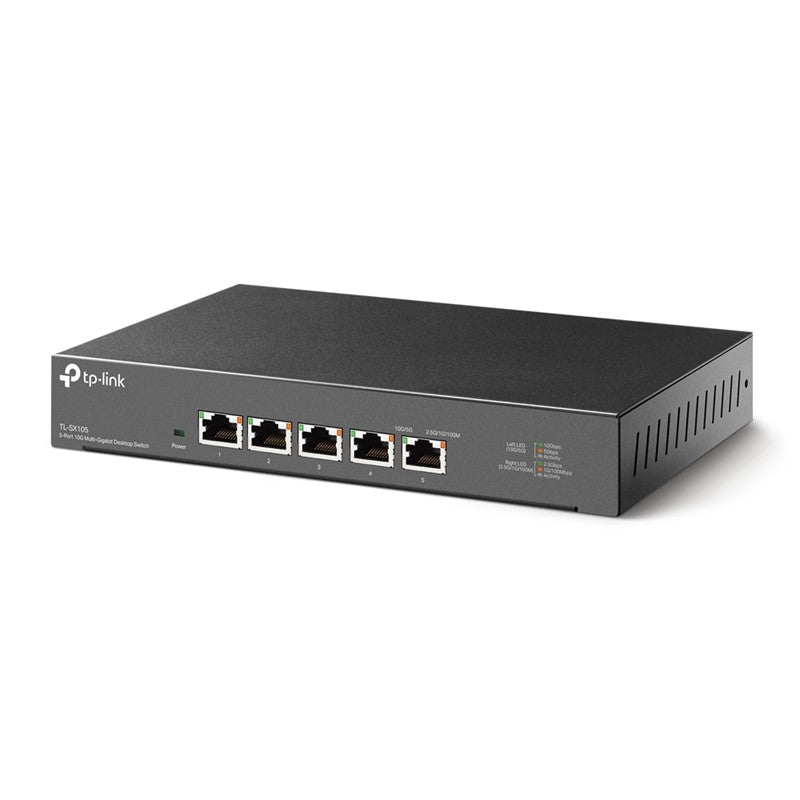

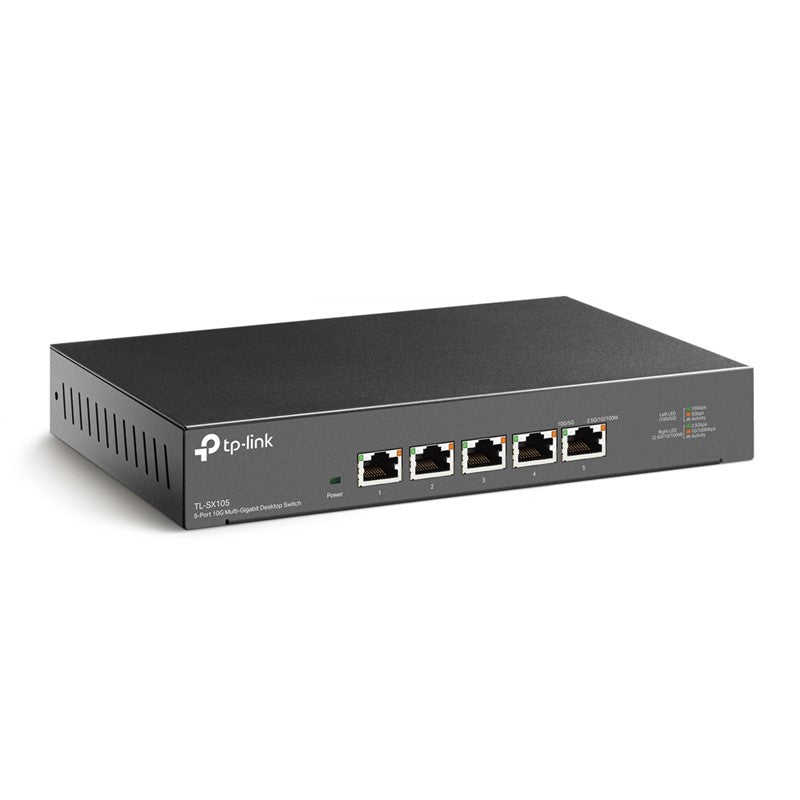

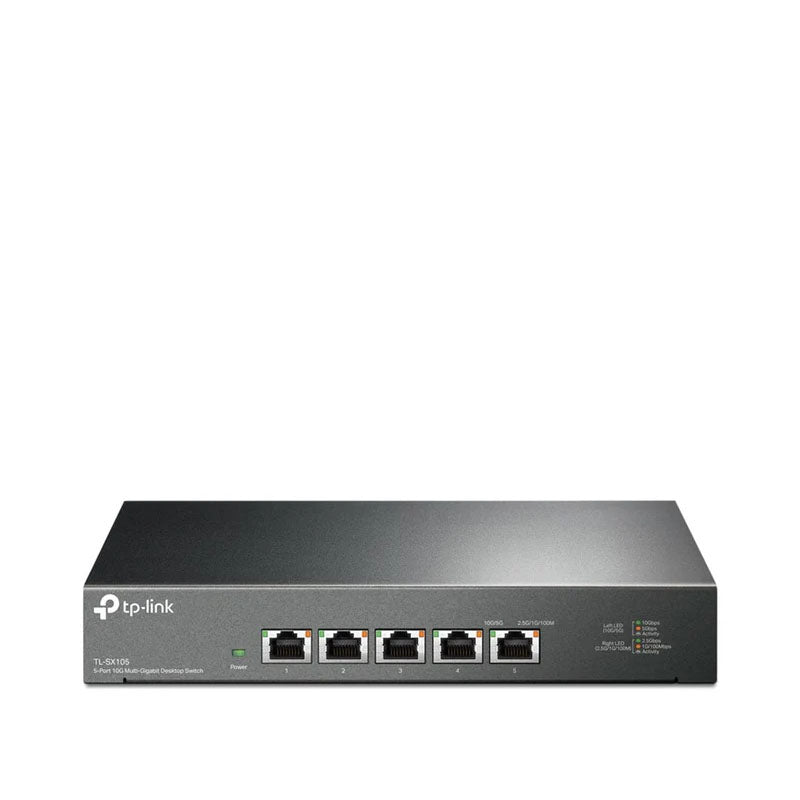

TP-Link TL-SX105 5-Port 10G Multi-Gigabit Desktop Switch
|
Five 10 Gbps Ports
5× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 100 Gbps of switching capacity.
Lightning-Fast Connections
Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
|
|
Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices
As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity.
Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices
|
|
Silent Operation with Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
|
|
Unlock the Real WiFi 6
The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.
Instant Transfer for Workstations
Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
|
Specifications:
|
Standards and Protocols
|
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz
|
|
Interface
|
5× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
|
|
Fan Quantity
|
Fanless
|
|

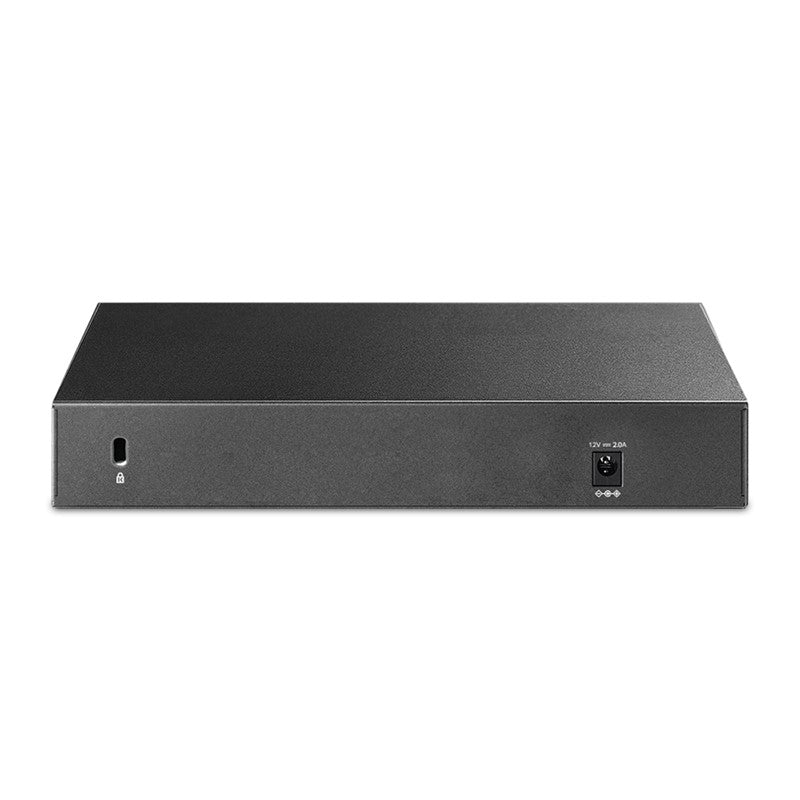

External Power Supply
|
External Power Adapter (Output: 12 VDC / 2.0 A)
|
|
LED Indicator
|
• System Power: 1
• Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
|
|
Dimensions ( W x D x H )
|
8.9×5.2×1.4 in (226×131×35 mm)
|
|
Max Power Consumption
|
21.4 W
|
|
Performance
|
|
Switching Capacity
|
100 Gbps
|
|
Packet Forwarding Rate
|
74.4 Mpps
|
|
MAC Address Table
|
32 K
|
|
Packet Buffer Memory
|
2 Mb
|
|
Jumbo Frame
|
10 KB
|
|
