Model No
|

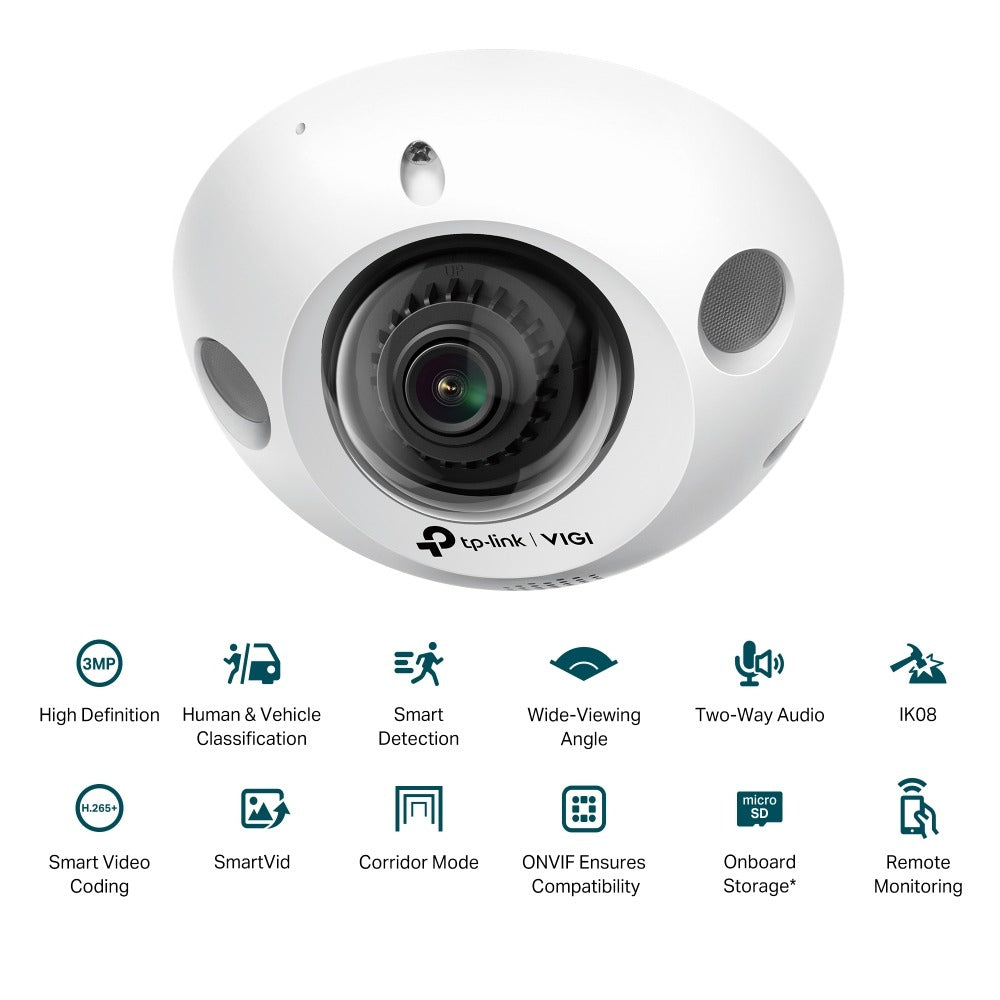

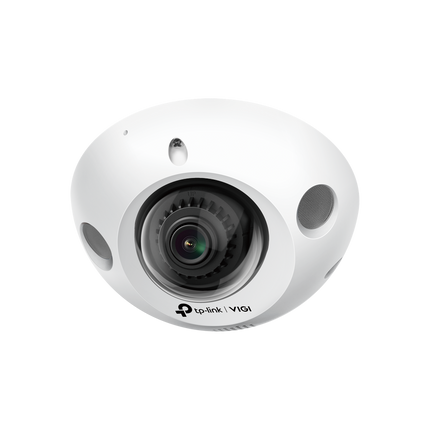

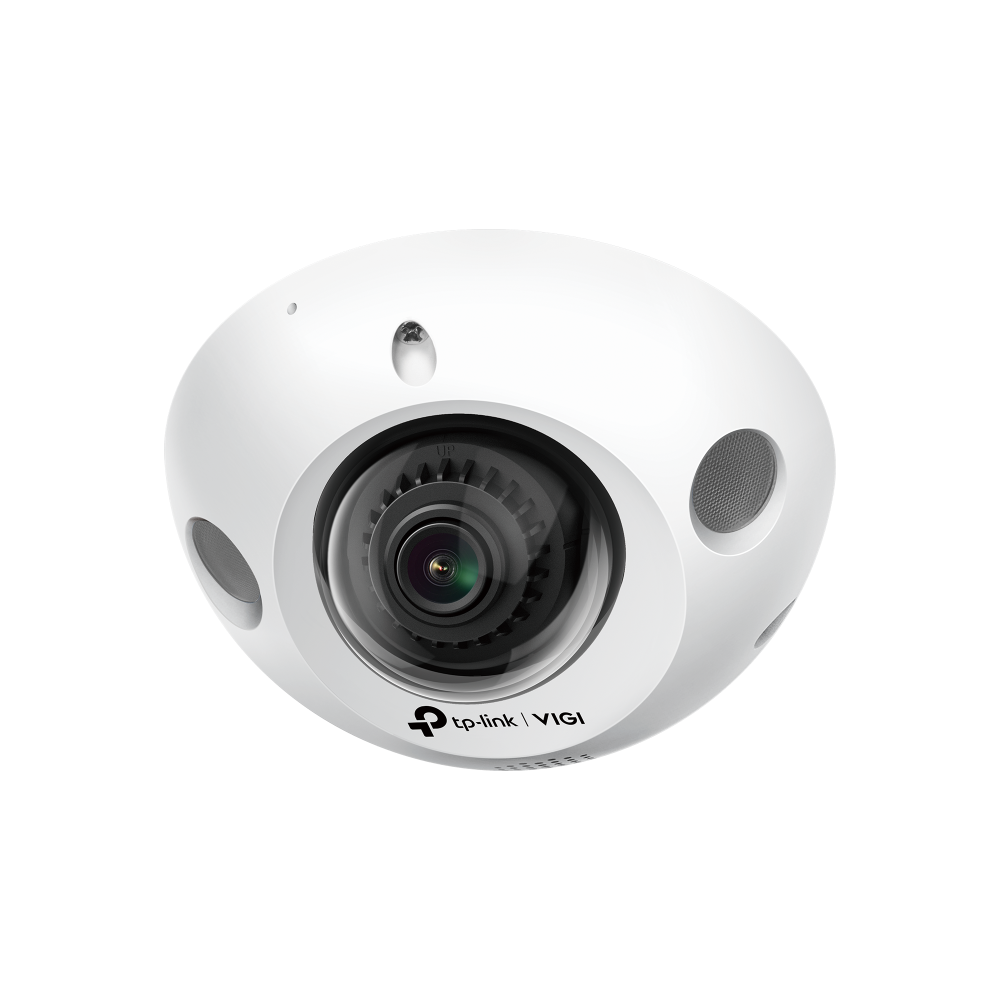

TP-Link VIGI C230I Mini 3MP IR Mini Dome Network Camera
|
|
Part No
|
VIGI C230I Mini(2.8mm)
|
|
Color
|
White
|
|
Image Sensor
|
1/2.8” Progressive Scan CMOS
|
|
Shutter Speed
|
1/3 to 1/10000 s
|
|
Slow Shutter
|
Yes
|
|
Aperture
|
F1.6
|
|
Lens
|
2.8 mm
|
|
Lens Mount
|
M12
|
|
Minimum Illumination
|
Color: 0.1 Lux; 0 Lux with IR
|
|
Day/Night Mechanism
|
IR Cut Filter
|
|
Day/Night Switch
|
Unified/ Scheduled/ Auto
|
|
Digital Noise Reduction
|
3D DNR
|
|
WDR
|
DWDR
|
|
IR Working Distance
|
30m
|
|

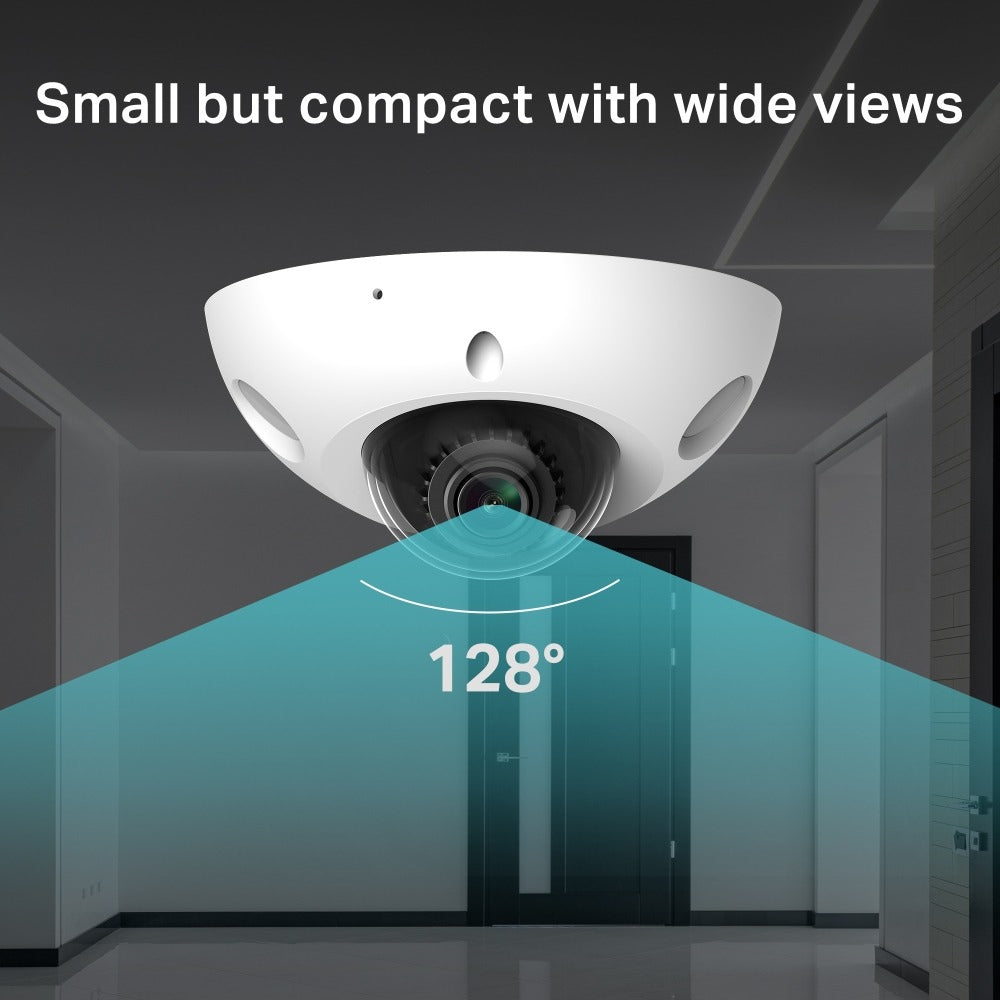

Viewing Angle
|
Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
|
|
Type
|
Fixed Focal Lens
|
|
Focal Length
|
2.8 mm
|
|
Aperture
|
F1.6
|
|
FOV
|
2.8mm: Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°
|
|
Lens Mount
|
M12
|
|
DORI Distance
|
2.8mm ;
Detect: 49 m (161 ft)
Observe: 20 m (67 ft)
Recognize: 10 m (32 ft)
Identify: 5 m (16 ft)
|
|
Range
|
Pan: -30° to 30°
Tilt: 0° to 85°
Rotate: -15° to 15°
|
|
IR LED
|
Quantity: 2
Range: 30m
Wavelength: 850nm
|
|
White LED
|
N/A
|
|
Illuminator On/Off Control
|
Auto/Scheduled/Always on/Always off
|
|
Max. Resolution
|
2304 × 1296
|
|
Main Stream
|
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
|
|
Sub-Stream
|
Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps
|
|
Audio Communication
|
Two-Way Audio
|
|
Audio Input
|
Yes
|
|
Audio Output
|
Yes
|
|
Audio Compression
|
Yes
|
|
Audio Sampling Rate
|
8KHz
|
|
Environment Noise Filtering
|
Yes
|
|
Audio Bit Rate
|
64 Kbps(G.711 alaw)
|
|
Protocol
|
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
|
|
ONVIF
|
Yes
|
|
API
|
ONVIF
|
|
Simultaneous Live View
|
3 Main Streams & 3 Sub-Streams
|
|
Client
|
VIGI App, VIGI Security Manager, VIGI NVR, Web
|
|
Web Browser
|
Open Network Video Interface (Profile S)
|
|
Cloud
|
Yes
|
|
Security
|
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
|
|

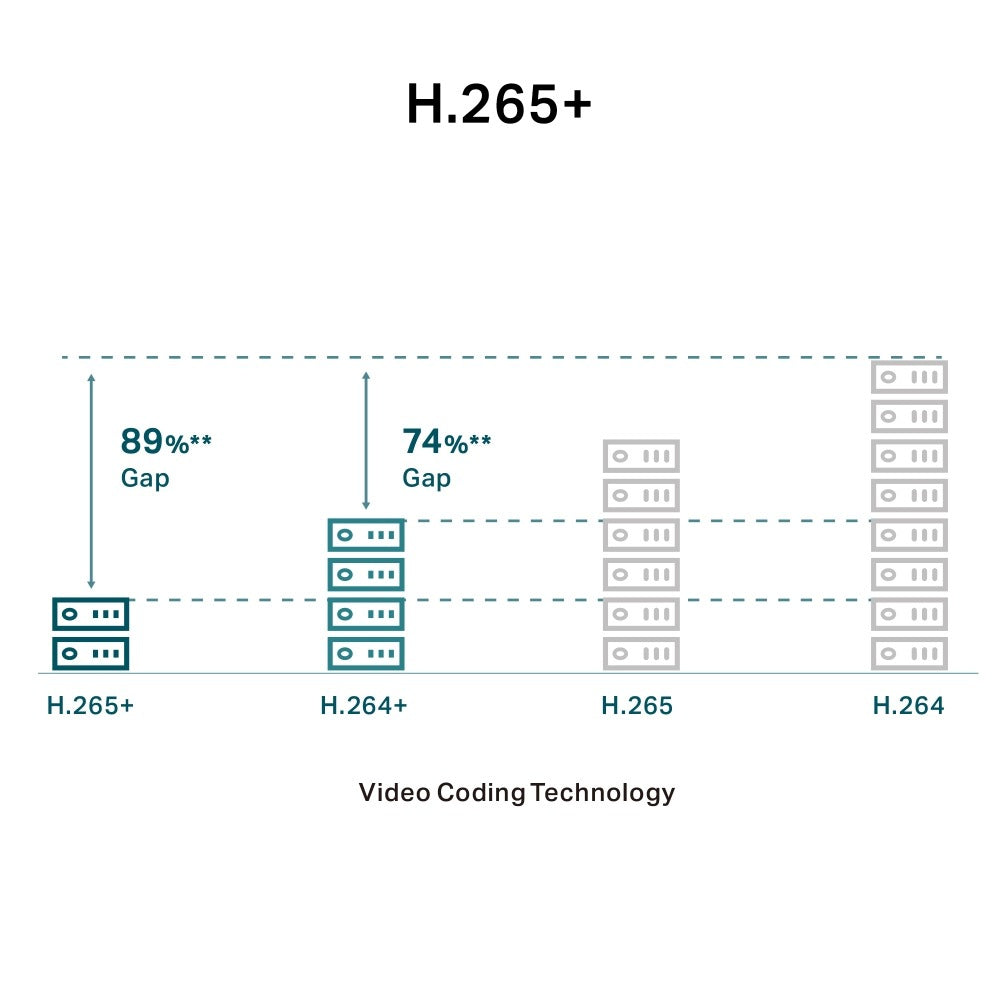

Video Compression
|
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
|
|
Frame Rate & Resolutions
|
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 704x576, 640x480, 352x288, 320x240
|
|
Max. Resolution
|
3MP (2304 × 1296)
|
|
Video Streaming
|
3 Main Streams
3 Sub-Streams
|
|
Image Settings
|
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
|
|
Image Enhancement
|
BLC/3D DNR/HLC/SmartIR
|
|
Video Bit Rate
|
64 Kbps to 4 Mbps
|
|
Day/Night Switch
|
Day/Night/Auto/Schedule
|
|
Operating Temperature
|
-30–60 °C
|
|
Storage Temperature
|
-40–60 °C
|
|
Operating Humidity
|
95% or Less (Non-Condensing)
|
|
Storage Humidity
|
95% or Less (Non-Condensing)
|
|
Package Contents
|
VIGI Network Camera
Quick Start Guide
Mounting Accessories
Mounting Template
|
|
Dimensions( H X W X D )
|
114 × 114 × 58 mm
|
|
Material
|
Plastic
|
|
General Features
|
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
|
|
Net Weight
|
0.23 kg
|
|
Gross Weight
|
0.41 kg
|
|
Power Consumption
|
12V DC: Max 7.5W
PoE: Class 0
|
|
Power Supply
|
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
|
|

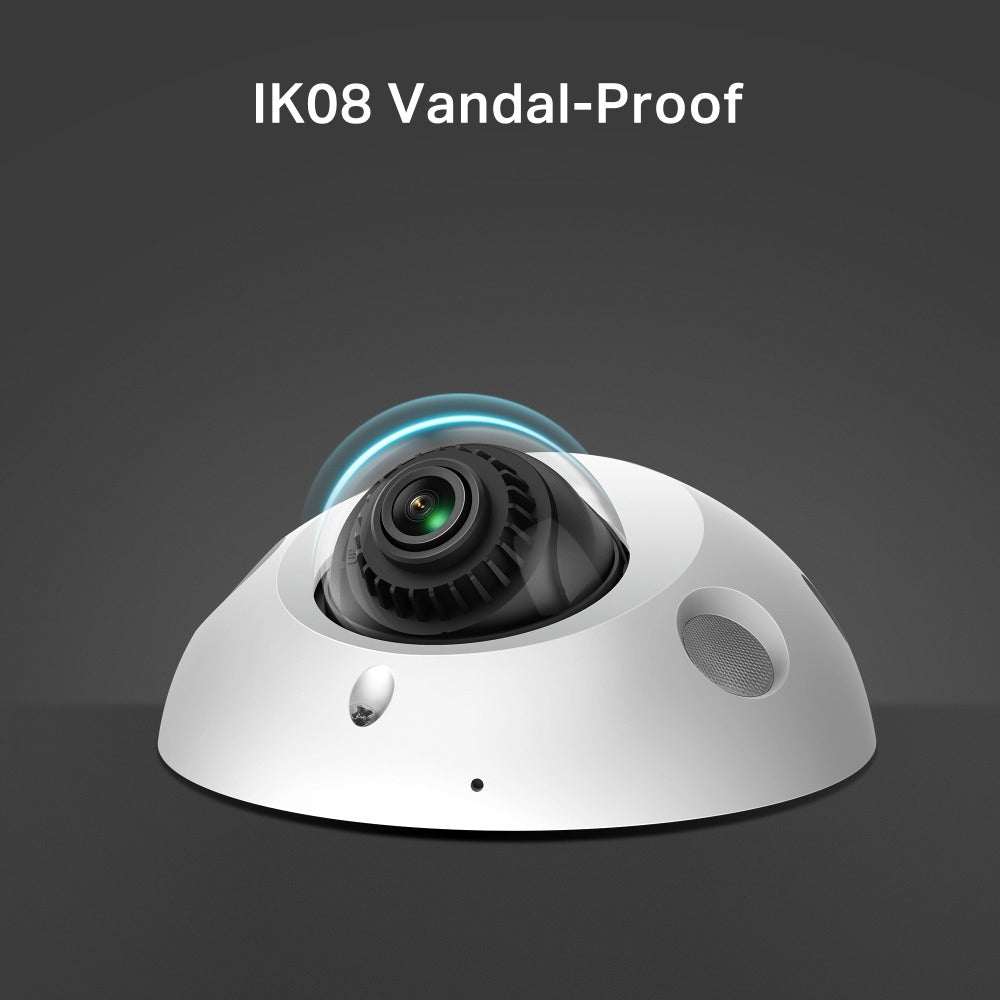

Vandal Resistant
|
IK08
|
|
Protection
|
IK08
|
|
Product Dimensions (L x W x H)
|
114× 58× 114 mm
|
|
Warranty
|
1 Year (As Per Manfucturer)
|
